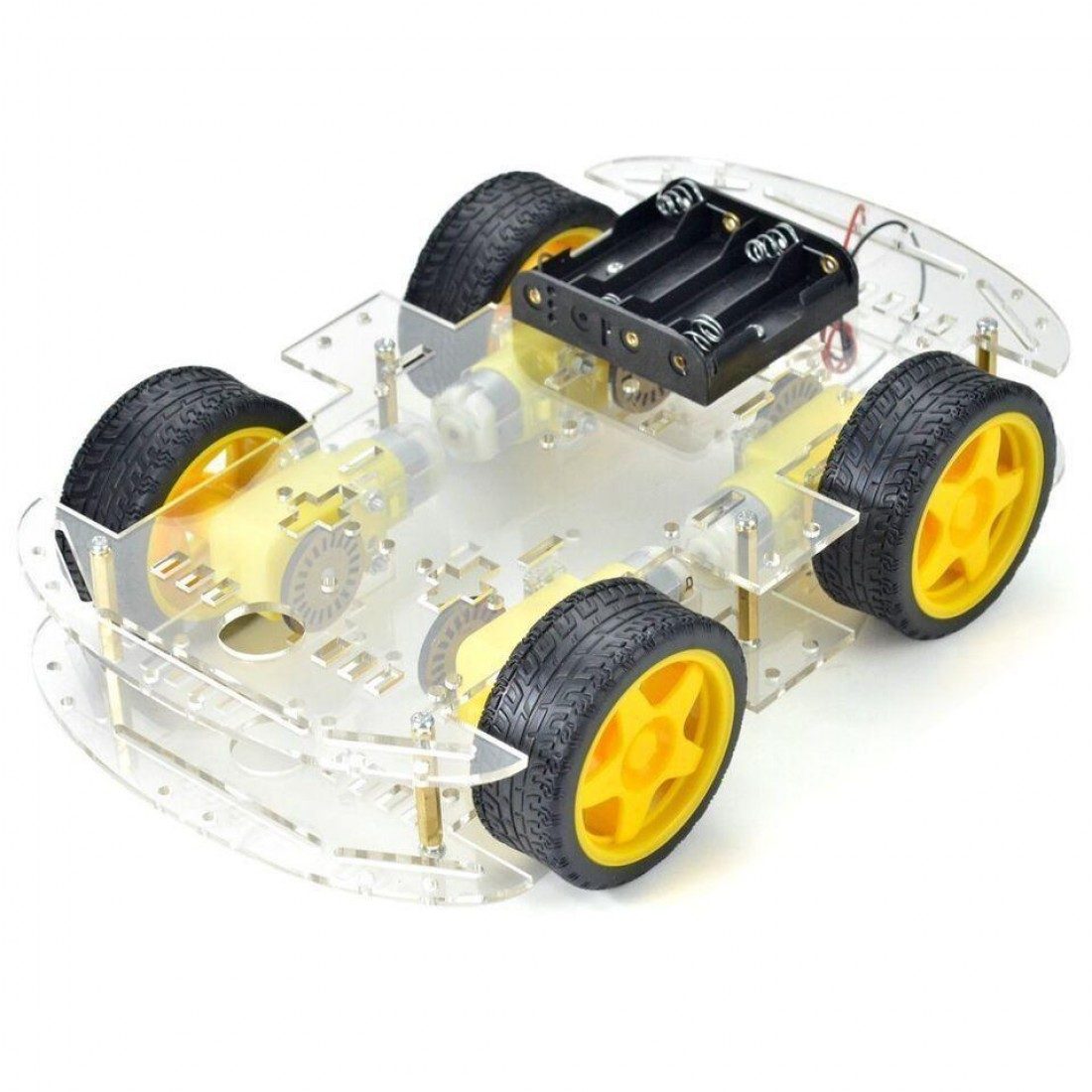

Longer version of 4WD Double Layer Smart Car Robot Chassis Kit

Longer version of 4WD Double Layer Smart Car Robot Chassis Kit with Speed Encoder is an ideal electronic toy for both kids and adults. The most economical and newest robot car kit with simple mechanical structure makes it easy to install and function well. Giving therein to your imagination with it and have fun!

4 Wheel Chassis Kit, an easy to assemble and use robot chassis platform. The Car Chassis kit provides you with everything you need to give your robot a fast four wheel drive platform with plenty of room for expansion to add various sensors and controllers.

Just add your electronics – Arduino/Raspberry Pi and Motor Driver and you can start programming your robot. It offers a large space with predrilled holes for mounting sensors and electronics as per your requirement. This robot chassis lets you get your mechanical platform ready in minutes and quick start your robot building process.

Wheeled Robots are most popular robot platforms and are easy to run, maintain and use. Simple to build and program, this kit is the simplest robot platform. Highly recommended for beginners and novice users. Building robots using this wheeled kit is fun and a great learning experience too. The 4WD Kit lets you go faster, carry more weight, and carry bigger load compared to the 2WD Kit. You can build line following robots, obstacle avoiding robots, and other robots using this kit.

Features :

• Very handy and simple in assembling/disassembling.
• Strong components so as to withstand extreme terrain conditions.
• Transparent Car Chassis.
• Attractive design.
• Double layer structure, much of mounting holes, enough space
• Easy to install a variety of control panels, sensors
• Simple mechanical structure, easy for installation.
• Adopts 4 DC motors for better power, speed and load capacity
• Easy interface with Arduino development platform
• Enormous space between middle & bottom chassis
• This kit is great for DIY Learning, Academic Research, Hobby Projects and Robot Competitions

Specifications:

• Product Name: BO Motor
• Operating Voltage(VDC): 3-6V
• Gear Ratio: 0.075
• No-load speed(5V): about 200 RPM
• Rated Torque: 0.8 Kg.cm @ 5V
• Load current: 170mA (when it is 4.5V)
• Shaft Length: 10 mm
• Shaft Type: 6 mm, Double-D
• Size: 70 x 23  x 18 mm
• Weight: 28g
• Product Name: BO Wheel
• Loading Capacity: Max 2.5Kg
• Double D hole For BO Motor: 6 mm
• Wheel Diameter: 65 mm
• Color: Black (Tyre), Yellow (Rim)
• Wheel Width: 27 mm
• Body Material: Plastic
• Grip Material: Rubber
• Weight: 34g

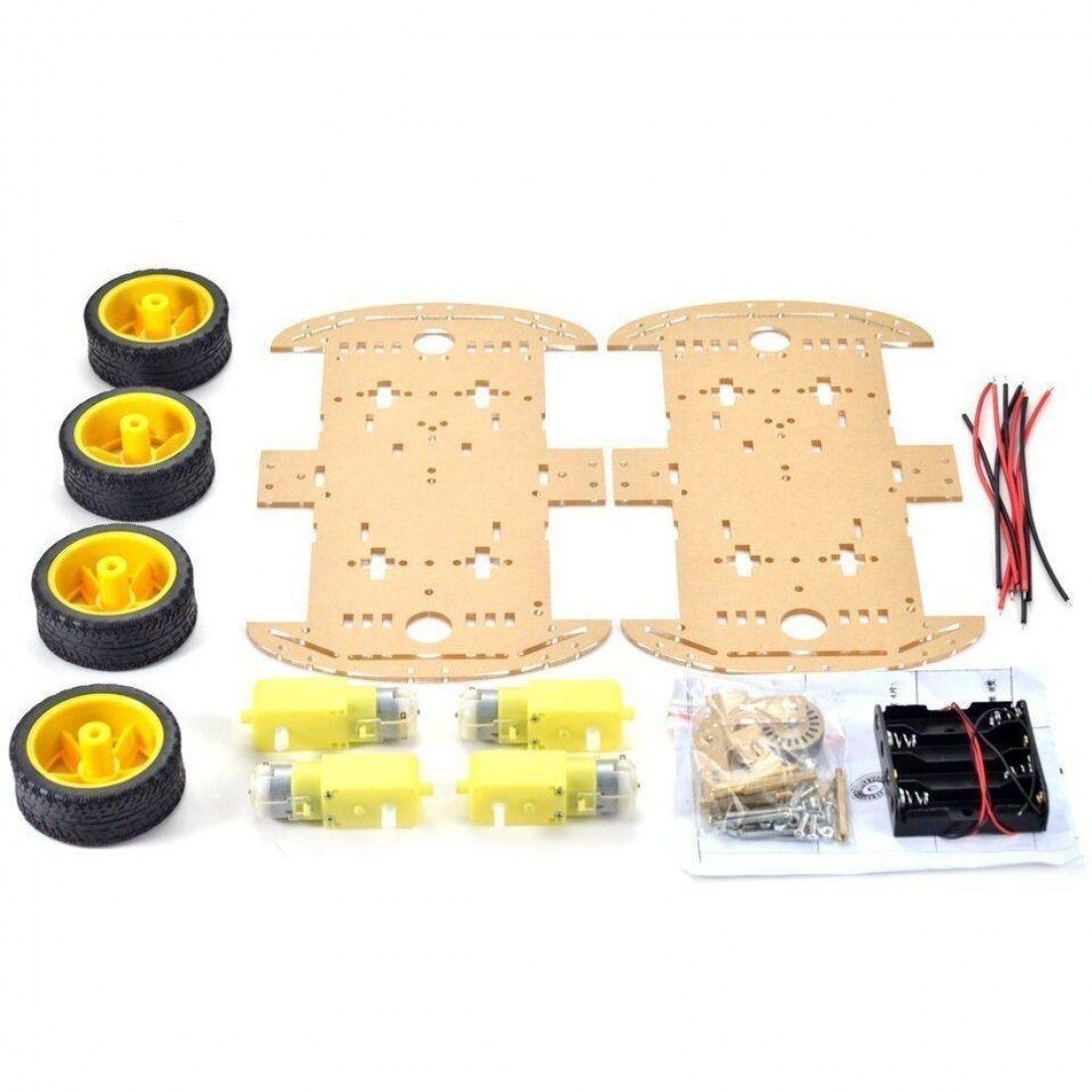

Package includes:

• 2 x Acrylic Transparent car floor

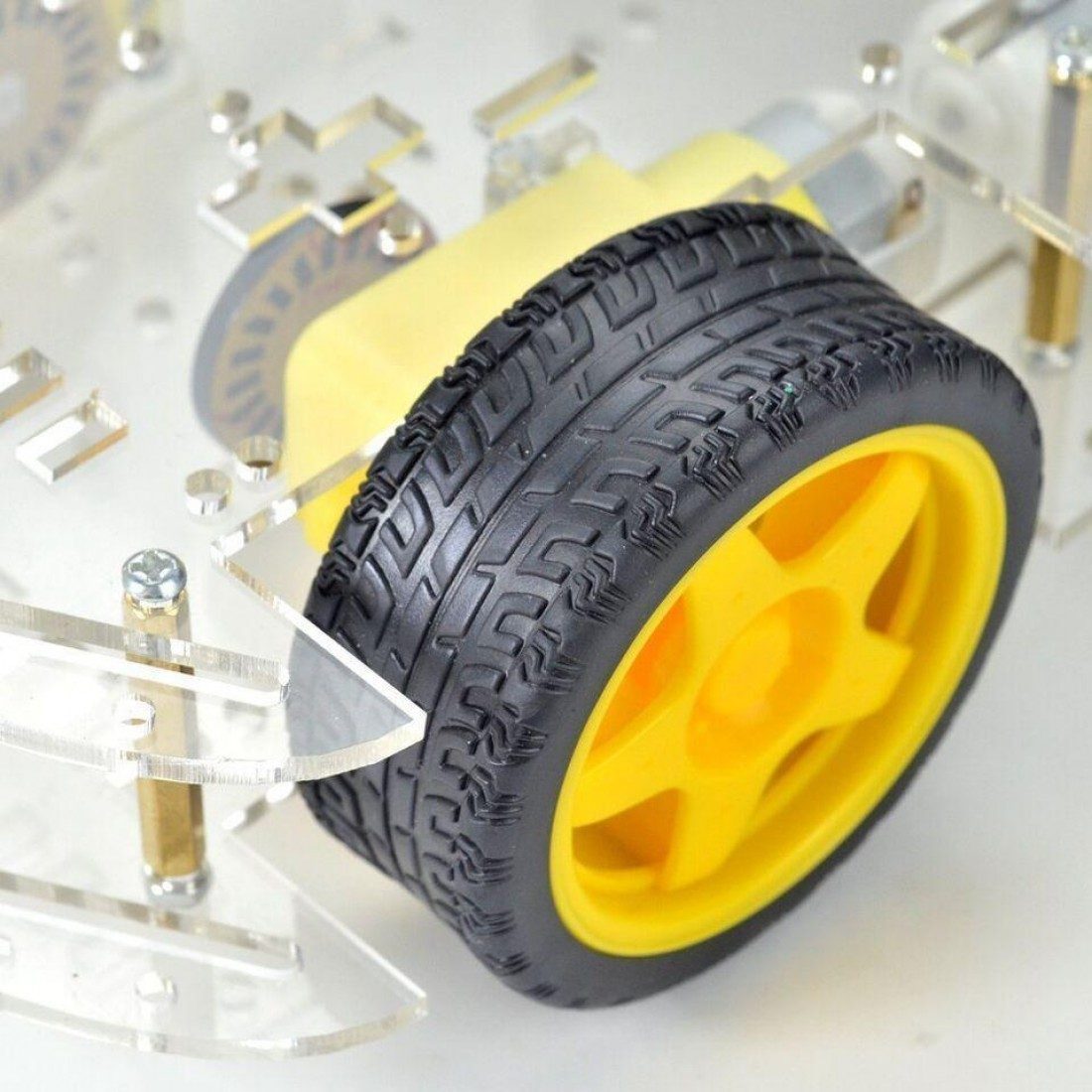

• 4 x High-Quality 65-mm Plastic wheels with Rubber Grip
• 4 x Dual shaft 200 RPM BO Gear Motor
• 4 x Coded Disk
• 8 x Acrylic Fasteners

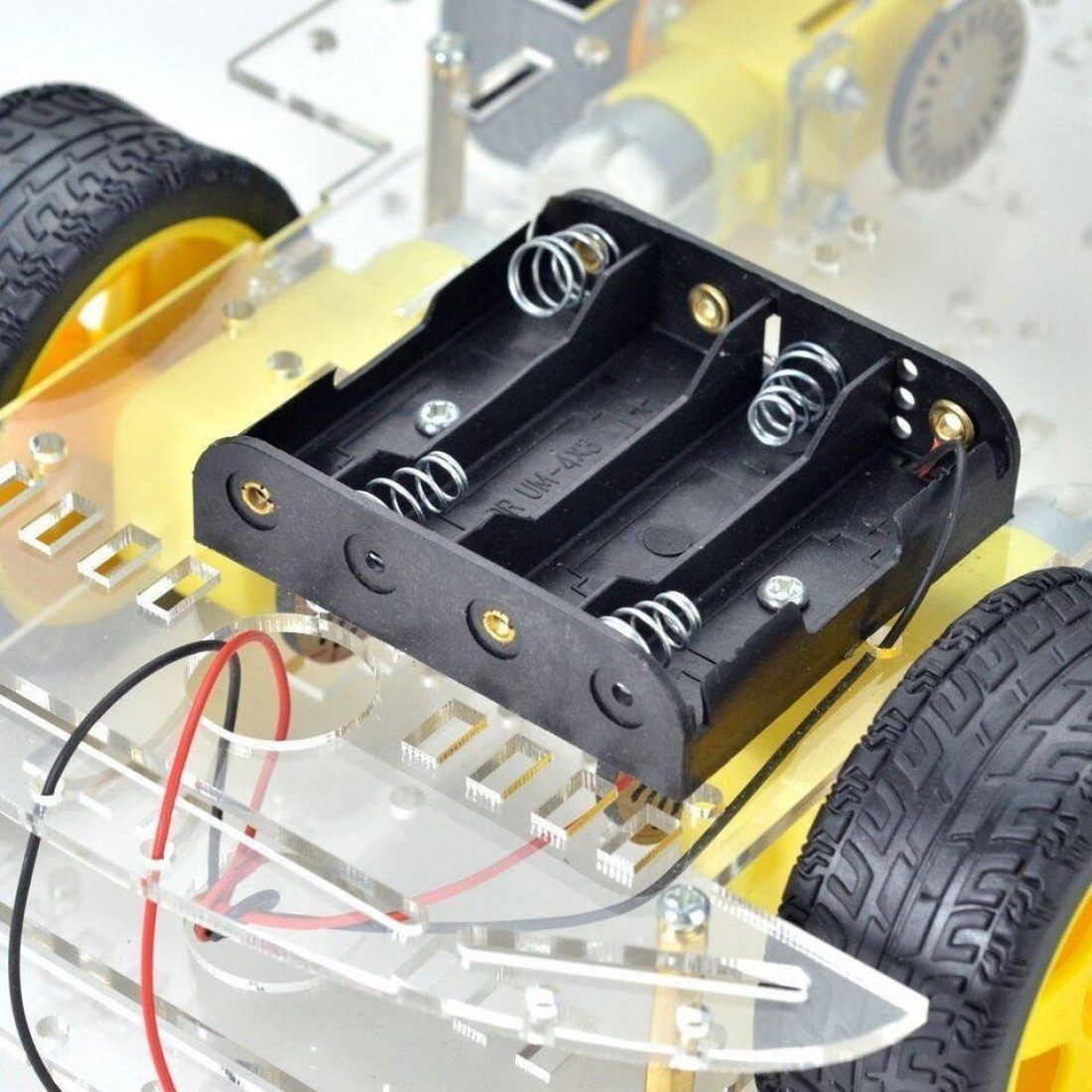

• 1 x 4-AAA Battery Holder
• 6 x Connecting Cable(Red and Black)
• 6 x M3 Copper Stand-Off (Male-Female)
• 6 x M3 Cross-Head Bolt (Length: 8 mm )
• 8 x M3 Cross-Head Bolt (Length: 30 mm )
• 16 x M3 Nut
