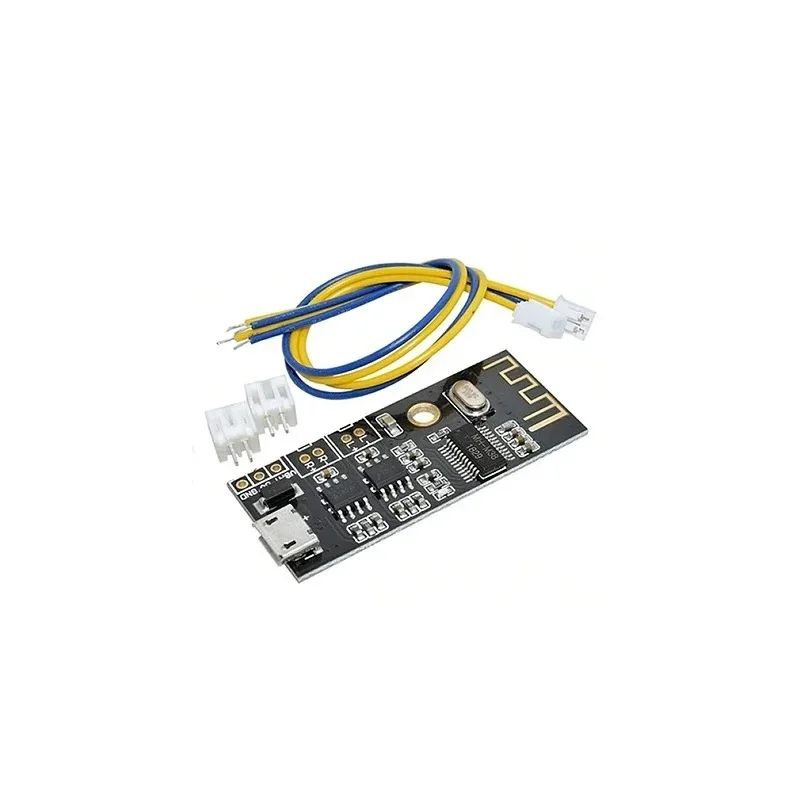

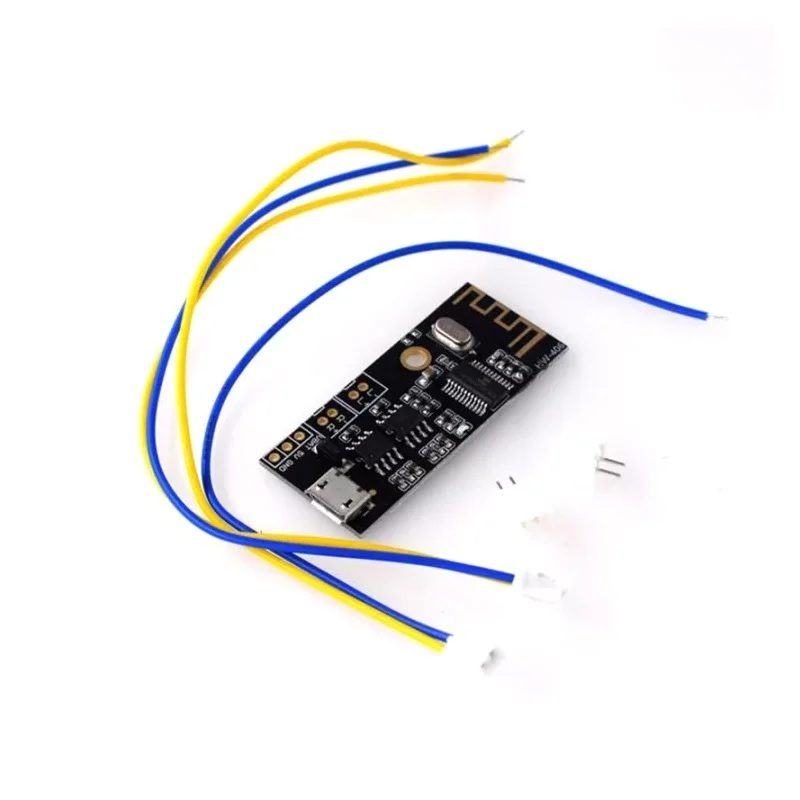

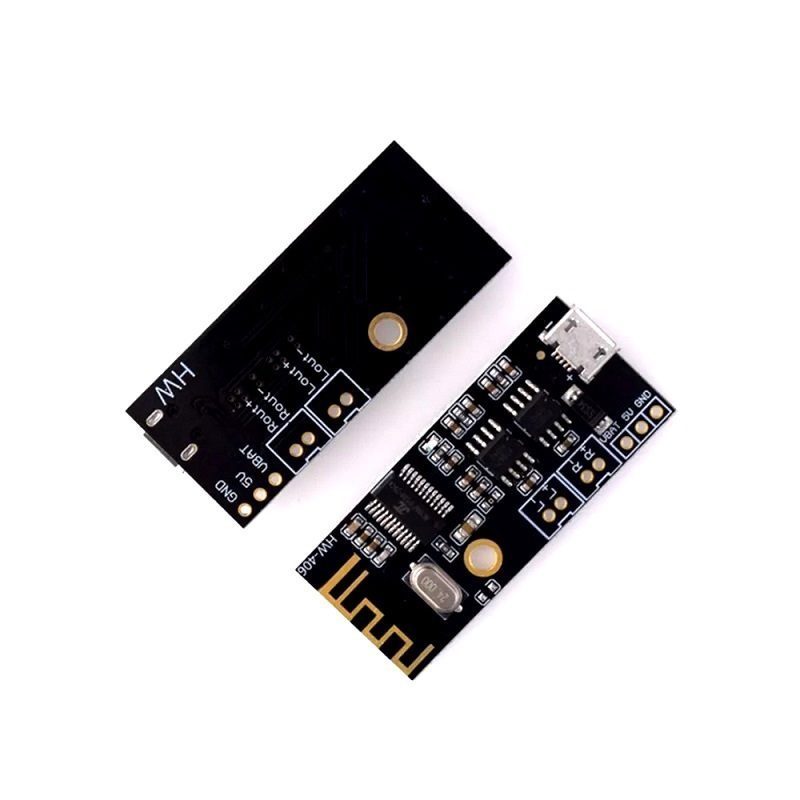

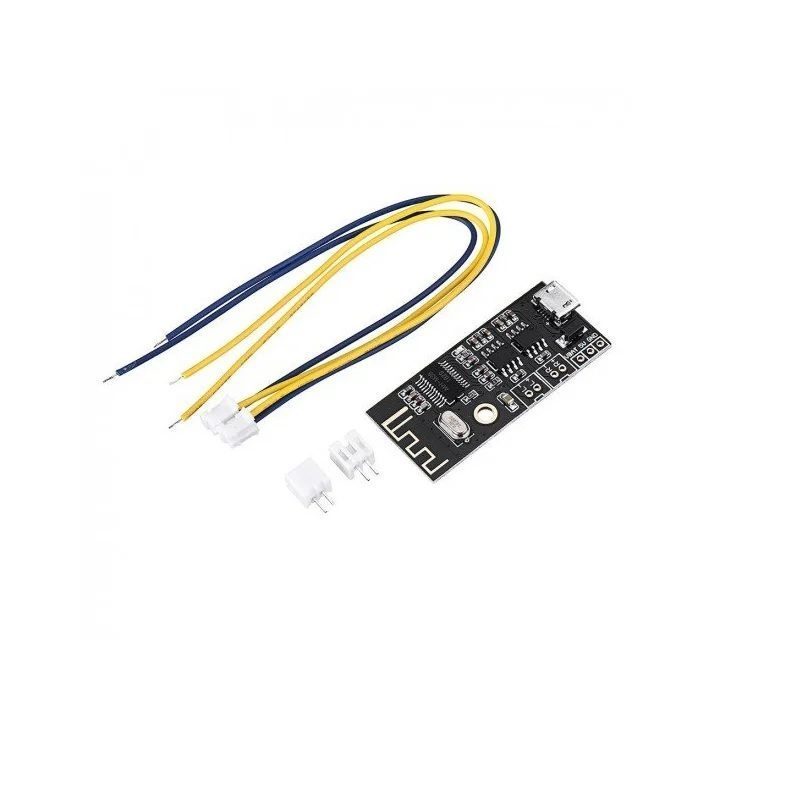

MH-M38 Wireless Bluetooth Audio Receiver Module with Cable

This MH-M38 Wireless Bluetooth Audio Receiver Module with Cable is a low-power Bluetooth design solution supports the latest Bluetooth 4.2 transmission, 2-channel stereo lossless playback, and the module can be connected to Bluetooth to quickly realize Bluetooth wireless transmission, which is very convenient.

In an open environment, the Bluetooth 4.2 connection distance can reach 20 meters. Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification.

After the module is powered on, the mobile phone searches for the Bluetooth name MH-M38, and can play music after connecting Bluetooth.

Module blue indicator light:

• When the Bluetooth is not connected, the indicator light flashes quickly;
• When the Bluetooth connection is on, the indicator light is always on;
• When the Bluetooth is playing, the indicator light flashes slowly.

Features:

• Bluetooth V4.2 version, support Bluetooth automatic connection technology,
• Support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.

Specifications:

• Bluetooth version: V4.2
• Bluetooth support protocol: HFPV1.7 ، A2DPV1.2 ، AVRCPV1.5 ، AVCTPV1.2 ، AVDTPV1.2
• Support form Support: WAV / WMA / FLAC / APE / MP3 decoding, stereo two-channel output
• Operating voltage: 5V / 3.7V-4.2V
• Broadcast is not connected to the case: 5.5MA
• The status of work contact: 20MA
• Deep Sleep: 3uA
• Wireless Range: 20 meters (empty or low interference environment)
• Operating temperature: -40 ° C to + 85 ° C
• Sensitivity: -87dbm
• Length (mm): 45
• Width (mm): 20
• Height (mm): 5
• Weight (gm): 7

Package Includes:

• 1 x MH-M38 Wireless Bluetooth Audio Receiver Module with Cable

Note:

• This Product is available in two different variants of IC (MH-M38 and JL AS208PO1429-25C4) with the same working we will ship it randomly.
