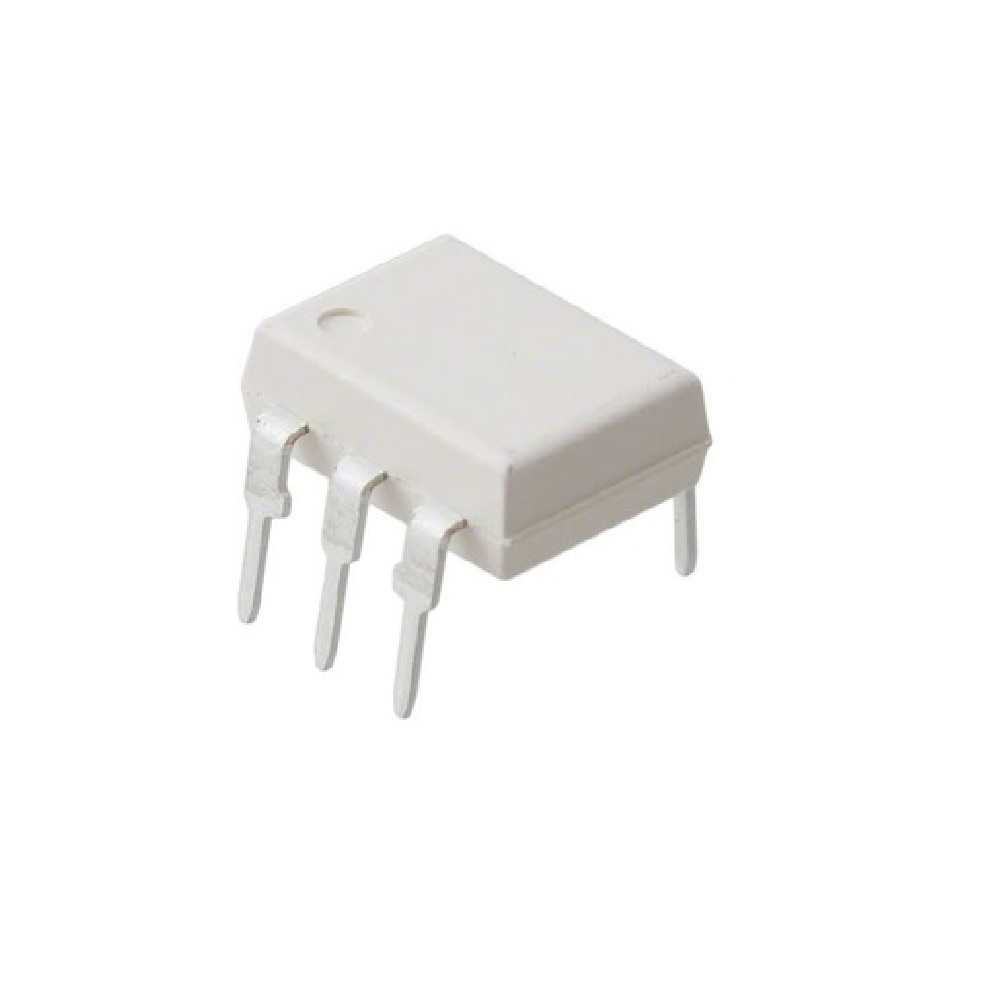

MOC3021 Optoisolator Triac Driver IC DIP-6

The MOC3021 Optoisolator Triac Driver IC DIP-6 is a widely used optoisolator with Triac driver output, designed for safe and reliable switching of AC loads. It features an infrared LED optically coupled to a light-activated triac in a compact 6-pin DIP package, enabling electrical isolation between low-voltage control circuitry and high-voltage AC circuits.

Ideal for applications such as solid-state relays, light dimmers, motor control, and AC load switching, the MOC3021 ensures low power consumption and excellent noise immunity. This device provides non-zero-crossing turn-on, allowing it to switch the load at any point in the AC cycle, making it suitable for phase control applications.

Features:

• Part Number: MOC3021
• Package Type: DIP-6
• Input Type: Infrared LED
• Output Type: Light-activated Triac
• Isolation Voltage: 5300 Vrms
• Triggering: Non-zero crossing
• Operating Voltage: Up to 400V AC load switching
• CTR (Current Transfer Ratio): Consistent and stable
• Low input drive current required
• High noise immunity

Applications:

• Solid-state relays (SSR)
• AC load switching
• Phase control applications
• Lamp and fan dimmers
• Motor speed control circuits
• Microcontroller interfacing with AC appliances
• Home automation and smart control systems

Package Includes:

• 1 x MOC3021 Triac Driver Optoisolator IC DIP-6

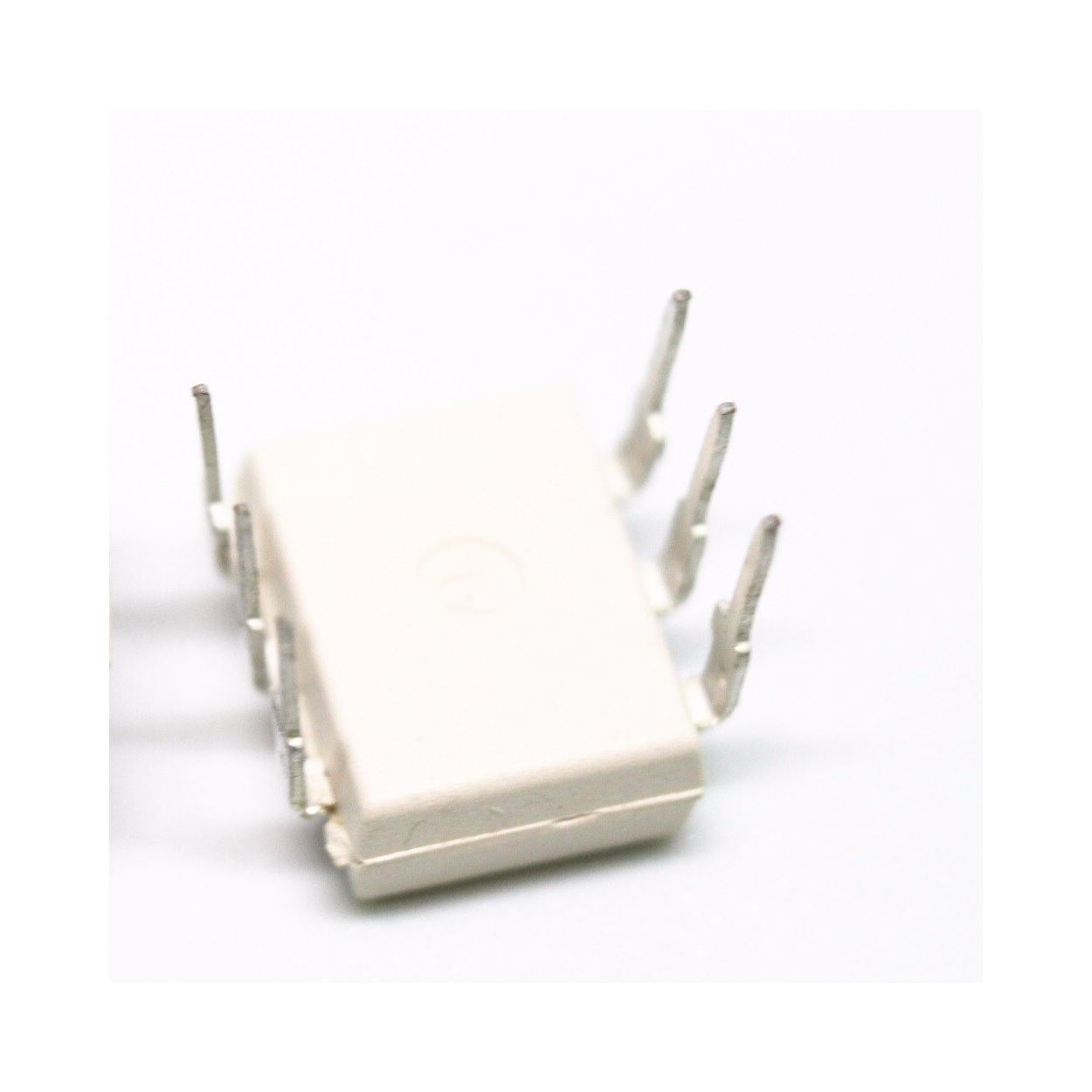

Note: Image is for reference only.
