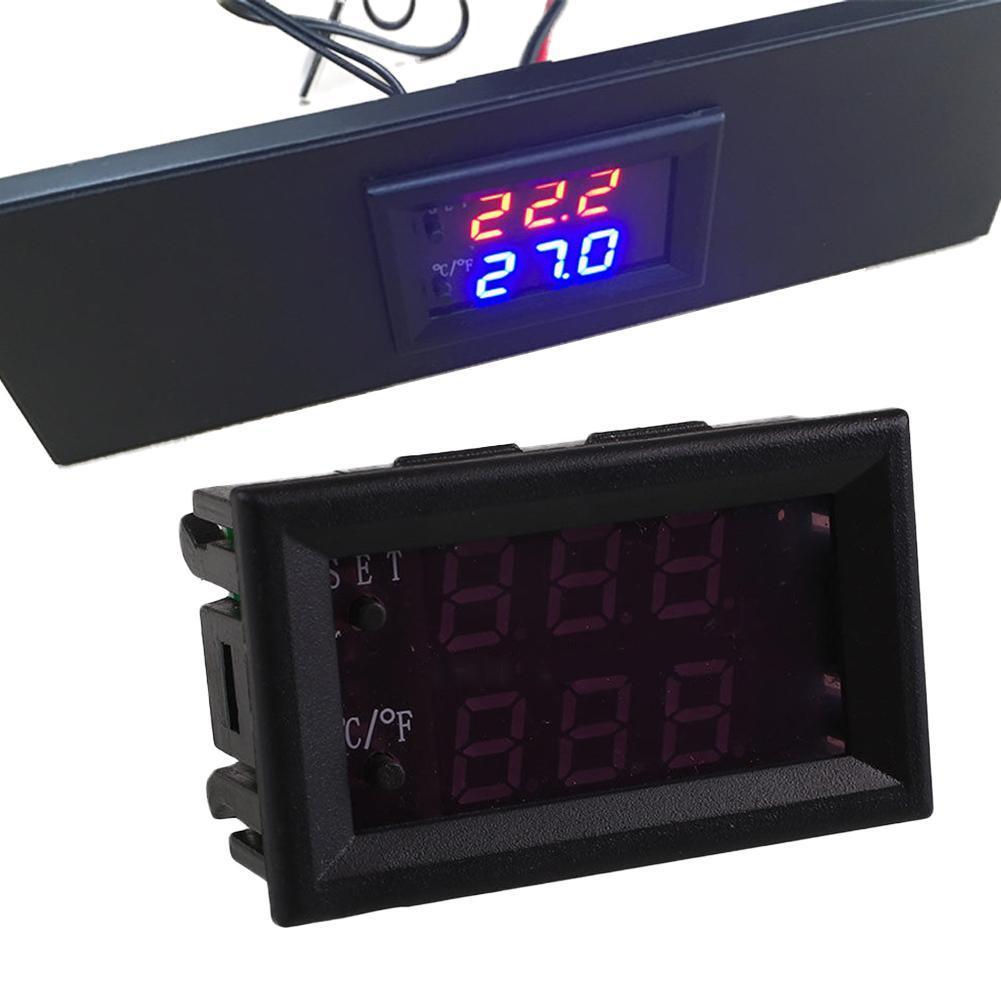

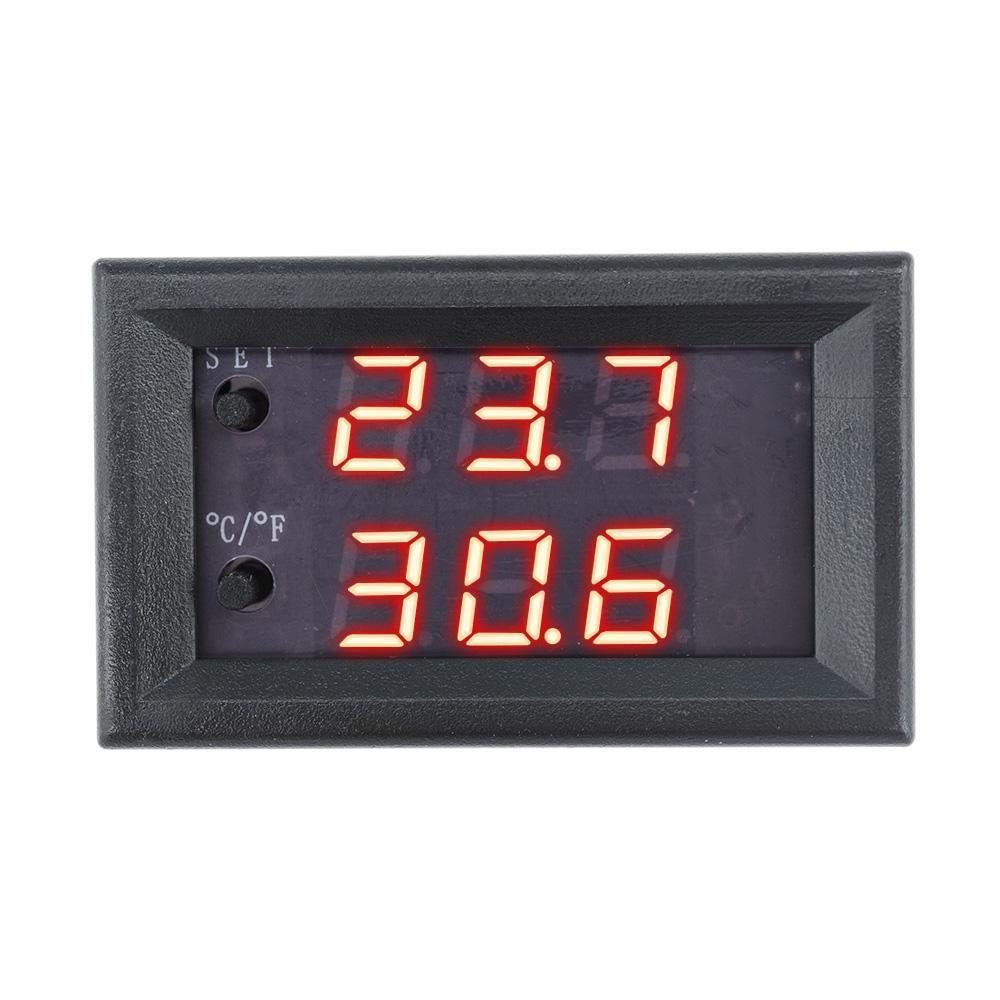

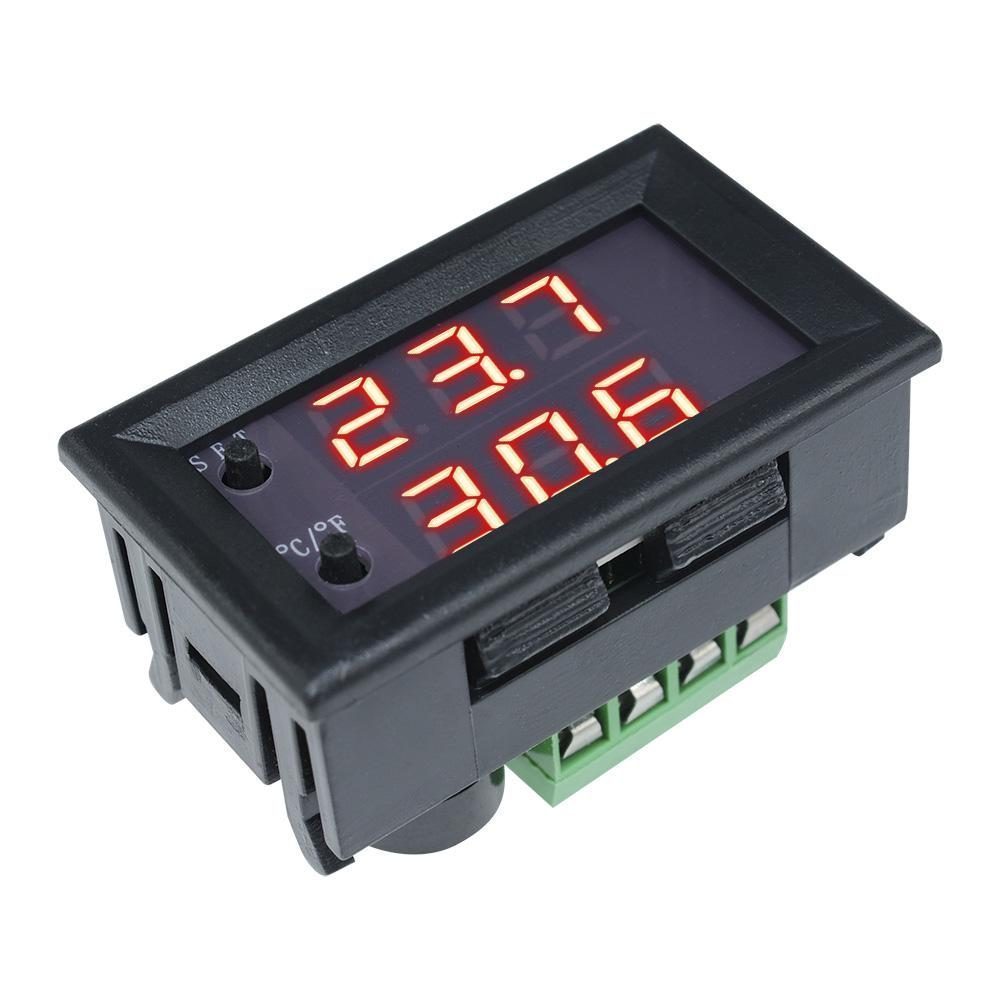

W1209WK DC12V LED Digital Thermostat Temperature Controller Regulator

W1209WK DC12V LED Digital Thermostat Temperature Controller Regulator is a temperature-controlled thermostat that can be used to control the heating/cooling of an object with the help of the NTC sensor to detect the temperature. The module is operated by the 12VDC connected at the input terminals. The module has one output ports where you can connect the equipment to heat or cool the test system.

Features:

• Mini temperature controller.

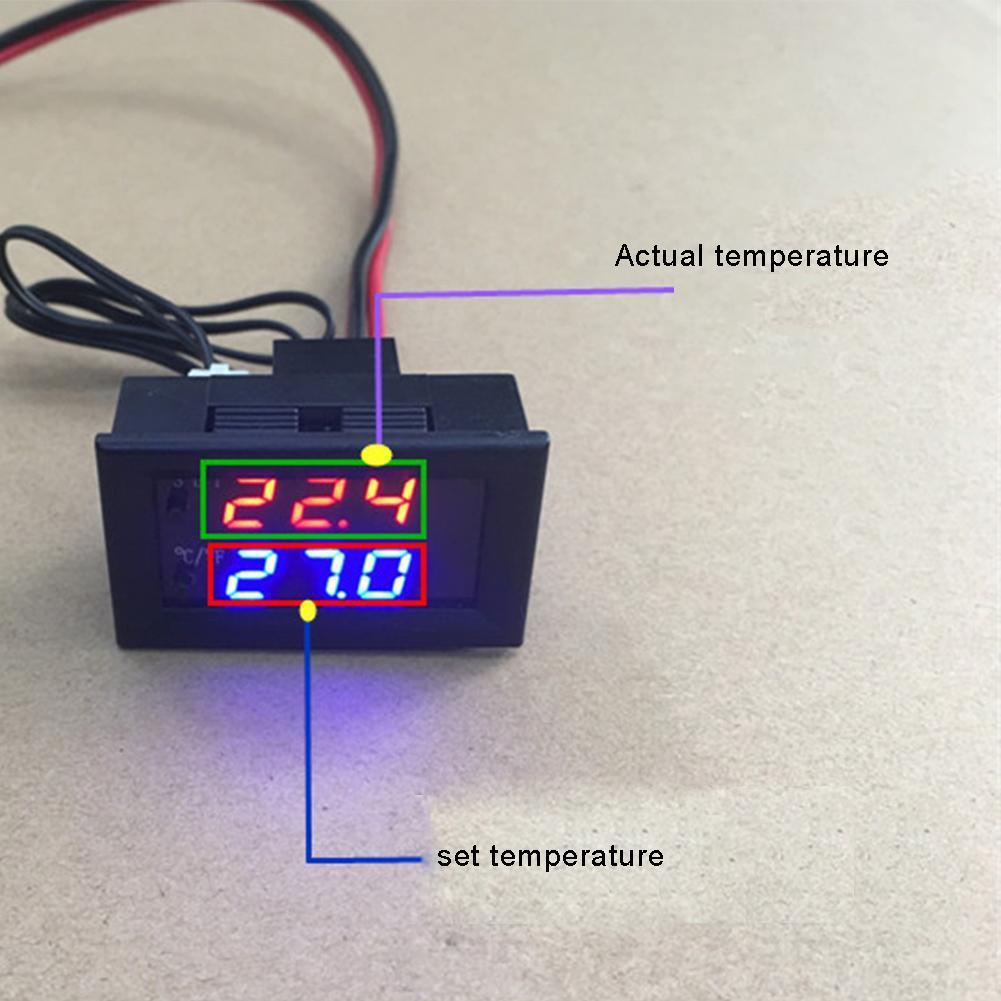

• With a clear LED display for better readability.
• Wide temperature measuring range.
• Automatic over-temperature alarm
• Relay output.
• High Control precision 0.1 centigrade

Specifications:

• Model: W1209WK
• Operating Voltage (VDC): 12
• Temperature Measuring Range: -50 to 110°C
• Relative Humidity: 20%-85%
• Refresh rate: 0.5s
• Accuracy: ± 0.1°C
• Return difference accuracy: ± 0.1°C
• High temperature protection: 0-110℃

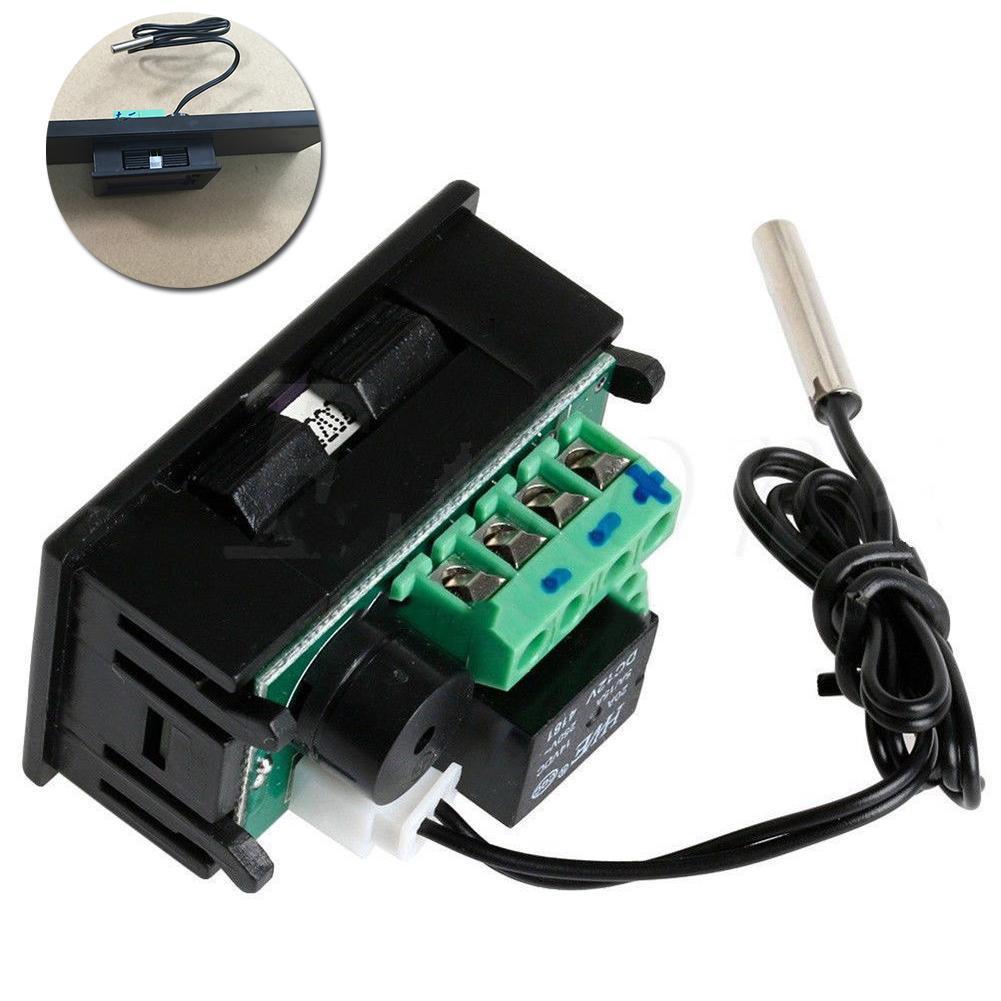

• Sensor: NTC sensor
• Sensor Cable Length: 1m
• Measurement input: NTC (10K 0.5%) waterproof type sensor
• Relay Output Capacity: 10 a relay all the way
• Length (mm): 48
• Width (mm): 29
• Height (mm): 32

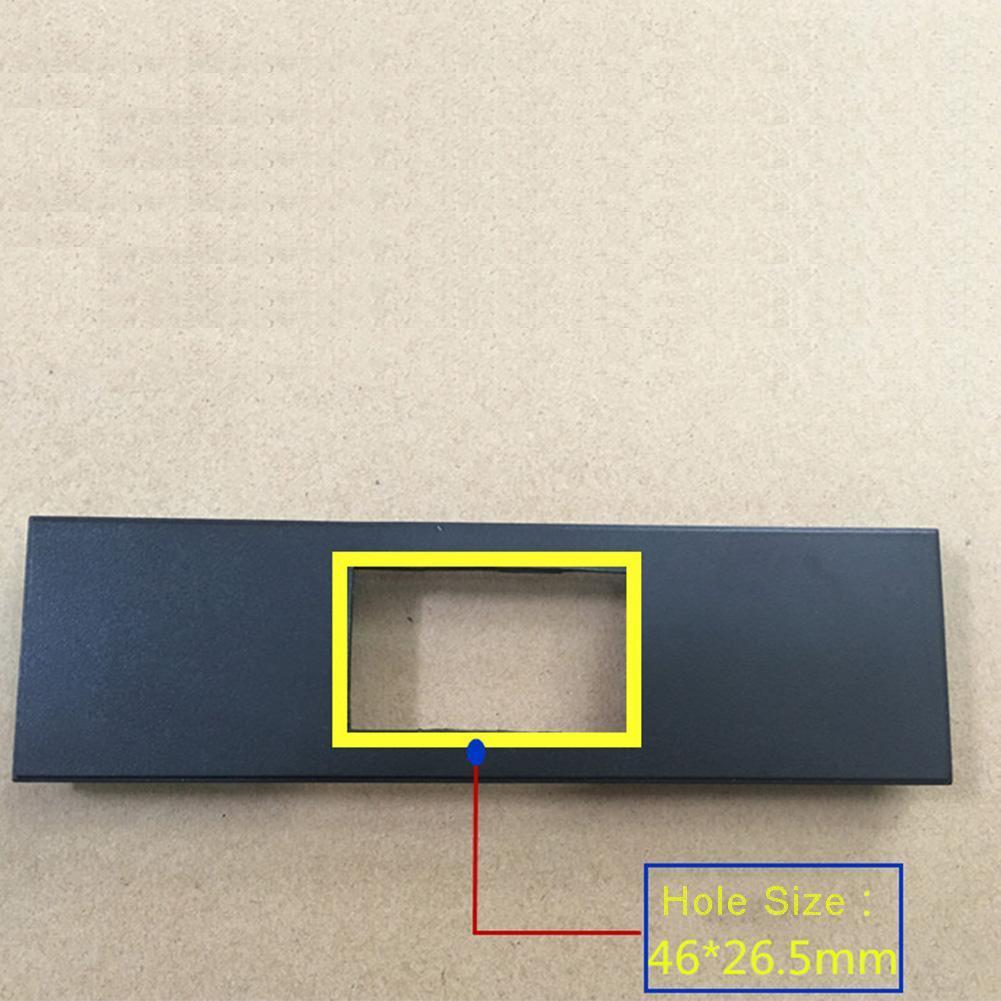

• Hole size (mm): 46 x 26.5
• Weight (gm): 24

Application:

• Outdoor use uses involving potential chemical contamination or electrical interference
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems
• Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
• Systems, machines, and equipment that could present a risk to life or property
• Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.

Package Includes:

• 1 x W1209WK DC12V LED Digital Thermostat Temperature Controller Regulator
