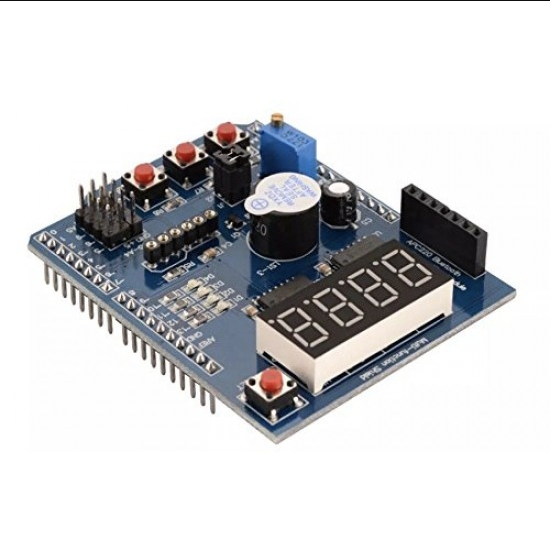

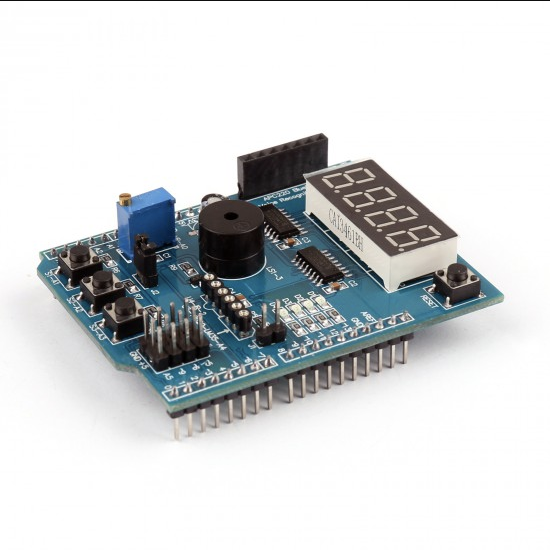

Multifunction Shield For Arduino Uno / Leonardo

This Multifunction Shield For Arduino Uno / Leonardo is all in one shield for beginner users of Arduino Development Board.

This Arduino Uno and Leonardo compatible multifunction experimenter shield (HCARDU0085) has a large range of features which makes it ideal for beginners who just want to experiment and learn, or just as a general purpose shield for more advanced uses.

Besides the feature-rich range of components fitted to the shield, there is also a range of expansion headers for convenient interfacing of external modules and components. The shield includes R3 type headers for easy connection to your Arduino board. If you have a pre R3 design Arduino, please check for compatibility before purchase.

Note: Before applying power to your Arduino board check that other than the header pins, no part of the underside of this shield is in contact with the host board.

Features:

• 4 digit 7-segment LED display module driven by two serial 74HC595’s.
• 4 x surface mount LED’s in a parallel configuration.
• 10K adjustable precision potentiometer.
• 3 x Independent push buttons.
• Piezo buzzer.
• DS18B20 temperature sensor interface.
• LM35 temperature sensor interface.
• Infrared receiver interface.
• Serial interface header for convenient connection to serial modules such as Bluetooth, a wireless interface, voice module, a voice recognition module, etc.

Specifications:

• Input Supply voltage (V) : 5V
• Length (mm) : 66
• Width (mm) : 53.5
• Height (mm) : 21
• Weight (gm) : 22

Package Includes:

• 1 x Multifunction Shield For Arduino Uno / Leonardo
