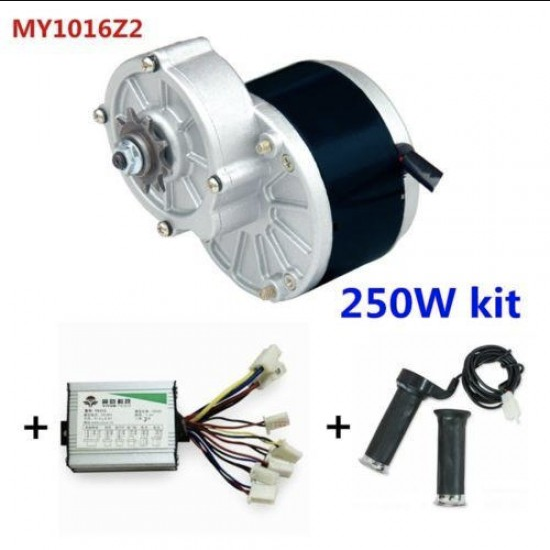

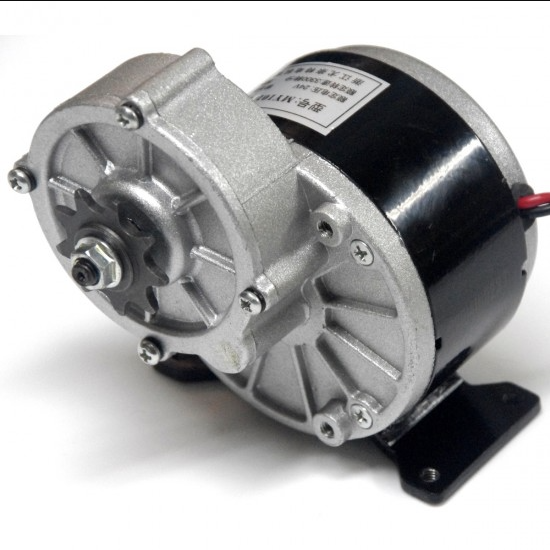

MY1016Z2 250W 400RPM Geared DC motor for E-bike Bicycle

MY1016Z2 250W 400RPM Geared DC motor for E-bike Bicycle is a popular reduction motor is simply the most commonly used high quality motor for Scooters, Bikes and quad’s available in the market!

It is normally found in the better quality quads and scooters on the market and is classed as a mid range combination.

They are quite powerful for their small size and extremely reliable. We’ve sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!

Most people use this 250W motor as a starting block for building their own carts, warbot, Segway,etc..etc. It’s suitable for kids up to about 5-7 years old (after that they may be getting a little heavy, and any younger and you won’t be able to catch the kids)

They are quite powerful for their small size and extremely reliable.

Note: This electric motor is capable of rotation in either the clock wise or counterclockwise direction by reversing the motor’s power wires (reversing the polarity to the motor).

Specifications:



• Model: MY1016Z
• Rated Current(A): Full load current: 13.4A. No Load Current: 2.2A.
• Voltage: 24V
• Rated Speed (Base Motor): 3700 RPM
• Rated Load RPM (After Gear Reduction): 400 RPM
• Operating Power: 250 Watt.
• Gear Ratio: 9.78:1
• Rated Torque: 22 N.m (220 kg-cm)
• Stall Torque: 8.0 N.m (80 kg-cm)
• Min. Reduction Ratio: 9.78
• Gearbox: Yes.
• Length of Cable: 0.5 Meter
• Sprocket: 9Tooth only fits #410 bicycle chains.
• Weight (Kg): 2.35

Package Includes :

• 1 x MY1016Z2 250W 400RPM Geared DC motor

Note:

• This motor comes with stand with bottom.
