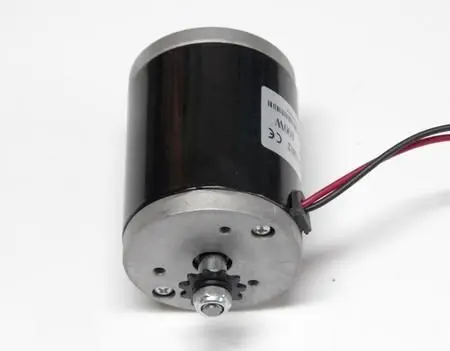

MY6812 12V DC 120W 3550RPM E-Bike Motor (Chain)

MY6812 12V DC 120W 3550RPM E-Bike Motor (Chain) is a motor popular as a scooter motor or general application motor or Electric Bike Motor. Commonly found in 12V scooters or even small kiddies carts and It’s also been a proven motor in robotics!  Extremely durable and reliable.

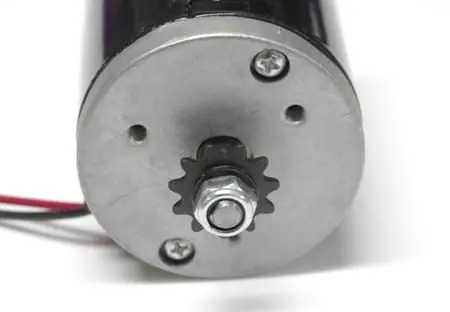

This one is a chain drive type of DC motor for E-bike. Fitted with a 11 tooth sprocket for #25 chain.

With its impressive power, precision, and reliability, this motor is designed to bring your creations to life. Whether you’re working on robotics, automation, or DIY projects, the MY6812 motor delivers the perfect balance of strength and accuracy.

Feature:

• Durable Material: This MY6812 motor is made from premium aluminum material, which is sturdy and durable.
• High Speed: This electric scooter motor features high speed, 3550RPM ensures, making your scooter faster.
• With Belt Pulley: This electric bike motor with a metal belt pulley ensures long service life and stable performance.
• Widely Compatible: This high-speed motor is widely compatible with electric scooters, electric bikes, etc.
• Easy to Use: This MY6812 12V 100W Motor can be easily used by simply connecting the positive and negative wires of the motor to the power supply.

Specifications:

• Model: MY6812 120W
• Operating Power: 120W
• Operating Voltage: 12V DC
• No load current : < 1A,
• Rated current : < 7.0A
• Rated Torque: 4 KgCm (0.35N.m)
• Gearbox: No
• Efficiency: >70%
• Length of Cable: 25 cm
• Rated Speed(RPM): 3550RPM.
• Loaded Speed (RPM): 2600-2900 RPM
• Weight (Kg): 1.3
• Dimensions (LxD): 120mmx68mm

Physical Attribute:

• Number of teeth: 9 teeth
• Pitch: 6.35mm
• Shaft end thread: M6-left (anti-thread)
• Weight 1078g
• With a 25H model chain
• Wire length 45cm

Package Includes :

• 1 x  MY6812 120W 12V 2650RPM DC Motor
