MY6812 150W 12V 2750RPM DC Motor for E-bike Bicycle (Chain) - Unite Make
MY6812 150W 12V 2750RPM DC Motor for E-bike Bicycle (Chain) - Unite Make

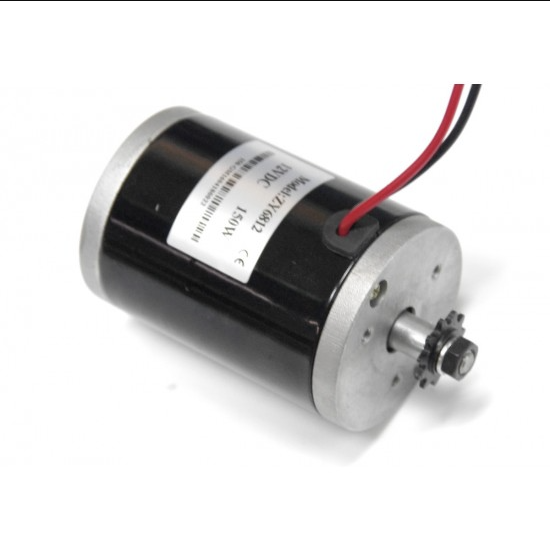

This MY6812 150W 12V 2750RPM DC Motor for E-bike Bicycle is Unite make motor popular as a scooter motor or general application motor. Extremely durable and reliable.
Commonly found in 12V scooters or even small kiddies carts and It’s also been a proven motor in robotics! 100% Ball Bearing construction!
The belt drive is fitted to an 8mm d-cut shaft with a circlip. If you wish to remove it, you can simply remove the circlip and slide it off. Some companies glue these in place, but it’s not required as the fit is firm.

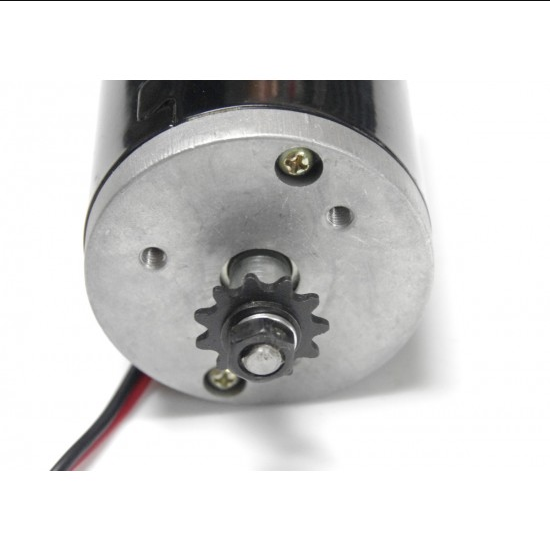

This one is a chain drive type of DC motor for E-bike. Fitted with a 9 tooth sprocket for #25 chain.
Specifications:
|
Operating Voltage (VDC) |
12 |
|
No-Load Current (A) |
1 |
|
Rated Current (A) |
14.3 |
|
RPM |
3500 |
|
Loaded RPM |
2600-3000 |
|
Torque (Nm) |
0.56 |
|
Wattage |
150W |
|
Efficiency |
70% |
|
Sprocket |
9 tooth, #25 bicycle chain |
|
Weight |
1.4 kg |
Package Includes:
- 1 x MY6812 150W 12V 2750RPM DC Motor(Chain) - Unite Make
