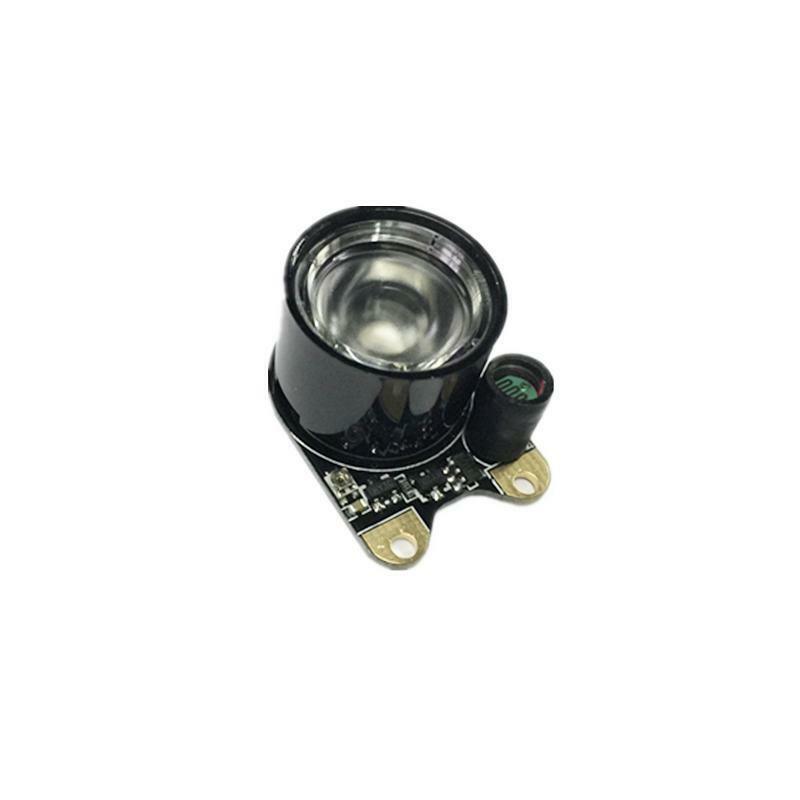

Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera

The Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera features the Onboard photoresistor for the ambient light detection. This is the additional focus that can be added to your night vision surveillance camera project using Raspberry Pi. Also, the Onboard adjustable resistor controls the ambient light threshold of toggling the infrared LED.

This tiny infrared LED light perfectly fits with our Infrared IR Night Vision Surveillance Camera Module 500W Webcam.

Features :

• Small size and Lightweight module.
• 3W high-power 850 infrared LED

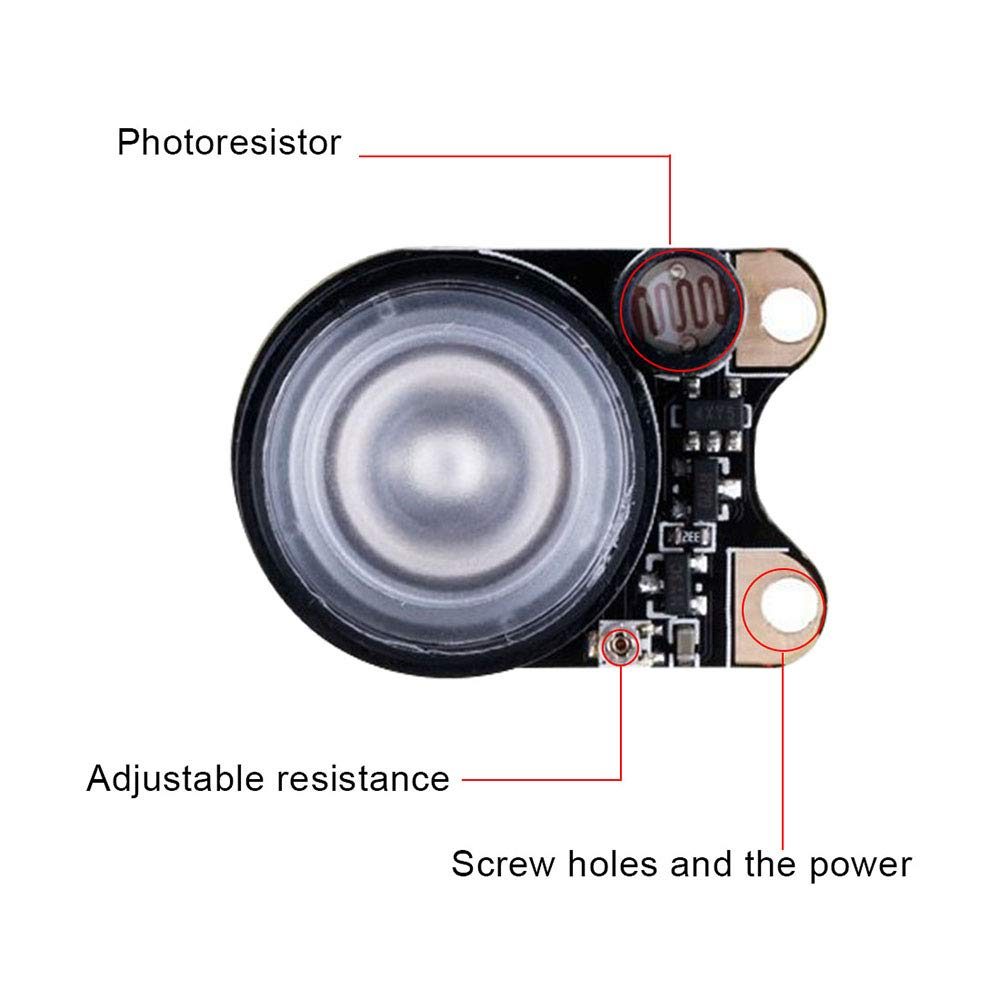

• Onboard photoresistor, the ambient light detector
• Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED
• 140 degree field of view, where the RPi Camera (H) features 160 degree, hence, 2 pieces of this item is required
• Compatible with our Night Vision Surveillance Camera Module 500W Webcam
• Allows adding night vision function to RPi Camera (E) or RPi Camera (F).

Specifications:

• Compatibility: Night Vision Surveillance Camera Module
• Operating Voltage (VDC): 5
• Max. Operating Current (mA): 600
• Power(W): 3

How to Use :

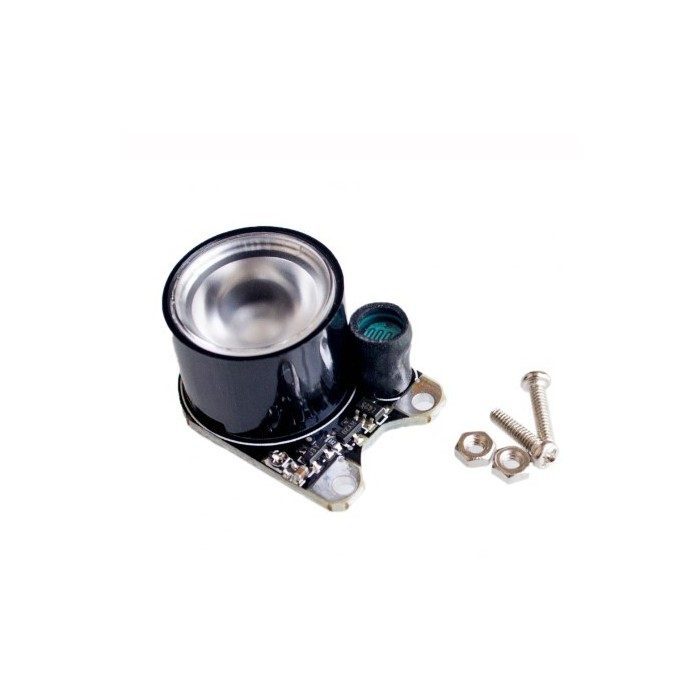

• Connect the Infrared LED Board to the camera PCB by screws.

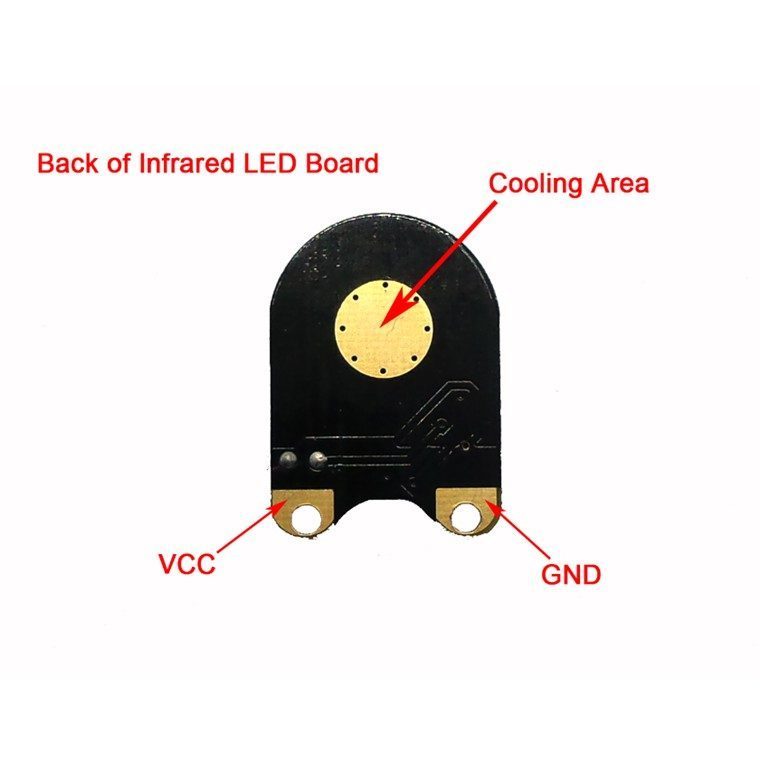

• The screw holes are used for both attachment and power supply.
• Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically.
• When ambient light is lower than the threshold value, the infrared LED is on, vice versa.

Note :

• The 3W high-power IR LED light might cause the Pi to increase heating, heat sinks are suggested.
• Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.

Remarks: Package Does not include any camera module, to buy the compatible camera click below

• Infrared IR Night Vision Surveillance Camera Module 500W Webcam

Package Includes :

• 1 x Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera
