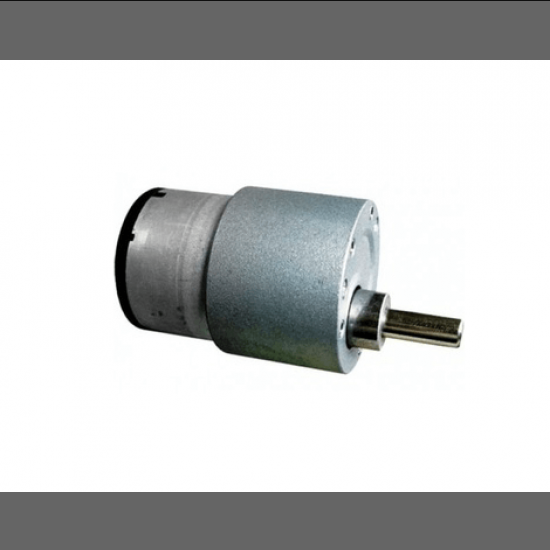

Offside Geared Motor 12V 10 RPM - High Torque
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil676Offside Geared Motor 12V 10 RPM - High Torque is a new compact size motor at a low cost.The supply voltage range is 10-12V. The overall body of the motor is made up of metal. The motor has a D type shaft with a shaft length of 16mm and a diameter of 6mm.
The vital application of this motor are Pan/ Tilt camera, auto shutter, welding machines, water meter, grill oven, Floor cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel dispenser, lighting , Coin refund devices, Peristaltic pump and many more.
Features:
- The lightweight and compact-sized motor with high performance.
- The Shaft is D type hence wheel/ coupling arrangement is simple.
- Useful for hobbyists and for a DIY project.
Specifications:
|
Operating voltage (v) |
3V to 12V |
|
Nominal Voltage |
12V |
|
No load Current (mA) |
<20 |
|
Full load current (mA) |
<800 |
|
Rated Torque (N-cm) |
28 |
|
Rated speed |
10 RPM (at 12V) |
|

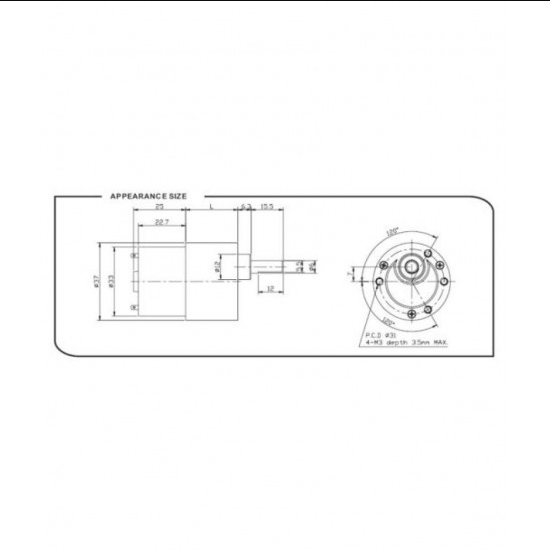

Shaft length (mm) |
16 |
|
Shaft diameter (mm) |
6 |
|
Motor mounting screw |
4 x M3 and depth 3.5mm |
|
Motor body Length (mm) |
75 |
|
Motor Body Diameter (mm) |
37 |
|
Weight (gm) |
150 |
Package Includes:
- 1 x Offside Geared Motor 12V 10 RPM - High Torque
