Offside Geared Motor 12V 60 RPM – High Torque
memory Technical Parameters & Datasheet Summary
SKU: Anil682Offside Geared Motor 12V 60 RPM - High Torque is a new compact size motor at a low cost.The supply voltage range is 10-12V. The overall body of the motor is made up of metal. The motor has a D type shaft with a shaft length of 16 mm and a diameter of 6 mm.
The vital application of this motor are Pan/ Tilt camera, auto shutter, welding machines, water meter, grill oven, Floor cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel dispenser, lighting , Coin refund devices, Peristaltic pump and many more.
Features:
- The lightweight and compact-sized motor with high performance.
- The Shaft is D type hence wheel/ coupling arrangement is simple.
- Useful for hobbyists and for a DIY project.
Specifications:
| Operating voltage (v) | 3V to 12V |
| Nominal Voltage | 12V |
| No load Current (mA) | <20 |
| Full load current (mA) | <800 |
| Rated Torque (N-cm) | 14 |
| Rated speed | 60 RPM (at 12V) |

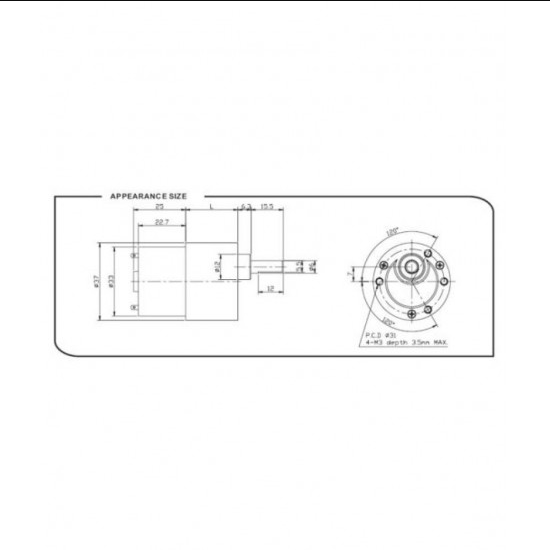

| Shaft length (mm) | 16 |
| Shaft diameter (mm) | 6 |
| Motor mounting screw | 4 x M3 and depth 3.5mm |
| Motor body Length (mm) | 75 |
| Motor Body Diameter (mm) | 37 |
| Weight (gm) | 150 |
Package Includes:
1 x Offside Geared Motor 12V 60 RPM - High Torque
