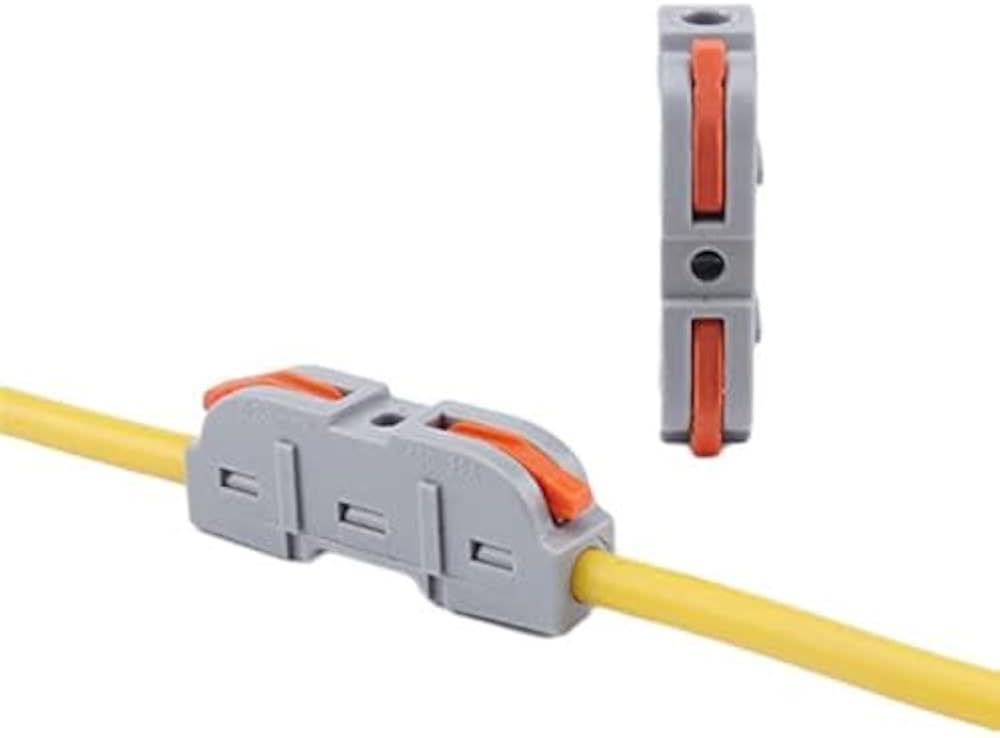

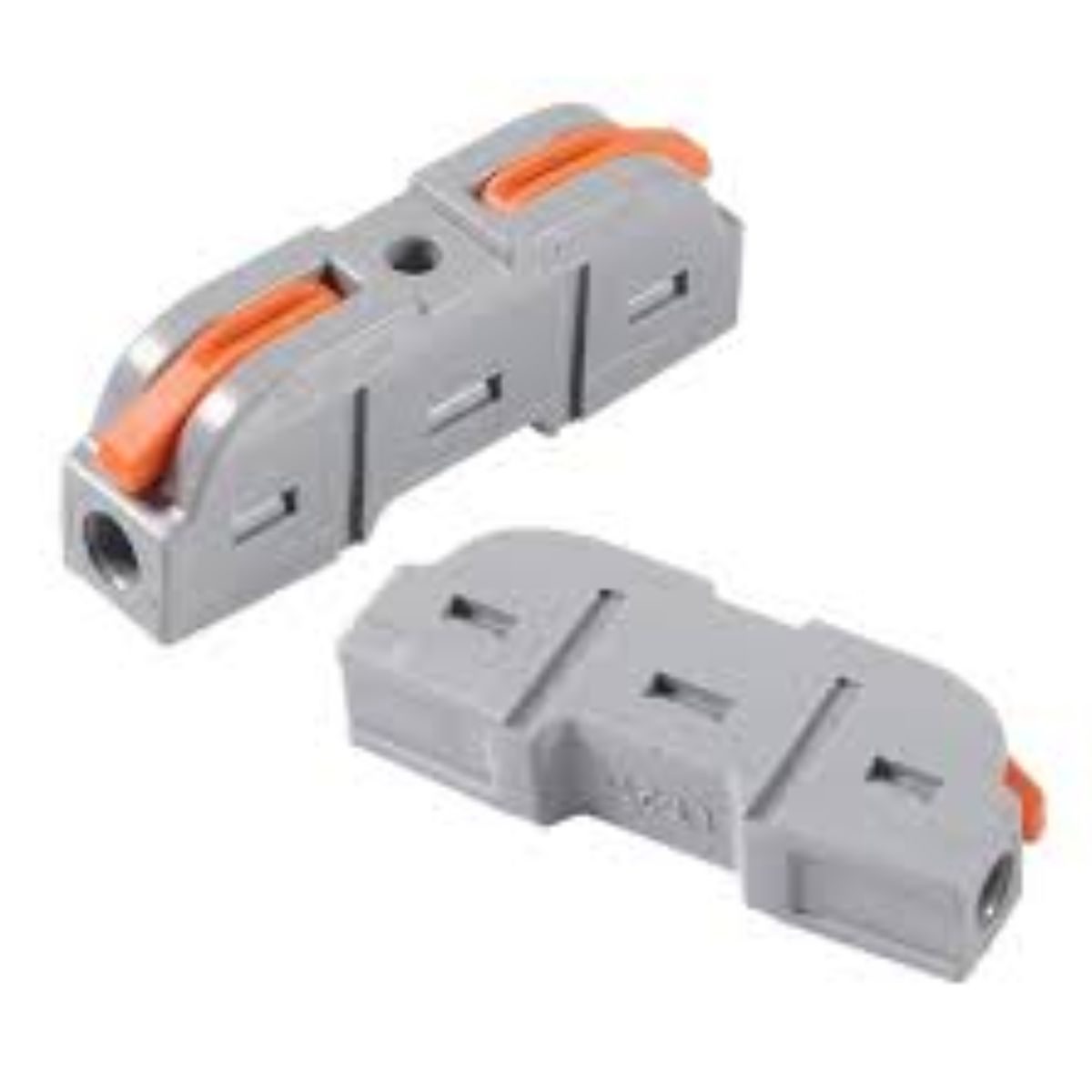

PCT-221 Quick Connector Terminal 1 In-1 Out, Lever Wire Connector

The PCT-221 Quick Connector Terminal, Lever Wire Connector 1-Way is one-in one-out spring lever terminal block electric cable wire connector which makes wiring a breeze, and with a wiring range of hard wire 0.08-4mm2 or less and soft wire 0.08-2.5mm2 or less, it is suitable for a wide range of applications.

Made from high-quality PA flame retardant engineering plastic and copper conductive strip, this compact wiring connector push-in terminal block is safe, reliable, and built to last. The PCT-221 is a compact lever wire connector that provides a splicing wire connector, making it the ideal choice for connecting household appliances, lighting, machinery, and other wires.

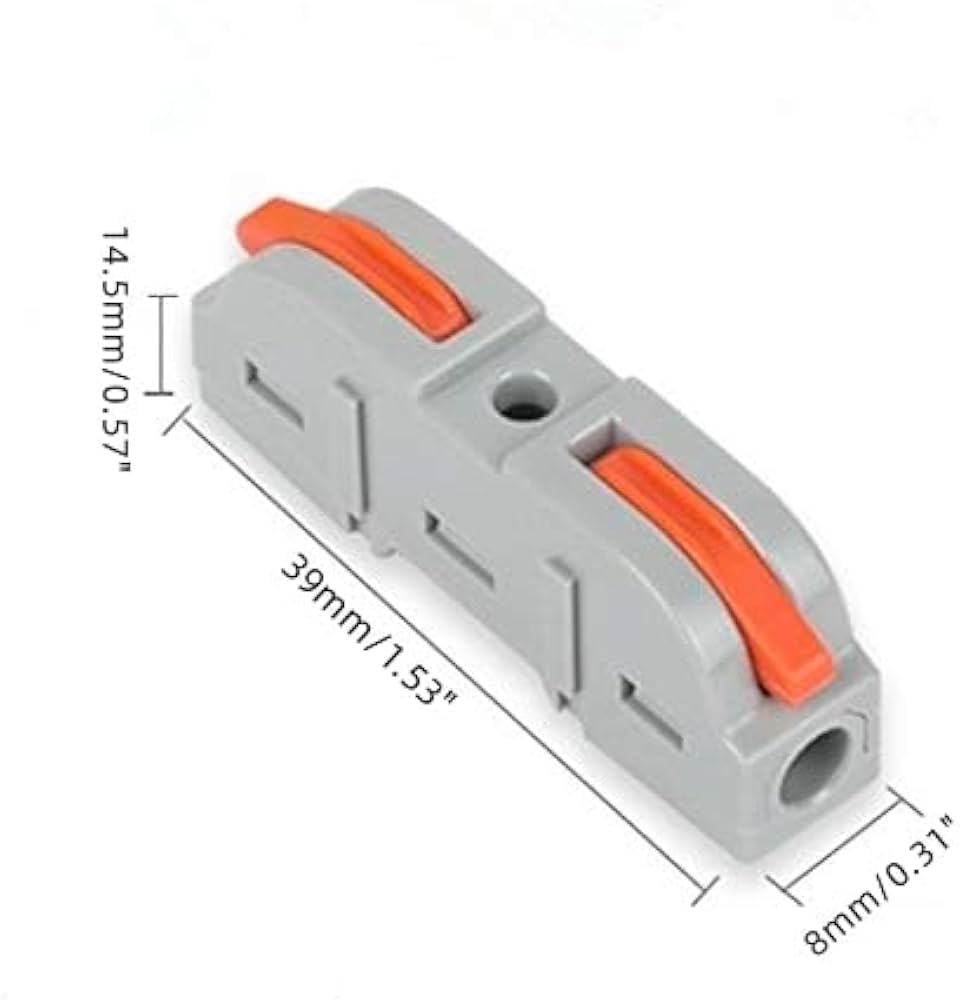

With a terminal block conductor and a maximum rating of 250V/6KW/32A, the PCT-221 can handle all your electrical needs. Its small size of 40mm ×8mm×14.5mm makes it easy to use in tight spaces and ensures that it won’t take up too much room.

Specification:

• Connector Type: Lever-type wire connector
• Model: PCT-221
• Number of Terminals: 2
• Number of Ports: 1 input, 1 output
• Wire Cross-Section: 0.08mm² to 2.5mm² (solid or stranded wire)
• Rated Voltage: 400V
• Rated Current: 32A (for rigid conductors)
• Operating Temperature Range: -40°C to 85°C
• Insulation Material: Polyamide (PA66)
• Contact Material: Copper alloy
• Connector Housing Material: Polypropylene
• Installation Method: Tool-free lever-operated

Package Includes:

• 1x PCT-221 Quick Connector Terminal 1 In-1 Out, Lever Wire Connector
