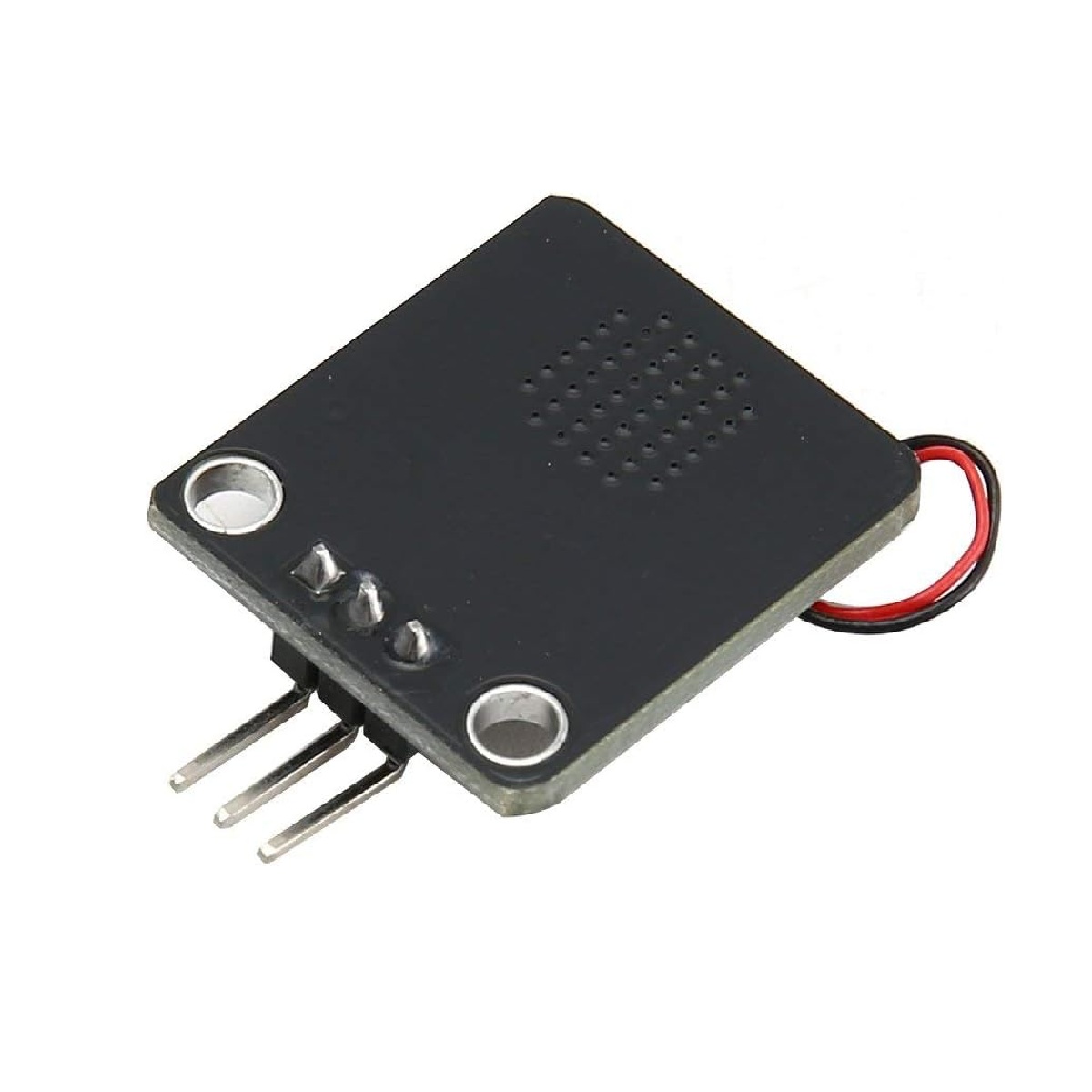

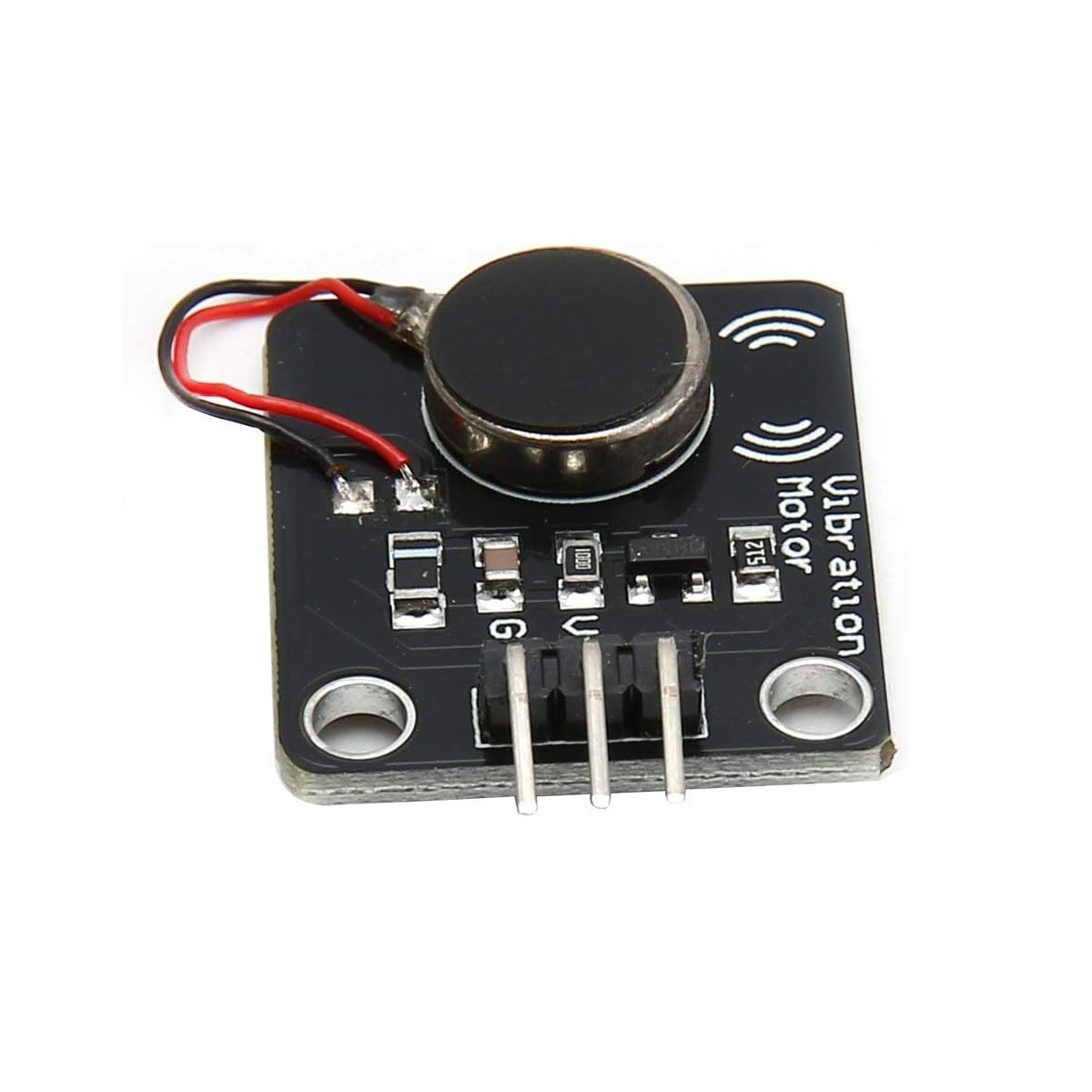

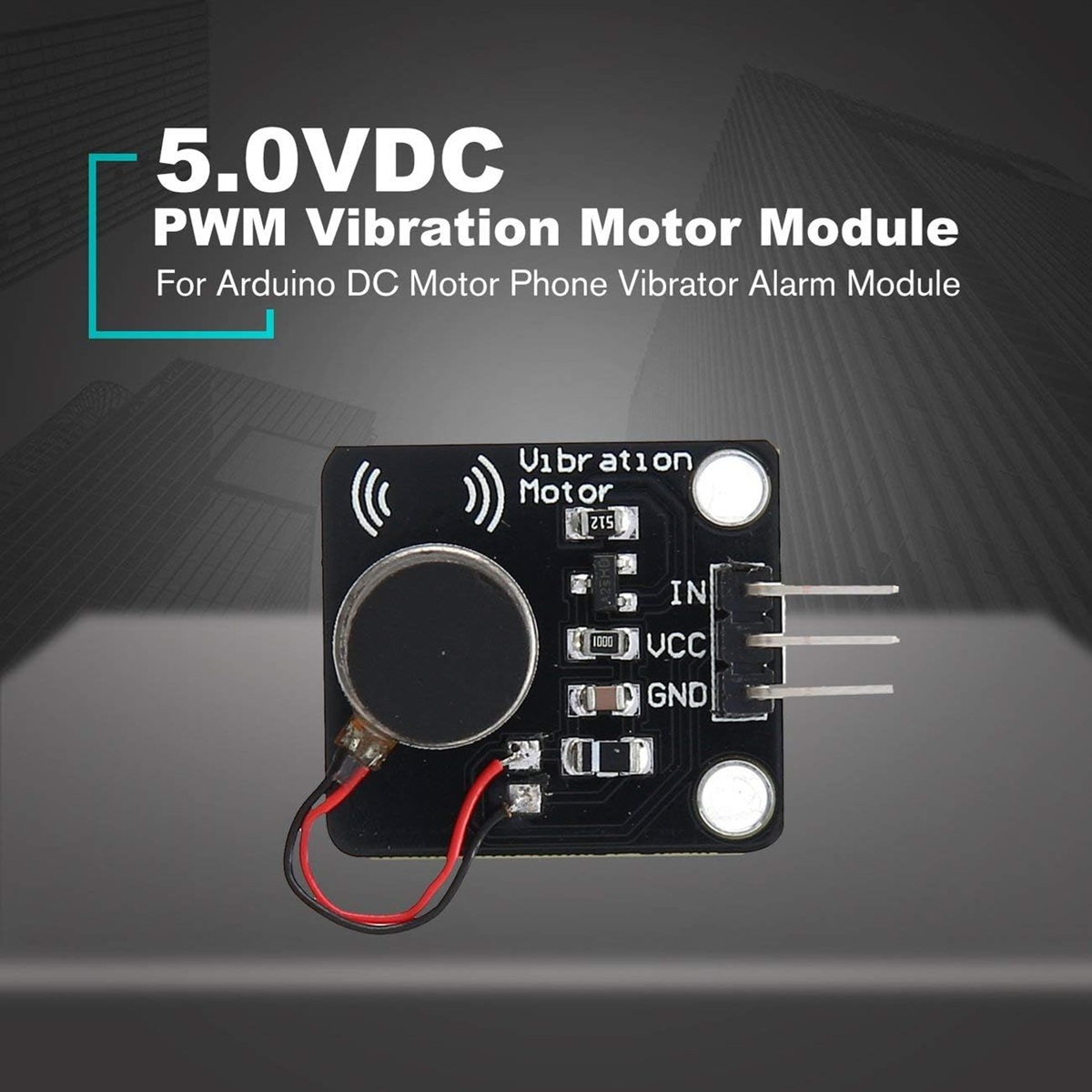

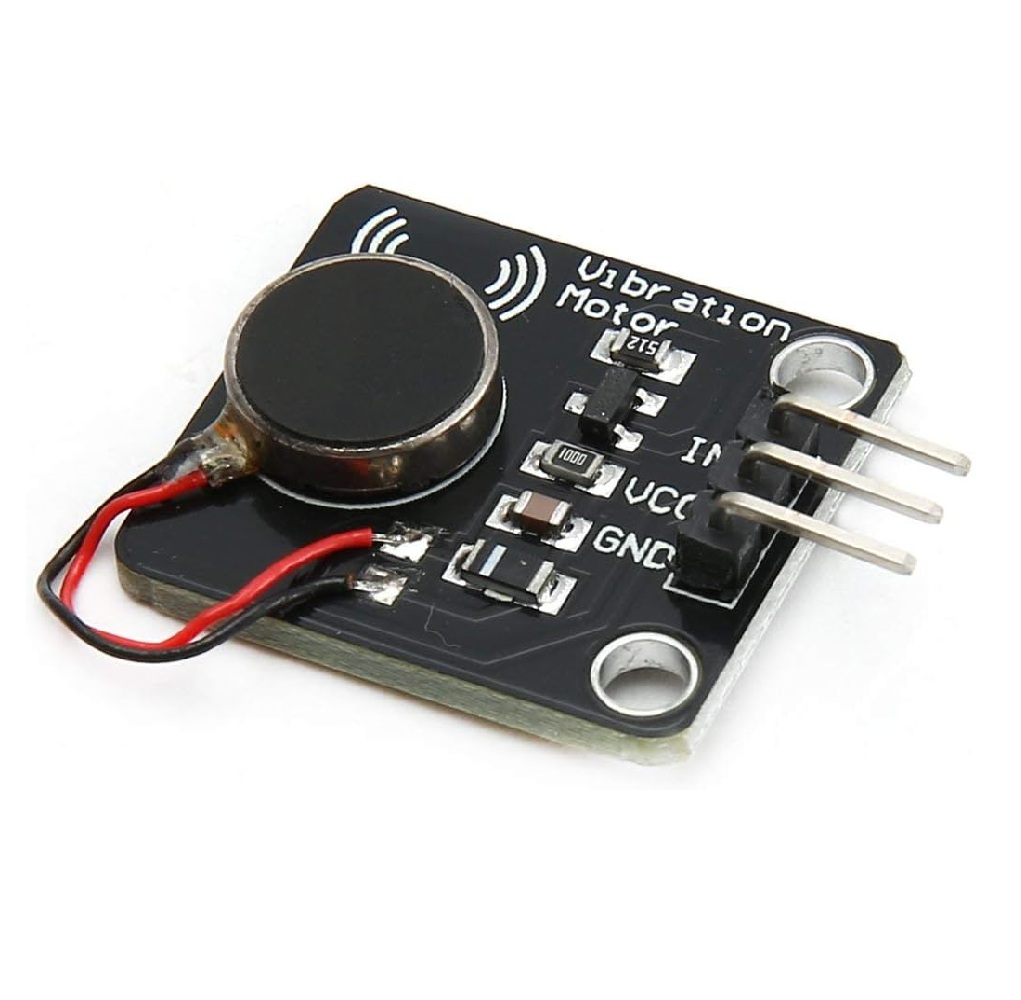

PWM Vibration Motor Module for Arduino

The PWM Vibration Motor Module is a compact and efficient electronic component designed for Arduino UNO R3 and MEGA2560. It features a high-quality built-in mobile phone vibration motor that produces precise and customizable vibration feedback.

Powered by a 5V supply, the motor’s vibration intensity can be controlled via PWM signals, making it ideal for creating tactile alerts in interactive electronic projects, wearables, and silent indicators. This module supports digital ON/OFF control and offers reliable conversion of electrical signals to mechanical vibrations.

Features:

• Vibration intensity controllable via PWM signal
• Compact size with fixed mounting holes for easy installation

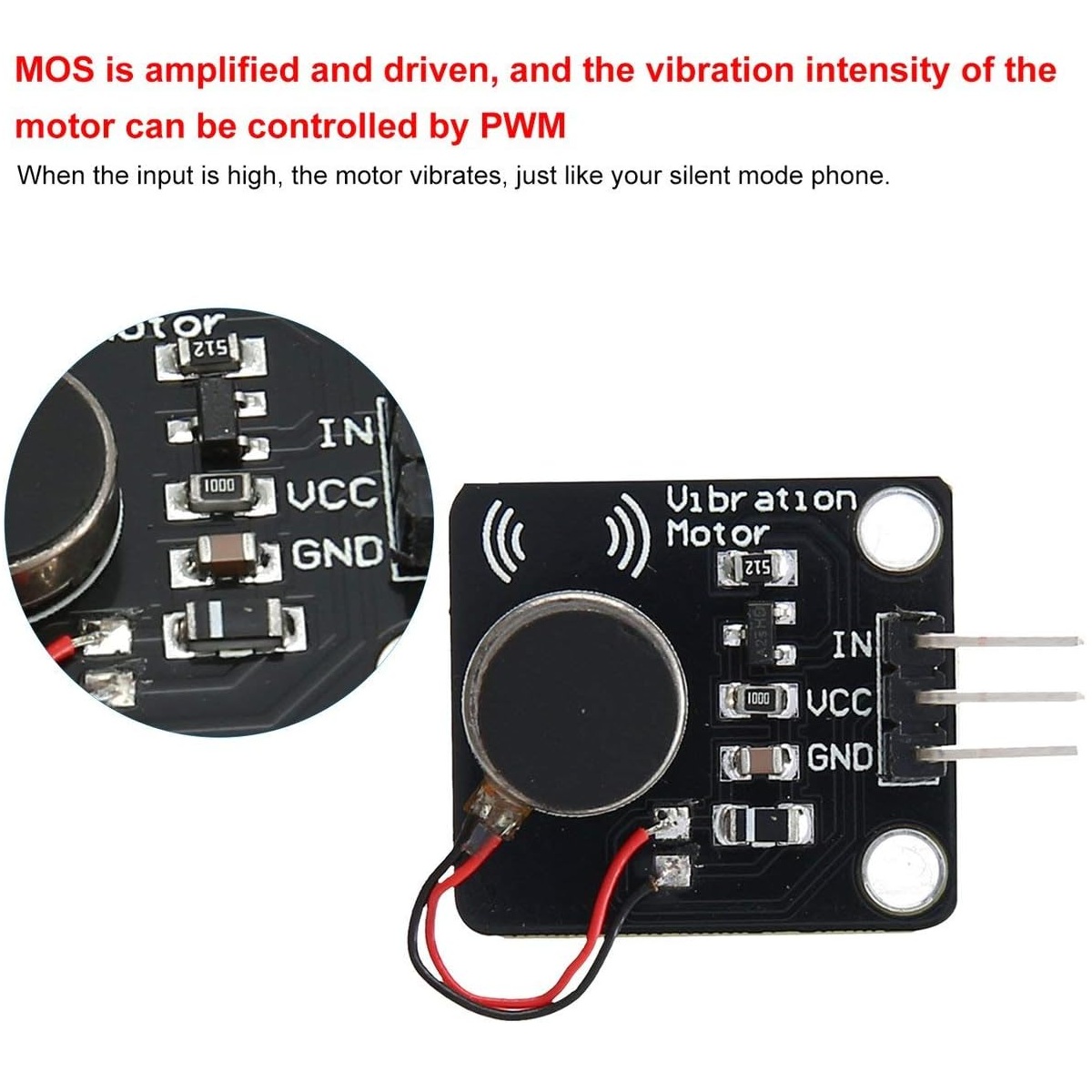

• MOS tube high-level trigger, low-level cutoff drive method
• Compatible with Arduino UNO R3 and MEGA2560
• Ideal for DIY electronics and wearable haptic feedback projects

Specifications:

• Rated voltage: 5 VDC
• Operating voltage range: 3 to 5.3 VDC
• Rated motor speed: 9000 RPM minimum
• Rated current: up to 60 mA; starting current up to 90 mA
• Starting voltage: 3.7 VDC
• Dimensions: approximately 21 mm x 23 mm
• Motor diameter: 10 mm
• Motor type: Flat mobile phone vibration motor
• Weight: around 3 grams

Applications:

• Haptic feedback in wearable devices
• Silent alert indicators in electronic gadgets
• Interactive projects sensitive to vibrations
• Small robots and hobbyist DIY kits
• Non-audible signaling systems

Package Includes:

• 1 x PWM Vibration Motor Module for Arduino UNO R3/MEGA2560
