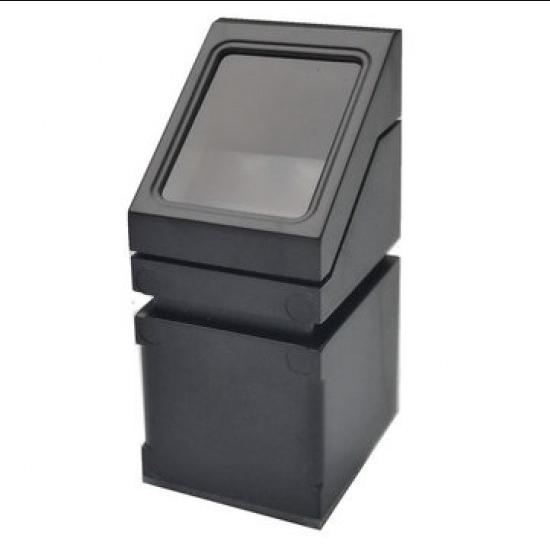

R307 Fingerprint Sensor Module

R307 Fingerprint Sensor Module is a fingerprint sensor with a TTL UART interface for direct connections to microcontroller UART or to PC through MAX232 / USB-Serial adapter. The user can store the fingerprint data in the module and can configure it in 1:1 or 1: N mode for identifying the person.

The FP module can directly interface with 3.3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC serial port.

Integrated image collecting and algorithm chip together, ALL-in-One Fingerprint reader can conduct secondary development, can be embedded into a variety of end products. Users can conduct secondary development, can be embedded into a variety of end products, such as access control, attendance, safety deposit box, car door locks

Features:

• Integrated image collecting and algorithm chip together, ALL-in-One.
• The fingerprint reader can conduct secondary development, can be embedded into a variety of end products.
• Low power consumption, low cost, small size, excellent performance.
• Professional optical technology, precise module manufacturing techniques.
• Good image processing capabilities can successfully capture an image up to resolution 500 dpi.

Specifications:

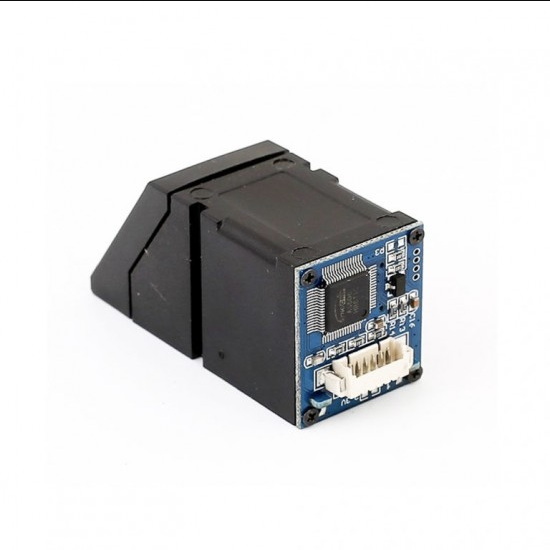

Pinouts :

1.  5V : Regulated 5V DC
2.  GND : Common Ground
3.  TXD : Data output - Connect to MCU RX
4.  RXD : Data Input - Connect to MCU TX
5.  TOUCH : Active Low output when there is touch on sensor by finger
6.  3.3V : Use this wire to give 3.3V to sensor instead of 5V

USB Cable Connections are 5V/D+/D-/GND (Optional)

• 1 x R307 Optical Fingerprint Reader Sensor Module.
• 1 x Connecting Cable(6-pin).
