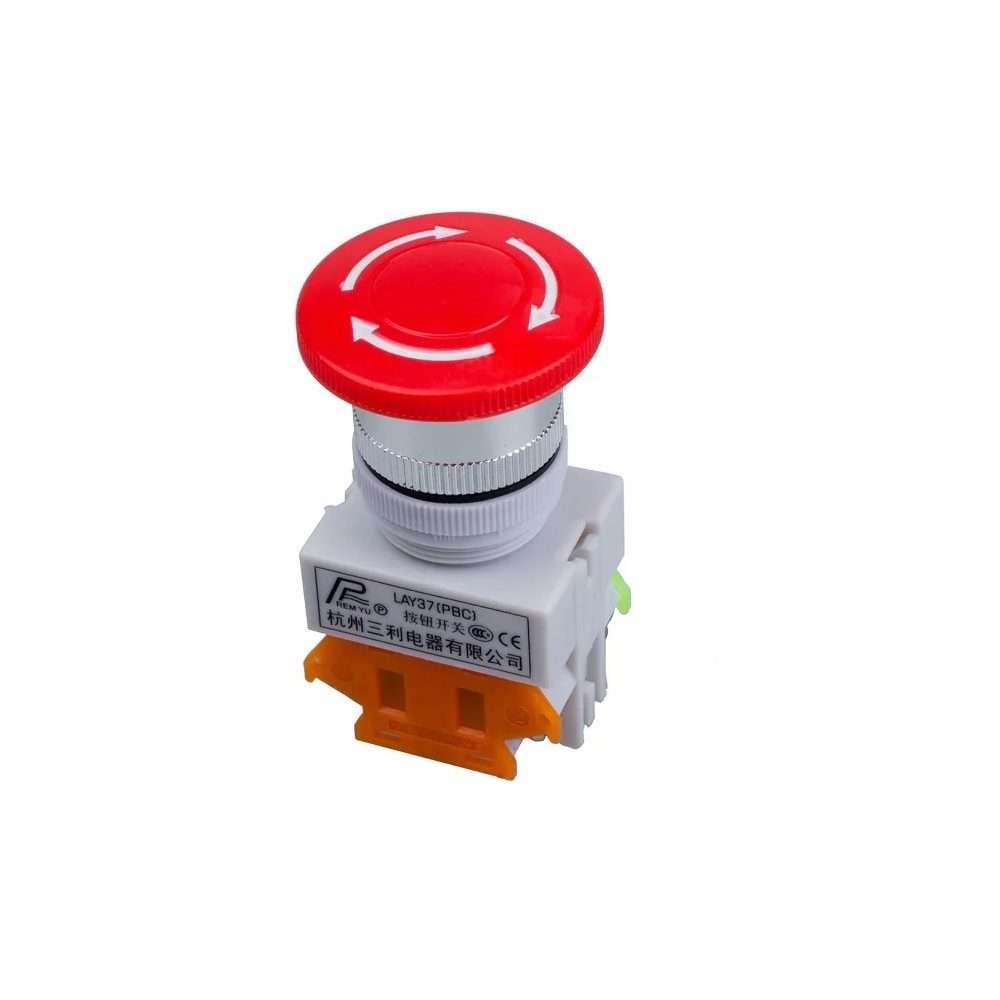

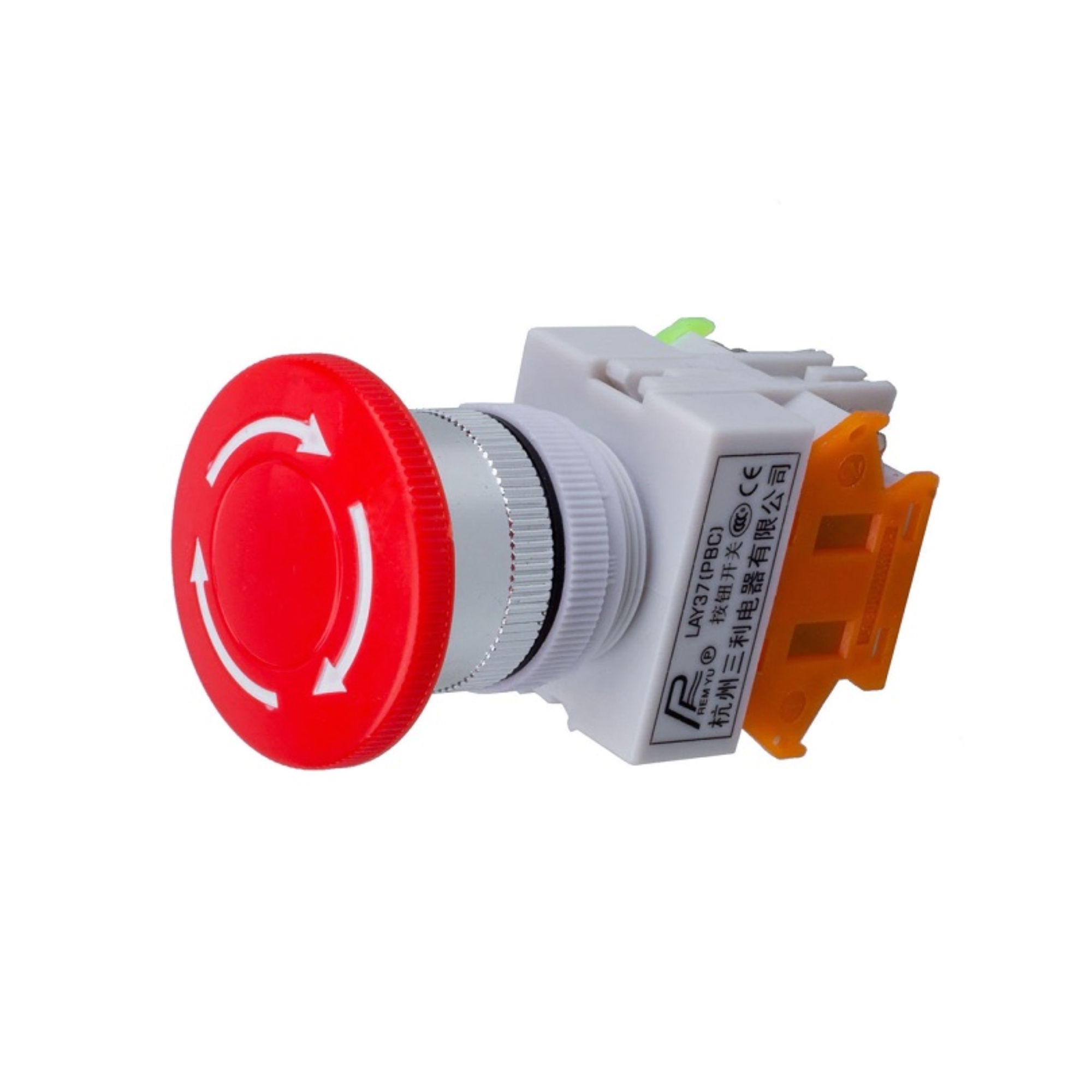

Red Mushroom Cap LAY37- 11ZS 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock

This is a Red Mushroom Cap LAY37- 11ZS 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock. The AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch push button is for Lift, Elevator Latching Self Lock and CNC machines emergency stop. It is made of high-quality material. It has long service life Built-in screw-type connecting cable.  Reset by turning the button as the arrows show and don’t turn inversely

Features :

• It has a red mushroom-shaped cap, which is a common design for emergency stop buttons.
• It is a DPST (Double Pole Single Throw) switch, meaning it has two sets of contacts – one normally open (NO) and one normally closed (NC).
• The switch is rated for AC 660V, making it suitable for use in applications with higher voltage requirements.
• It has a current rating of 10A, which means it can handle up to 10 amperes of current.
• This switch is intended for use with equipment like lifts and elevators, where emergency stop functionality is essential for safety.
• It is designed with a latching mechanism, so once it’s pressed, it stays in the off position until manually reset, providing a self-locking feature for added safety.

Specifications:

• Rated Insulation Voltage (Ui): 600V
• Agreed Thermal Current (Ith): 10A

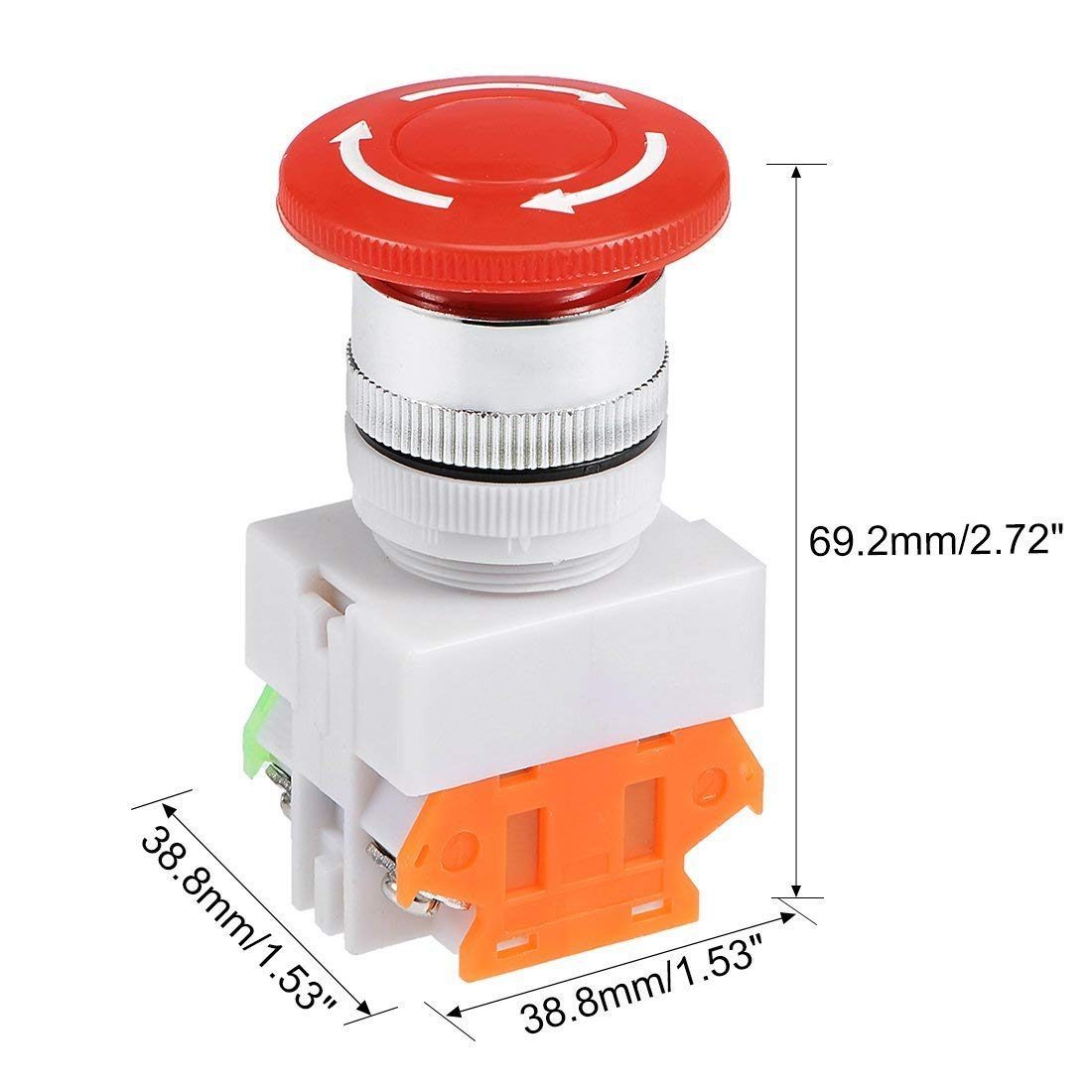

• Switch Top Diameter: 39 mm
• Switch Mount Neck Diameter: 23 mm
• Material: Plastic and metal
• Weight (gm): 50

Package Includes:

• 1 x AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch
