RS-775 Motor 7000 RPM 12V High Torque

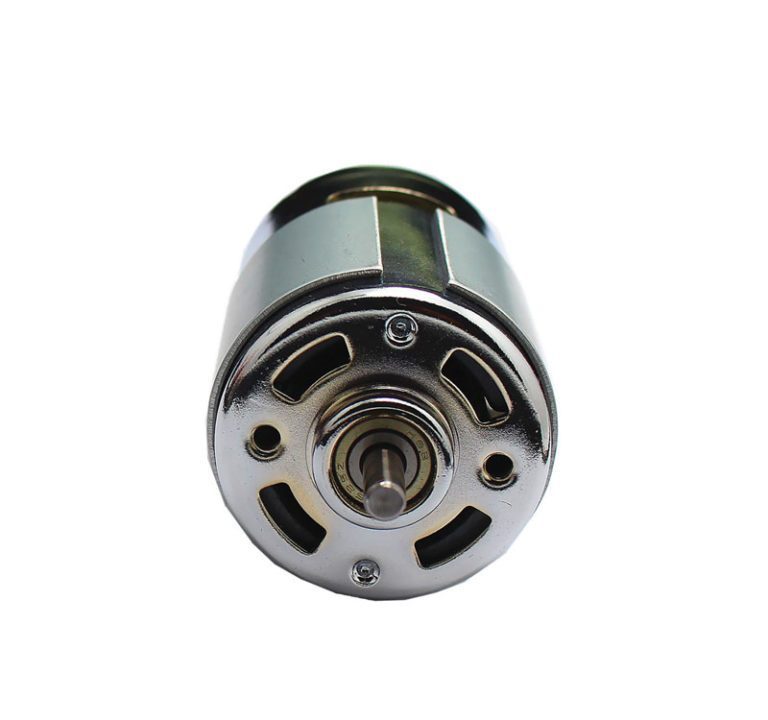

RS-775 Motor 7000 RPM 12V comes with high torque motor having capacity to use for various drilling applications. The main application of this motor is to build low RPM; high torque DC motors which are achieved by including gear-box reduction. We can decrease a base motor RPM from 7000 to 1 just arranging extra gear-box. This motor has single bearing at front side and bush at back side.

Specifications:

• Model: RS-775
• Operating voltage (V): 4.5 – 12V
• Nominal voltage (V): 12V
• No Load speed (RPM): 7000
• No Load current (A): 0.8
• Stall Current (A): 36
• Stall Torque (g-cm): 5482

At Maximum Efficiency:

• Speed (RPM): 6070
• Current (A): 5.25
• Torque (g-cm): 725
• Output (W): 45.19
• Efficiency (%): 71.8

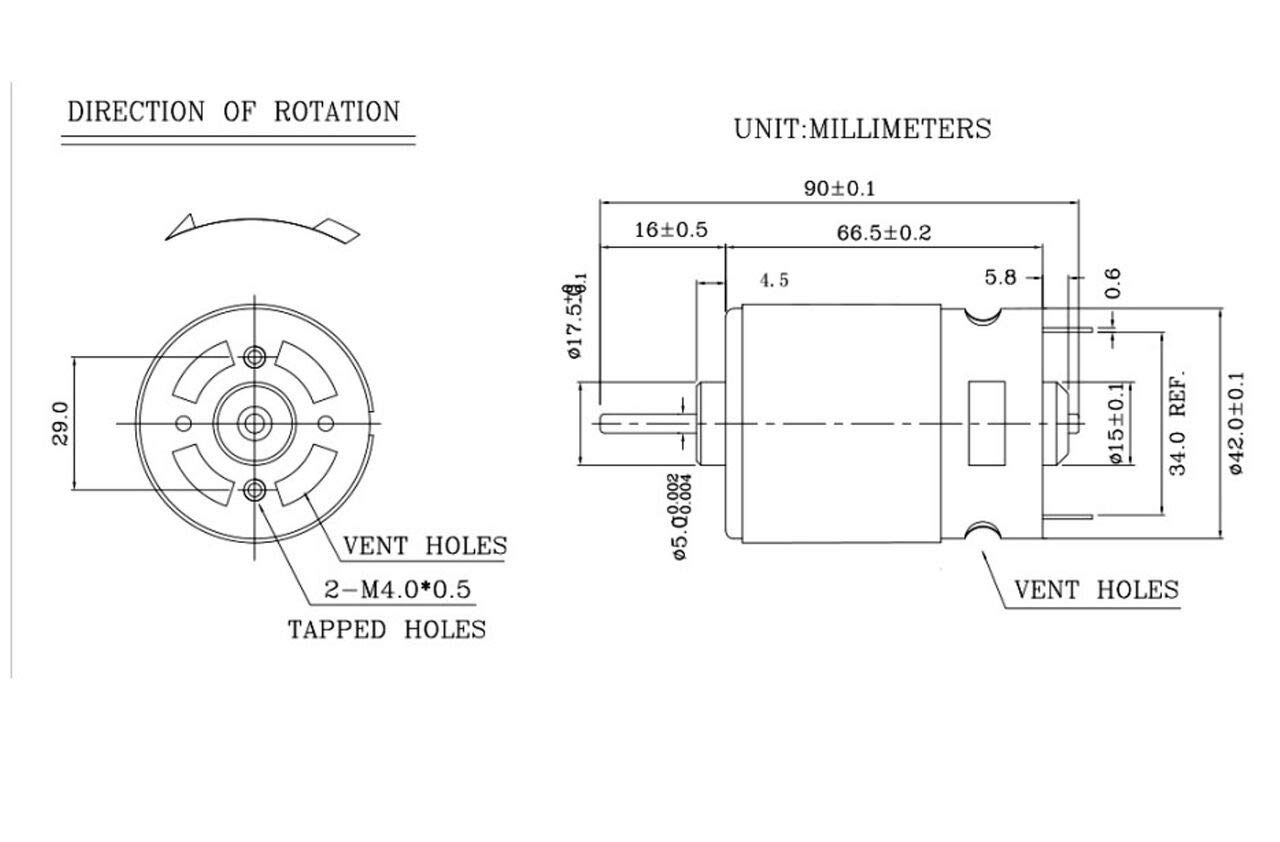

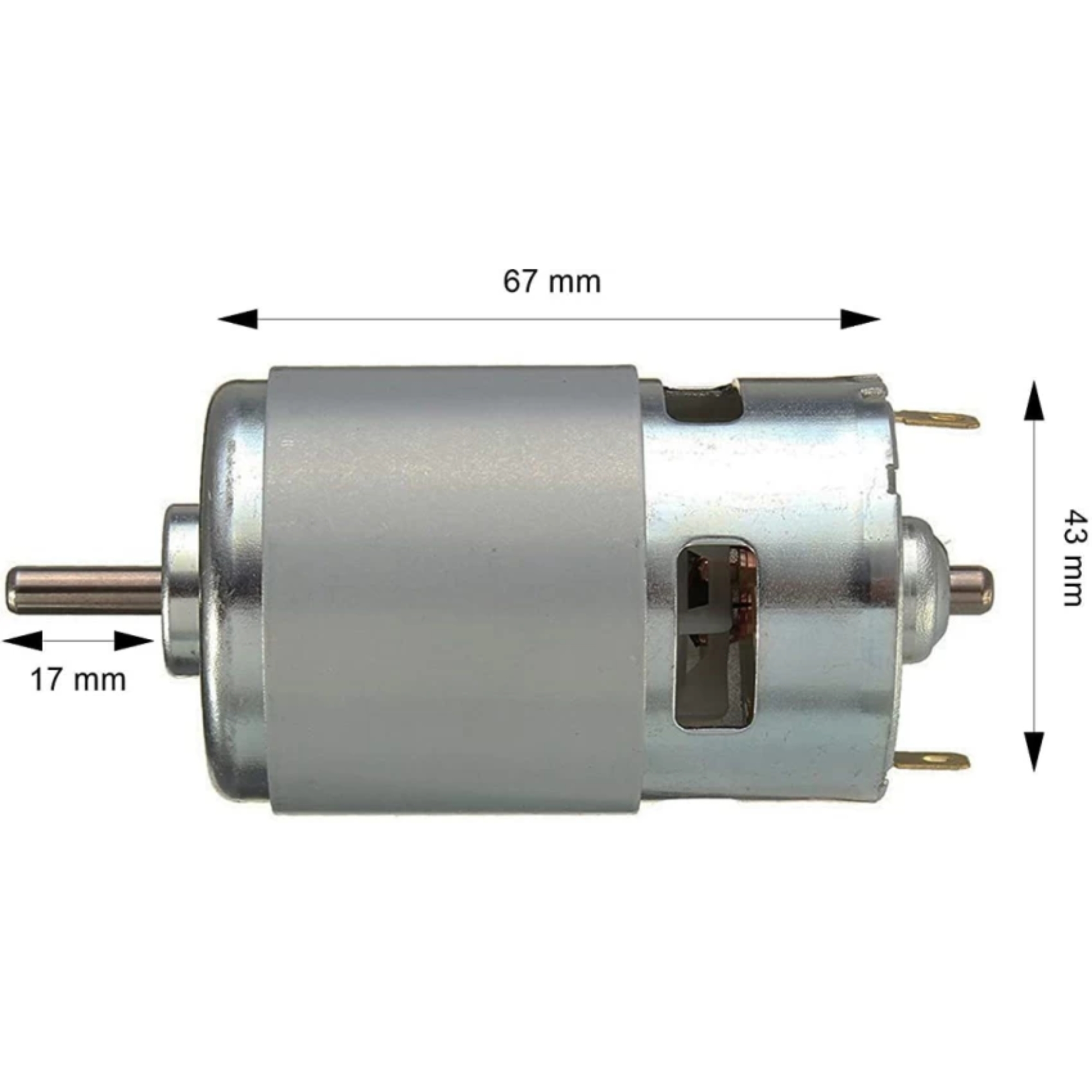

• Motor Diameter: 42 mm
• Motor Length: 77 mm
• Shaft Diameter: 5 mm
• Shaft Length: 16 mm
• Weight (gm): 356

Package Includes:

• 1 x RS-775 Motor 7000 RPM 12V High Torque
