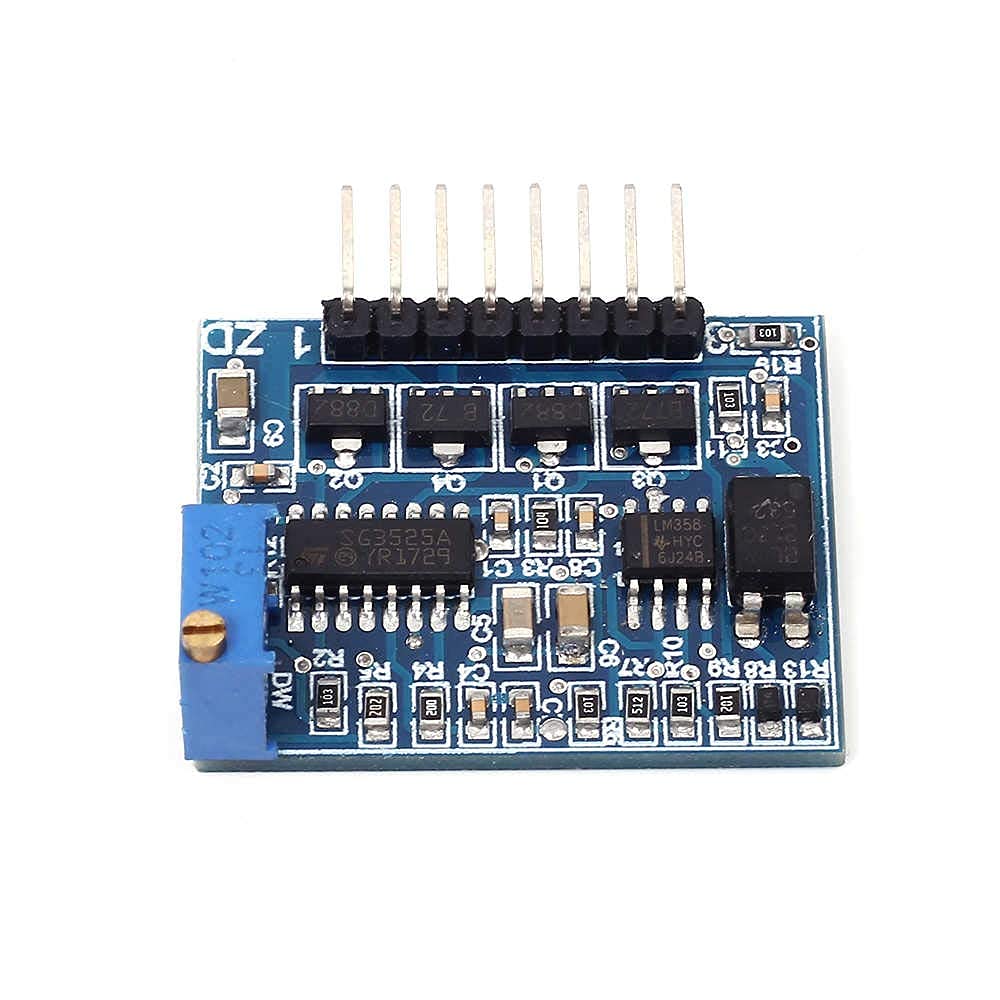

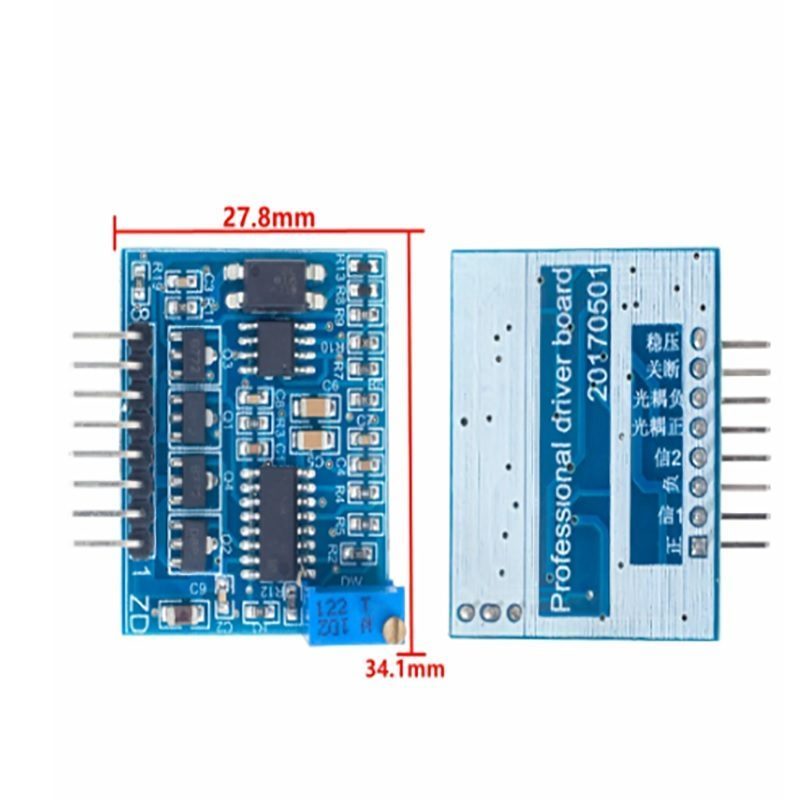

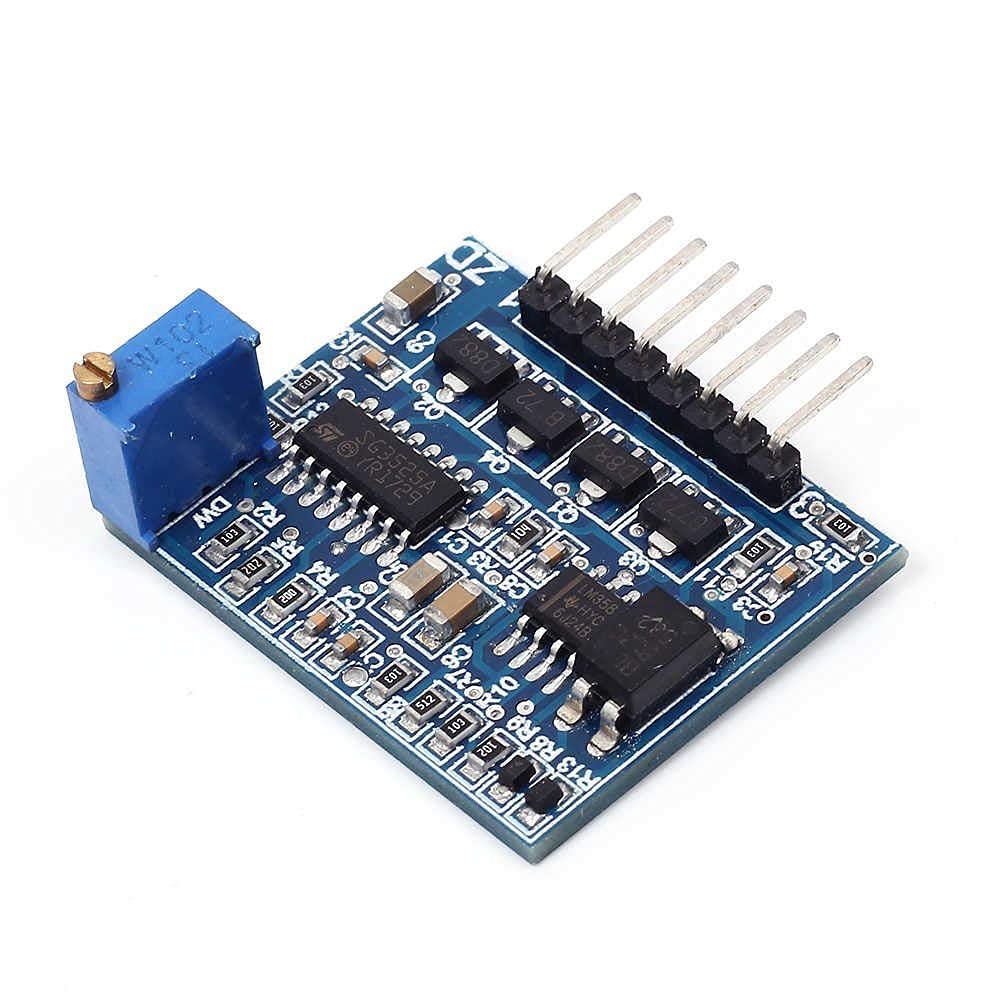

SG3525 LM358 Inverter Driver Board Mixer Pre amp Driver Board 12V-24V 1A
SG3525 LM358 Inverter Driver Board Mixer Preamp Drive Board 12V-24V 1A circuit offers improved performance and lower external parts count when implemented for controlling all types of switching power supplies. The on−chip +5.1 V reference is trimmed to +-1% and the error amplifier has an input common−mode voltage range that includes the reference voltage, thus eliminating the need for external divider resistors. The output stage of the SG3525A features NOR logic resulting in a low output for an off−state.
Features:
- Frequency adjustable.
- Overcurrent, short circuit, turn off self-locking
- The output voltage can be regulated
- Output current up to 1A, Can drive twenty 3205 effectors
Specifications:
- Output:12-24V
- Driver current:1A

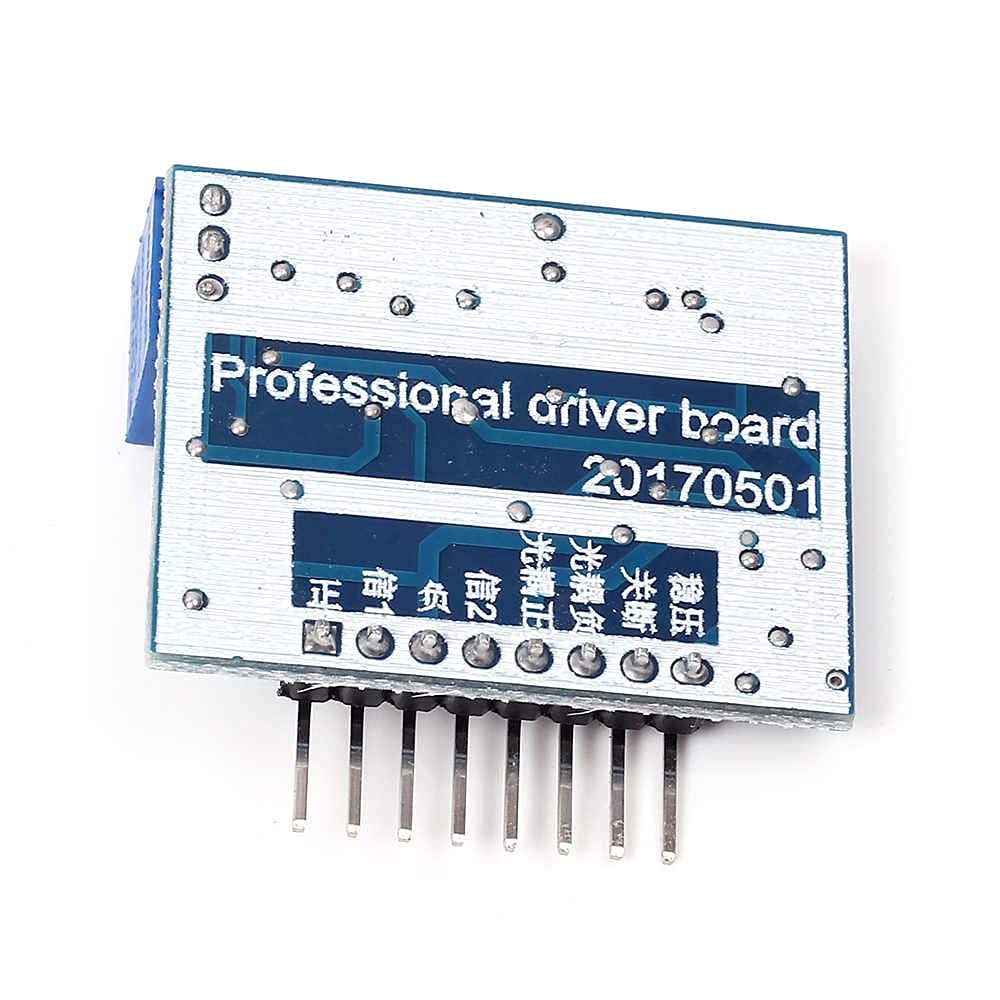

Pin Description:
- Positive power supply
- The signal output
- The power anode
- The signal output
- Positive input optocoupler
- The output of the negative optocoupler
- The signal turns off on the short legs
- Feet of pulse width adjustment
Package Includes:
- 1 X Inverter Driver Board SG3525 LM358 Mixer Preamp Drive Board
