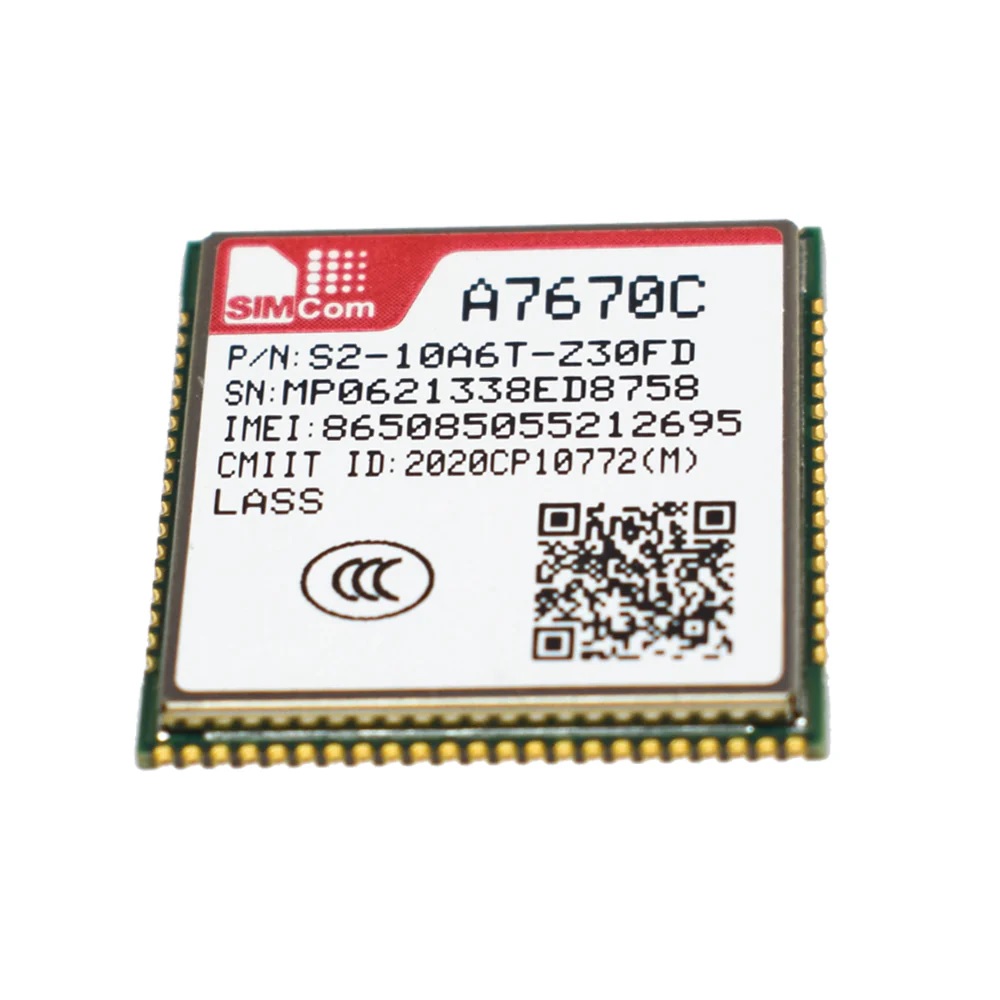

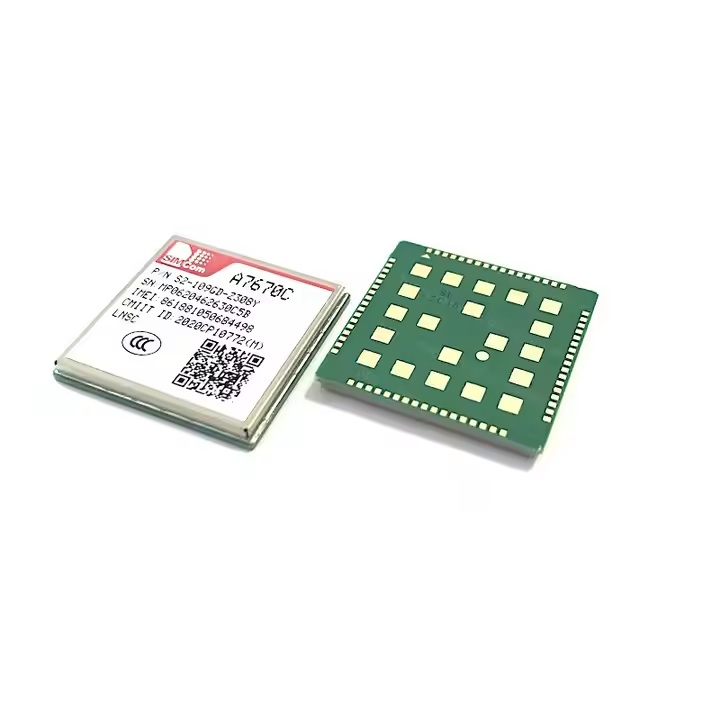

SIMCOM A7670C LTE 4G Wireless Solution Module

The SIMCOM A7670C LTE 4G Wireless Solution Module is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/m GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. The A7670 series adopts LGA form factor and is compatible with SIM7000/SIM7070 series(NB/Cat M modules), and SIM800A/SIM800F(2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.

The SIMCOM A7670C series supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules. Meanwhile the A7670 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc.

Features:

• Suitable for LTE and GSM networks
• Supports LTE-FDD, LTE-TDD, and GSM, frequency bands.
• Control via AT commands.
• Supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
• Abundant software functions: FOTA, LBS, SSL
• The form factor of A7670 series are compatible with the SIM7000/SIM7070 series
• Supported Band: LTE-FDD B1/B3/B5/B8 , LTE-TDD B34/B38/B39/B40/B41

Package Includes:

• 1 x SIMCOM A7670C LTE 4G Module

Useful Link:

• A7670C GSM Module – Datasheet
