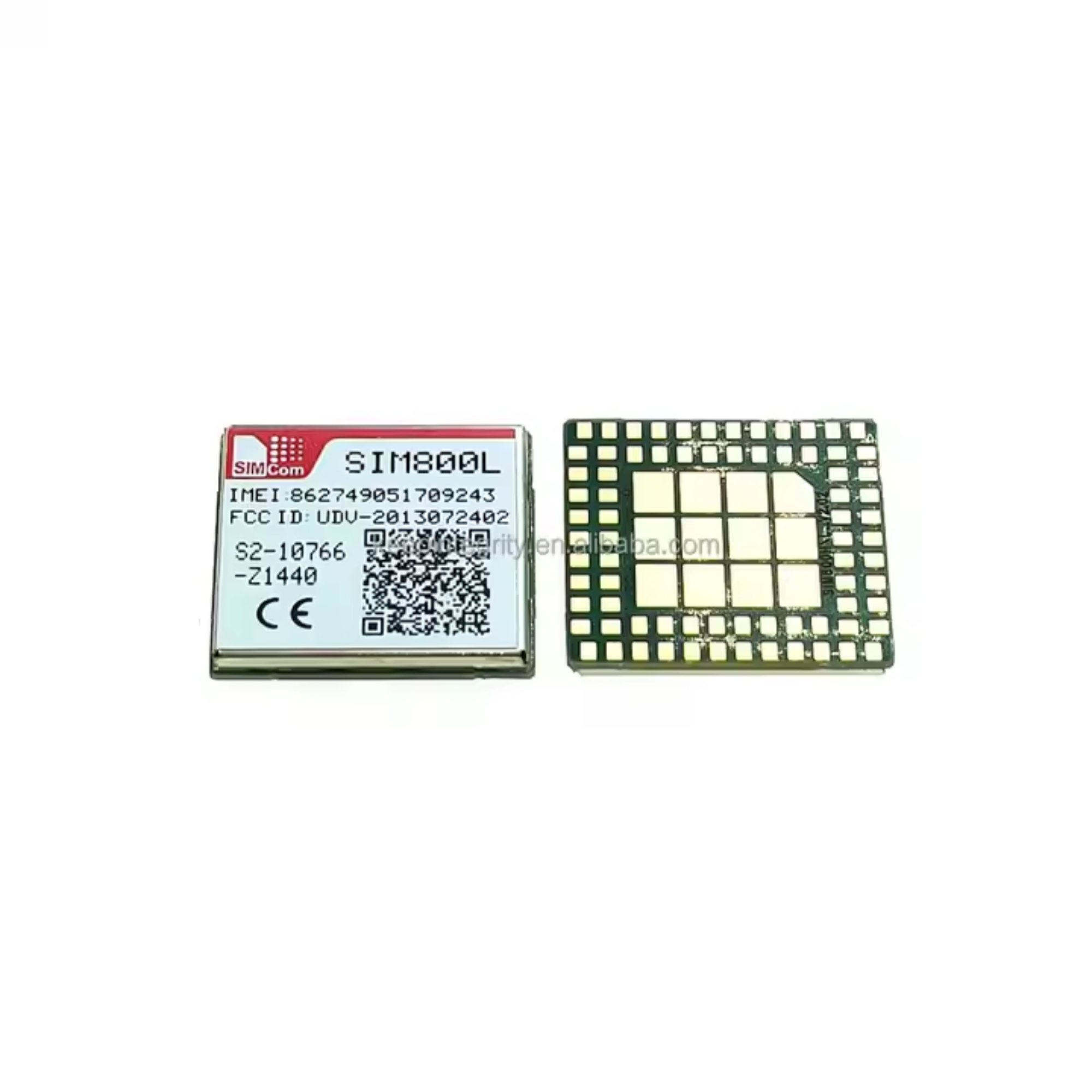

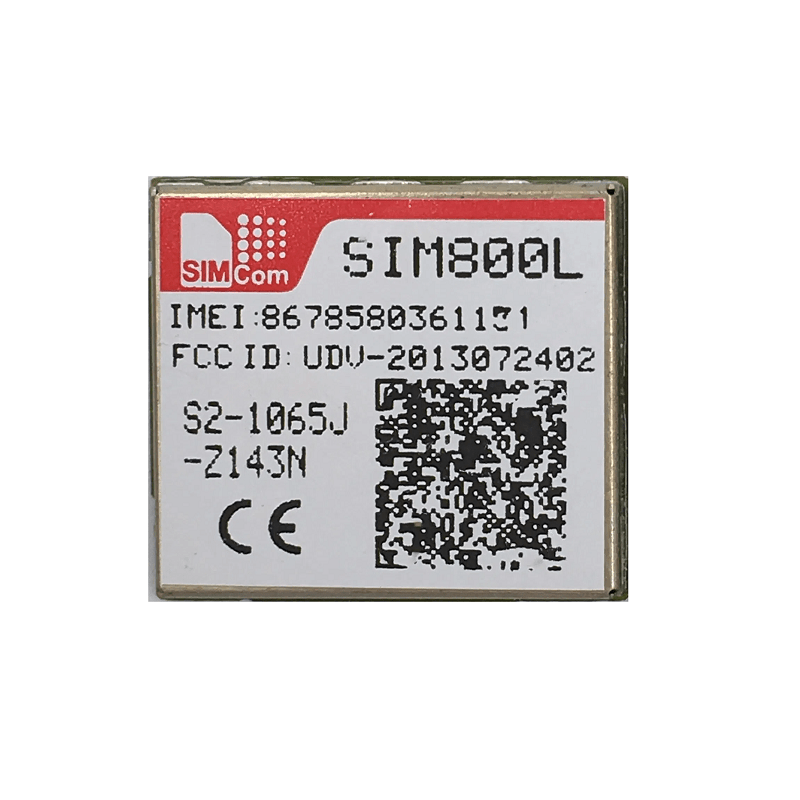

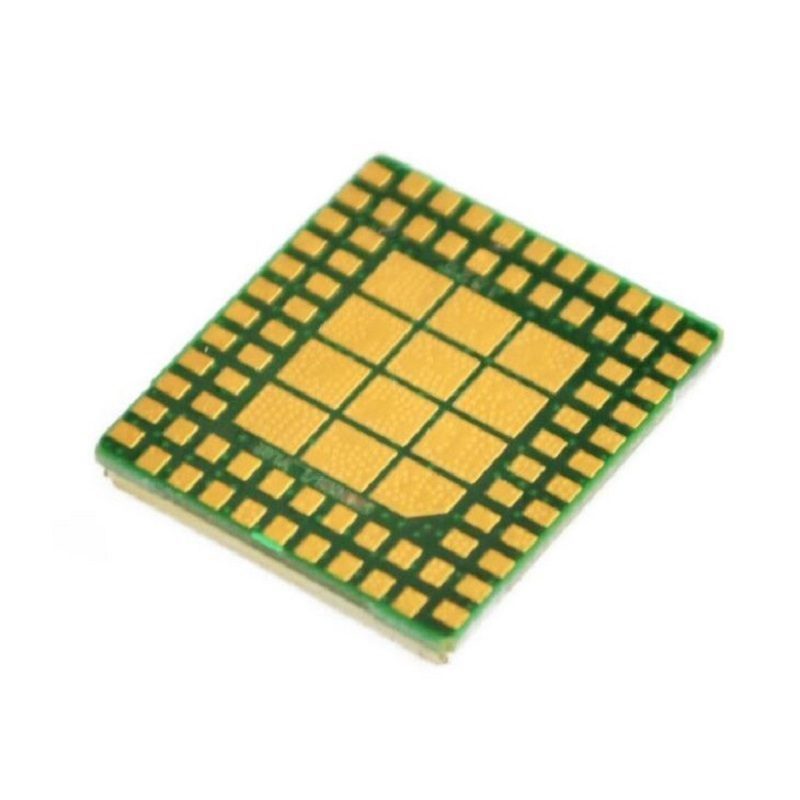

SIM800 SIM800L GPRS GSM Chip – Original

SIM800 SIM800L GPRS GSM Chip – Original is a complete Quad-band GSM/GPRS solution in an SMT type, which can be embedded in the customer applications. These modules are sub-systems of the Internet-of-everything hardware. SIM800L supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS, and data information with low power consumption. With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into the slim and compact demands of customer design.

Features:

• Supports 5*5*2 keypads
• One full modem serial port, the user can configure two serial ports.
• One USB, the USB interfaces can debug, download software.

Specifications:

• Input Supply Voltage (VDC): 3.8 ~ 4.2
• Power Consumption: sleep mode < 2.0mA : idle mode < 7.0mA : GSM transmission (avg): 350 mA : GSM transmission (peek): 2000mA
• Interface: UART
• Supported frequencies: Quad Band (850 / 950 / 1800 /1900 MHz)
• Working Temperature Range (°C): -40 to 85
• Length (mm): 17
• Width (mm): 15
• Height (mm): 2
• Weight (gm): 0.8

Package Includes:

• 1 x SIM800 SIM800L GPRS GSM CHIP
