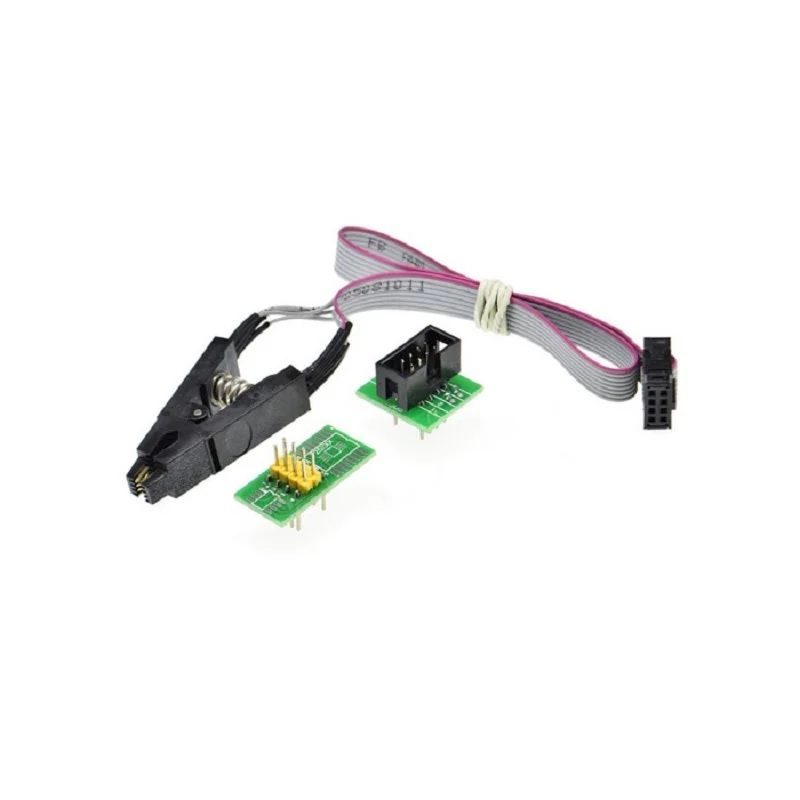

SPI BIOS FLASH Non-Dismantling Test Program Clip SOP8 24C 93C 25LF

This is an SPI BIOS FLASH Non-Dismantling Test Program IC programming clip that is perfect for reading or writing EEPROMs. This clip allows for in-circuit programming of SOP8 chips.

Now you can program SOP8 chips without having to remove them from the circuit board, just clip to the chip and use one of the two breakout adapter boards to connect to your programmer like CH341a. The ISP cable is wired 1:1 so will support any programmer that has a ZIF/DIL socket and supports ISP/ICSP Mode

Features:

• Tests SPI BIOS FLASH chips without removal.
• Compatible with SOP8 packaged chips.
• Supports 24C, 93C, and 25LF series.
• Easy clip-on design for secure testing.
• Saves time and avoids chip damage.
• Useful for diagnostics and repairs.

Specifications:

• Supports many different EEPROMS 150mil / 209mil – 24Cxx, 25Cxx, 93Cxx, 95xxx, 25Lxx
• Pitch Lead: 2.54mm
• Pitch row: 3.81mm
• SOIC 8 / SOP8 Clip
• Spring Loaded

Package Includes:

• 1 x SPI BIOS FLASH Non-Dismantling Test Program Clip SOP8 24C 93C 25LF
