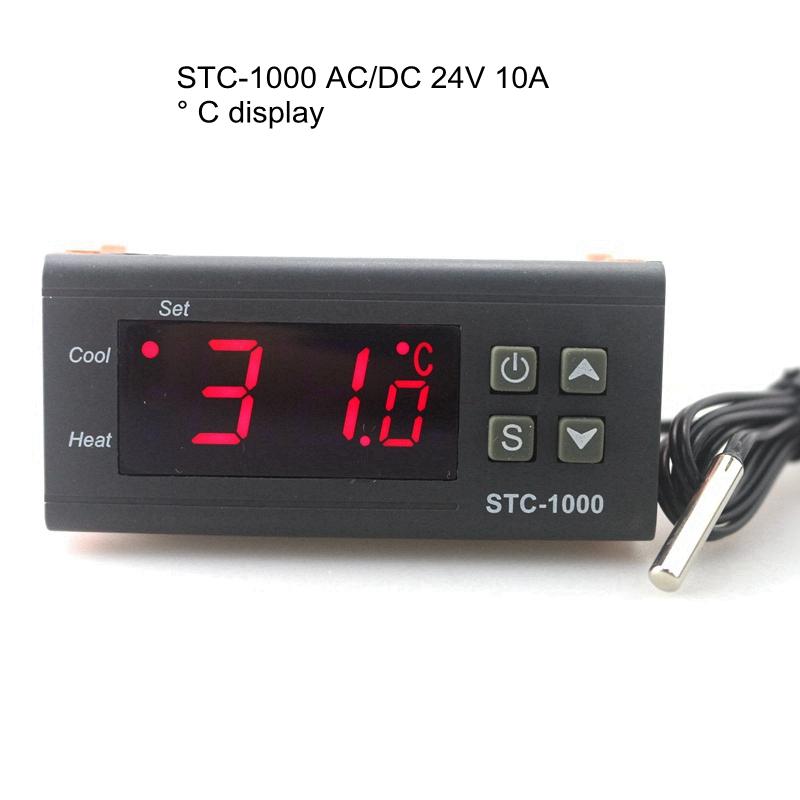

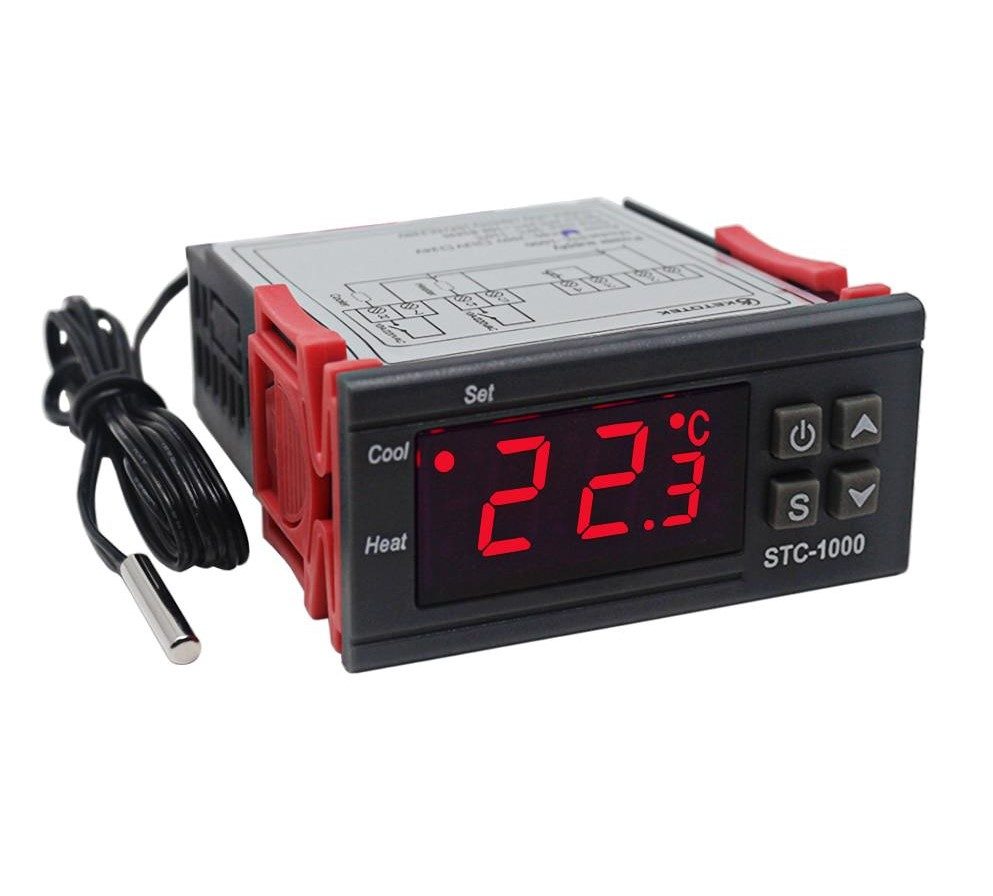

STC-1000 DC24V Digital Temperature Controlled Thermostat Switch

STC-1000 DC24V Digital Temperature Controlled Thermostat Switch is a temperature-controlled thermostat switch that can be used to control the heating/cooling of an object with the help of the NTC sensor to detect the temperature.

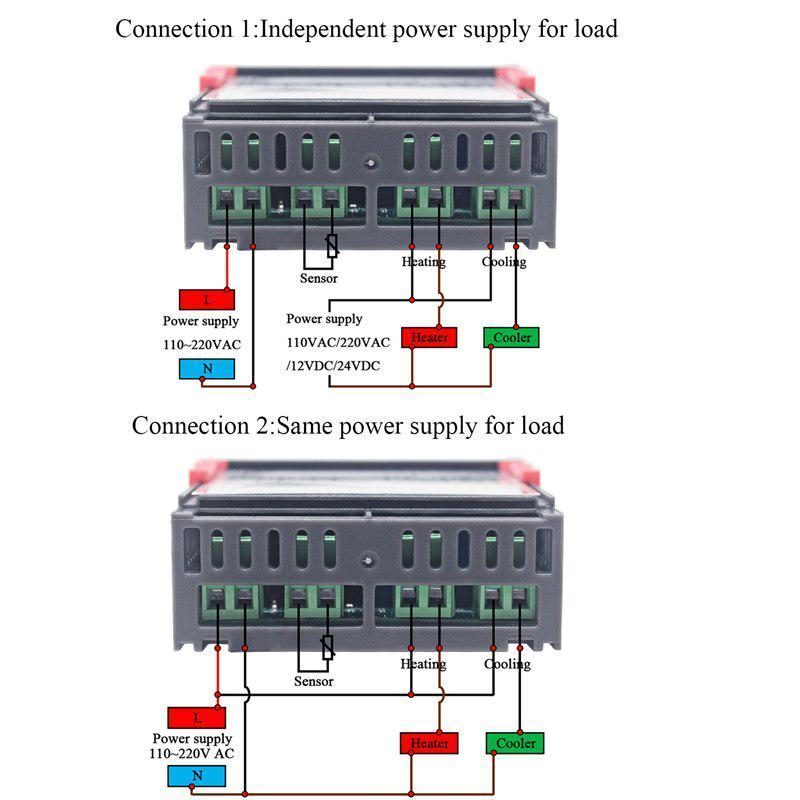

This STC 1000 Digital Temperature Controller module is operated by the 24VDC connected at the input terminals. The module has two output ports where you can connect the equipment to heat or cool the test system.

Features:

• Mini temperature controller.
• With a clear LED display for better readability.
• Wide temperature measuring range.

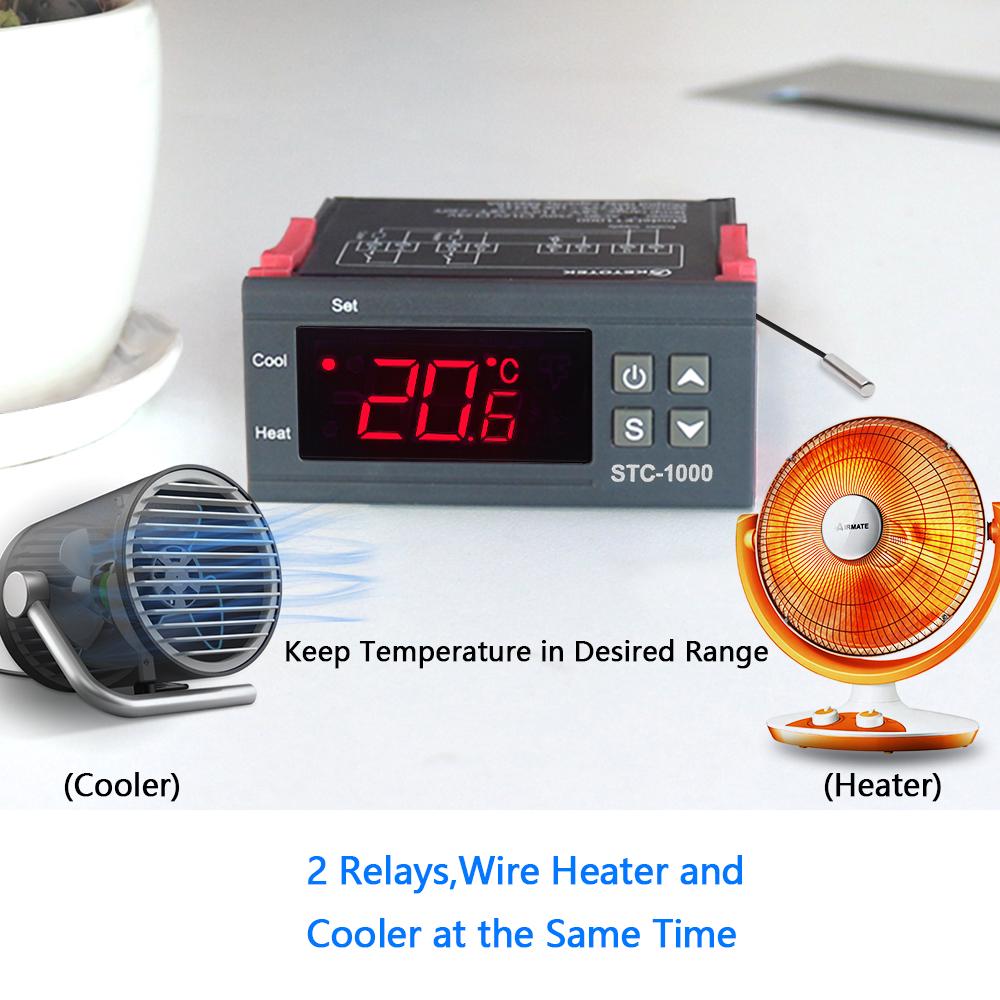

• Dual heating and cooling control.
• Automatic over-temperature alarm
• High Control precision 0.1 centigrade
• Switch the modes between cool and heat;
• Control temperature by setting the temperature setting value and the difference value;
• Temperature calibration;
• Refrigerating control output delay protection;
• Alarm when temperature exceeds temperature limit or when sensor error.
• All parameters setting can be saved when power off.

Specifications:

• Model: STC-1000
• Operating Voltage (VDC): 24
• Temperature Measuring Range: -50 to 90°C
• Control Temperature Difference: 0.3 to 10°C (Adjustable)
• Relative Humidity: 20 to 85%
• Resolution: 0.1°C
• Accuracy: ± 1°C
• Sensor: NTC sensor
• Sensor Cable Length: 1m
• Relay Output Capacity: Heating: 10A (max) 250 V, Cooling: 10A (max) 250V

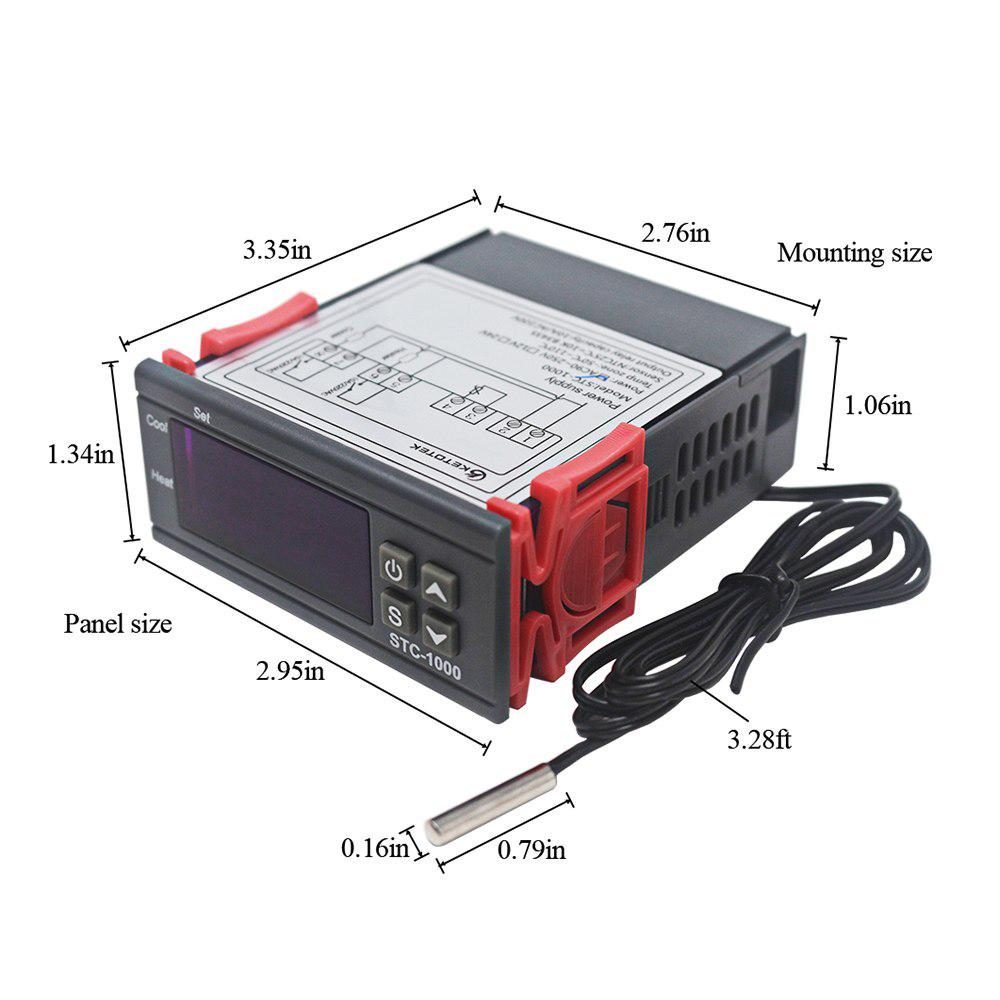

• Length (mm): 84
• Width (mm): 69
• Height (mm): 34
• Weight (gm): 100

Application:

• Outdoor use uses involving potential chemical contamination or electrical interference
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems
• Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
• Systems, machines, and equipment that could present a risk to life or property
• Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.

Package Includes:

• 1 x STC 1000 DC24V Digital Temperature Controlled Thermostat Switch
