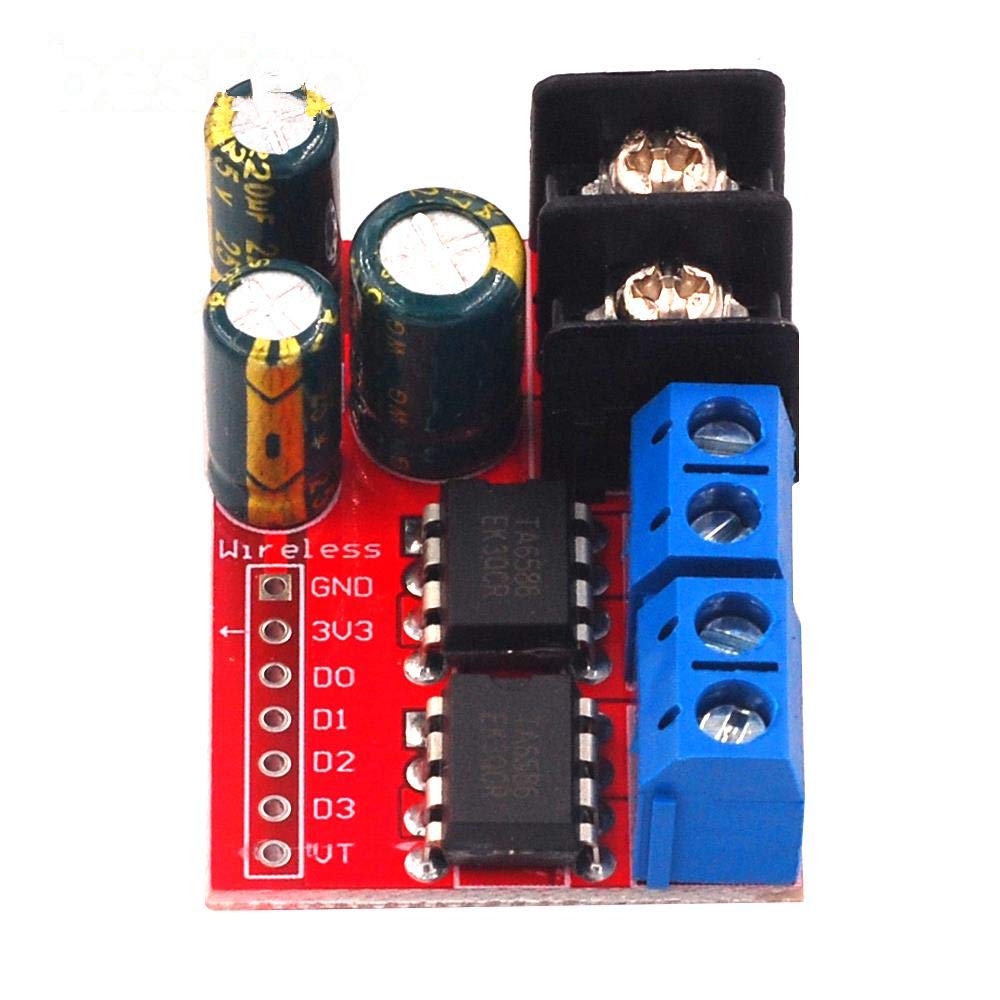

TA6586 Based 5A Dual DC Motor Driver Module

TA6586 Based 5A Dual DC Motor Driver Module is a H Bridge Remote Control 5A 3V-14V Dual DC Motor Drive Module with DC Motor Speed Controller works on Reverse Pulse Width Modulation. It uses the popular TA6586 IC. It can control up to 2 DC motors with directional and speed control.

This 6586 motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line-following robots, robot arms, etc.

Features:

• Heavy-duty screw terminal for the input.
• Can drive up to 5A of current.
• Drives 2 motors.
• Support 433MHz remote control(Not included).

 Specifications:

• Model: TA6586
• Working Voltage: DC 3.0V-14V
• Input Signal Voltage: DC 2.2V-6.0V
• Drive Current: 5A
• Stand-by Current: 10uA
• Working Temperature: -20 to 85 DegC
• Working Humidity: 0%-95%RH

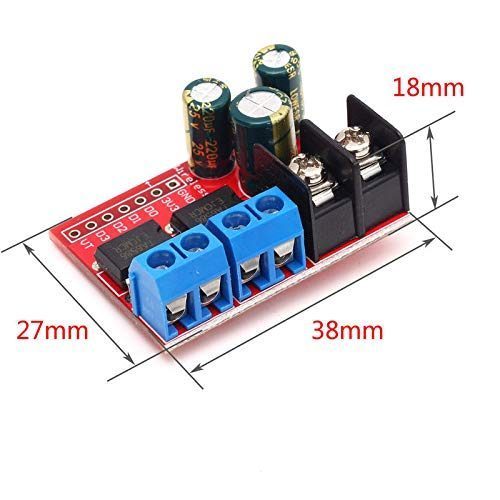

• Dimensions (mm): 38x27x18
• Mounting hole diameter (mm): 2

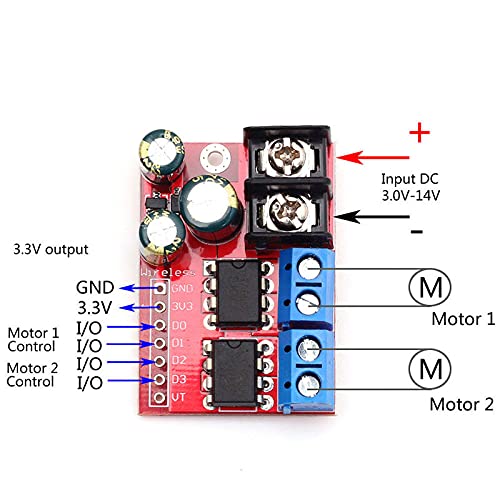

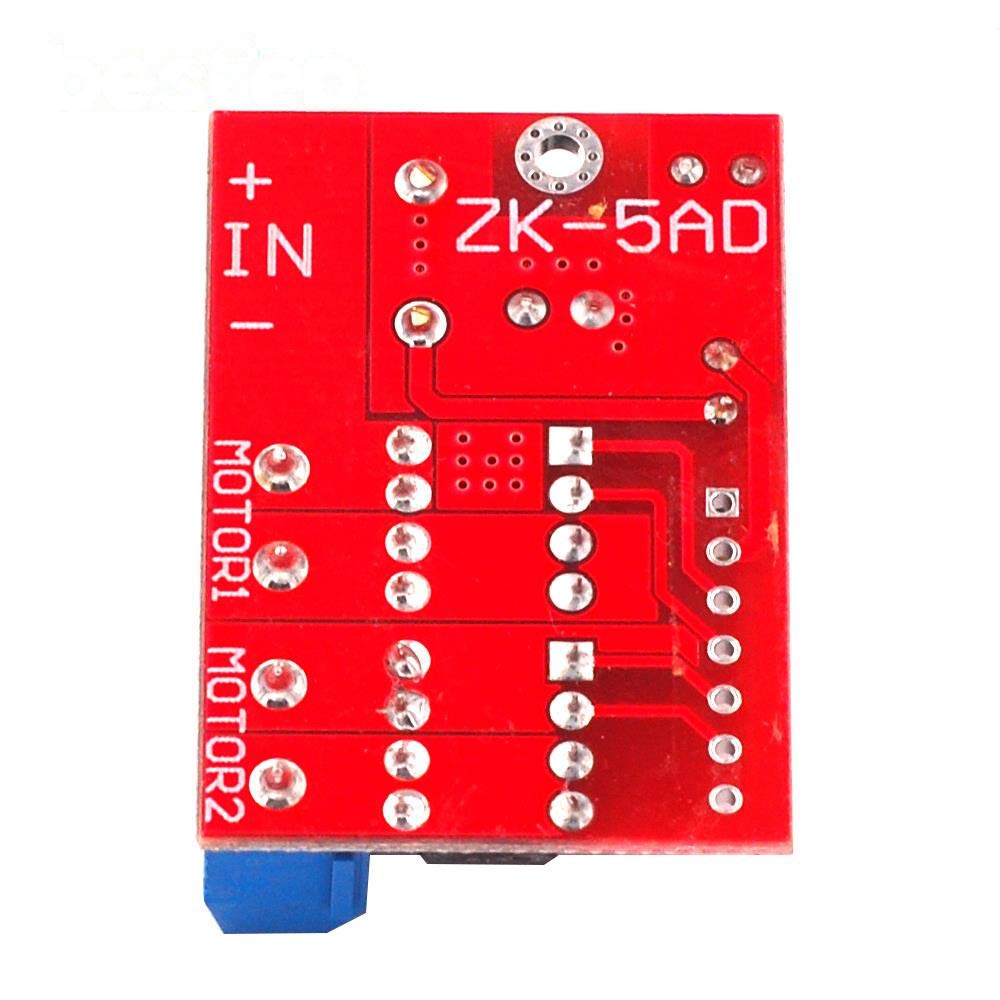

Pins:

• MOTOR1: Motor A output
• MOTOR2: Motor B output
• IN D1: 1st input for Motor A
• IN D2: 2nd input for Motor A
• IN D3: 1st input for Motor A
• IN D4: 2nd input for Motor B

Conventional control method:

1. Module can control 2 DC motors separately.
2. D0 and D1 control Motor 1;
3. D2 and D3 control Motor 2;
4. High level signal is DC 2.2V-6.0V;
5. Low level signal is DC 0.0V-0.7V;
6. D0~D3 can receive control signal from MCU and other signal source;

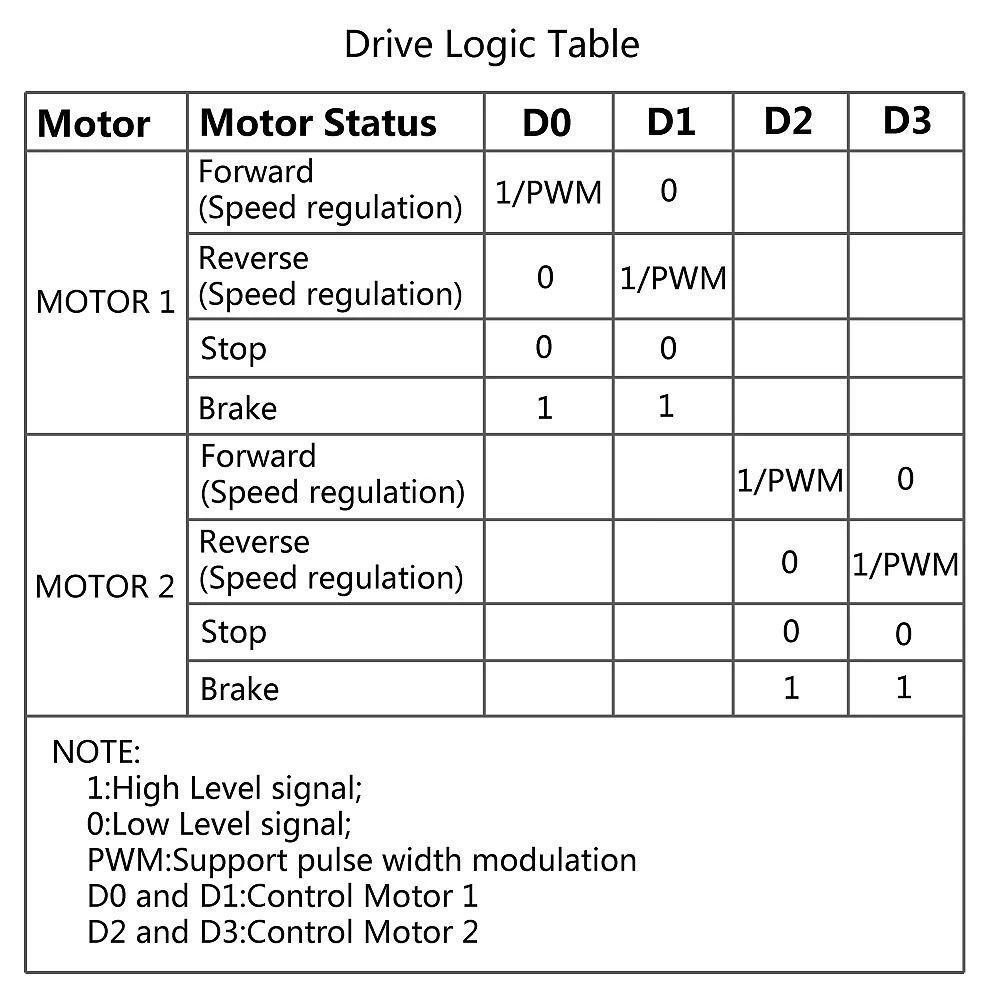

7. Control logic by Drive Logic Table shown as following in description picture.

Remote Control Mode:

1. It can be control by 433MHz Wireless Remote Control Switch Module. User can connect output from 433MHz receiver to input interface at motor drive module. But 433MHz Wireless Remote Control Switch Module is not include in this package! User need to prepare in advance or purchase separately.
2. Its communication distance will just be about 20~30 meter if control motor. Due to interference from motor.
3. Inching Mode: Motor rotation when press button and stop rotation when release button. Two motor’s work status are independent of each other.
4. Self-locking Mode: Motor rotation when press button and stop rotation when press button again. Two motor’s work status are independent of each other.
5. Interlocking Mode: Motor 1 will stop when Motor 2 is working; Motor 2 will stop when Motor 1 is working; Two motor’s work status are not independent.
6. When changing the direction of rotation of the motor, please be sure to wait for the motor to completely stop, otherwise the module will be damaged due to excessive current.
7. More information please refer to data sheet about 433MHz Wireless Remote Control Switch Module.

 Note:

• When changing the direction of rotation of the motor, please be sure to wait for the motor to completely stop, otherwise the module will be damaged due to excessive current;
• Please don’t short circuit;
• Reverse connection protection is not supported;
• 433MHz Wireless Remote Control Switch Module is not include in this package! User need to prepare in advance or purchase separately.

Application:

•  Wireless remote control car;
• Ship model;
• Model airplane;
• Wireless temperature and humidity detection;
• Intelligent data collection;
• Motor drive.

 Package Includes:

•  1 x TA6586 Based Motor Driver Module
