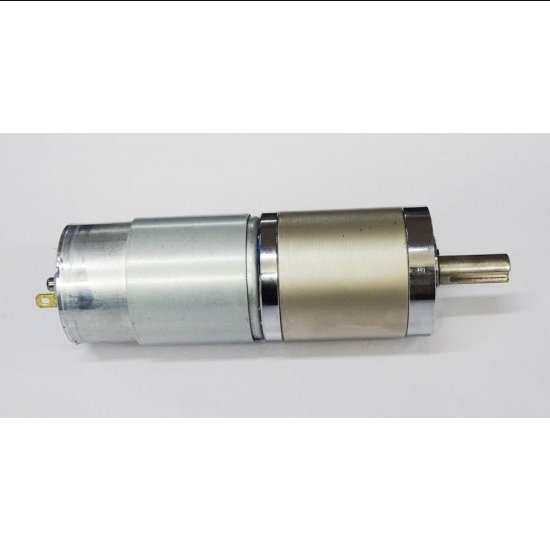

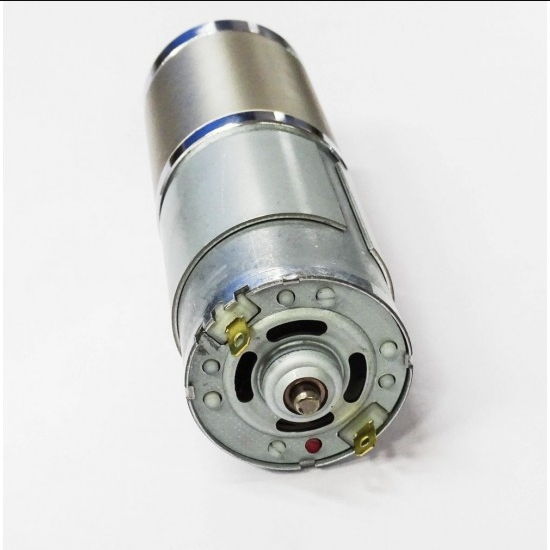

Tauren Planetary Gear DC Motor Series 500 - 12V, 350 RPM
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil669Tauren Planetary Gear DC Motor Series 500 - 12V, 350 RPM comes with metal gearbox and centered shaft. Shaft is loaded with bearing for wear resistance.
The planetary geared motors are always well known for their low backlash and higher efficiency characteristic to meet the higher expectation. Tauren Planetary Gear Motor has Epicyclic Gear Train motors are very popular amongst our Robotics designer.
This is 12V DC motor which has a gearbox of 50 mm diameter. The planetary type gearbox of this motor has a metal gears and a center shaft. The Shaft of the motor is loaded with bearing for wear resistance and smooth operation.
We highly suggest you this motor for the general purpose automation projects requiring considerable torque range.
Features:
- The motor comes with metal gearbox and centered shaft.
- Shaft is loaded with bearing for wear resistance
- Brushed permanent magnet DC motor
- Variable speed and reversible
- Planetary Gear Box
Specifications:
|
Motor Model |
Tauren Planetary Series 500 |
|
Output (RPM) |
350 |
|
Rated Torque(kg-cm) |
5 |
|
Stall Torque(Kg-Cm) |
25 |
|
Current(A) |
600 mA to 14 A (max) |
|
Rated Voltage(V) |
|
|
Motor Diameter(mm) |
50 |
|
Motor Length(mm) |
98 |
|
Shaft Diameter (mm) |
10 |
|
Shaft Length (mm) |
27 |
|
Weight (gm) |
750 |
Application:
Robotics (Robocon events), Electric Controlled valve, robot, wending machine, automatic actuator, automatic doors, coin refund devices, money detector, soft napkin machine, infusion pumps
Package Includes:
- 1 x Tauren Planetary Gear DC Motor Series 500 - 12V, 350 RPM
