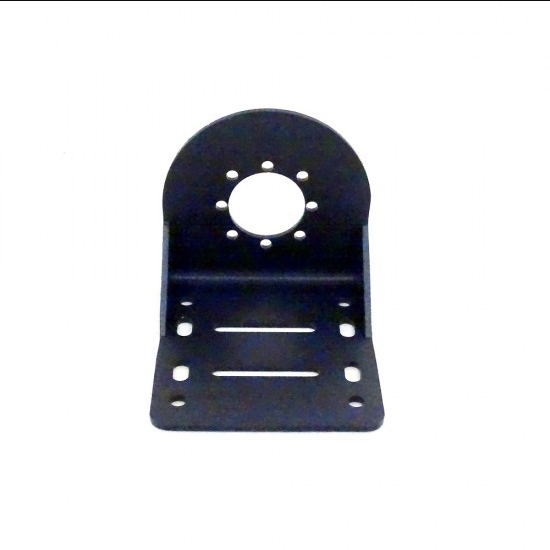

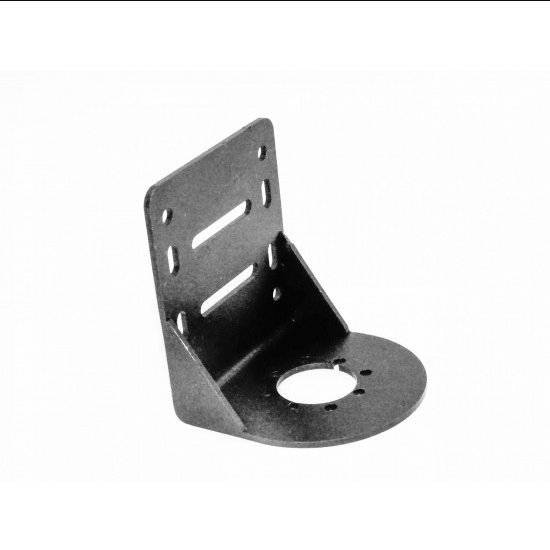

Universal Bracket For HD and IG32 Planetary DC Geared Motor (Bend)
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil672This Mounting Bracket is designed for HD Planetary and IG32 Planetary DC Geared Motor to mount it on the chassis/frame firmly and securely. The Universal Bracket For HD and IG32 Planetary DC Geared Motor is made from high-quality Hardened Mild Steel.
The Mounting Bracket is designed with one thing in mind, boosting the speed of our customer’s design process by avoiding regular searches for the quality mechanical products at an affordable price.
Use of MS in this bracket gives them good strength and makes them sturdy. Hence this bracket is ready to hold and take the load of your HD Planetary and IG32 Planetary DC Motor.
Specifications:
|
Material |
Mild Steel |
|
Motor Type |
HD & IG32 Planetary DC Motor |
|
Length (mm) |
67 |
|
Width (mm) |
60 |
|
Height (mm) |
57 |
|
Weight (gm) |
115 |
|
Motor Mounting Hole Dia. (mm) |
3 |
Applications :
- Numerically controlled machinery.
- Factory automation robots.
- DC motor position / velocity control.
- In Robotics to mount a motor properly and support the motor
Package Includes :
- 1 x Universal Bracket For HD and IG32 Planetary DC Geared Motor (Bend)
- 4 x M4 size Bolt, Nut, and Washer Set.
- 4 x M3 size Bolt for Motor mount.
