TMC2209 Stepper Motor Driver Module

The TMC2209 Stepper Motor Driver Module is a stepper motor driver module that provides reliable and precise motor control for 3D printers, CNC machines, and other robotic applications. It is based on the Trinamic Motion Control’s stealthChop2 technology, which provides silent and smooth operation of the motor.

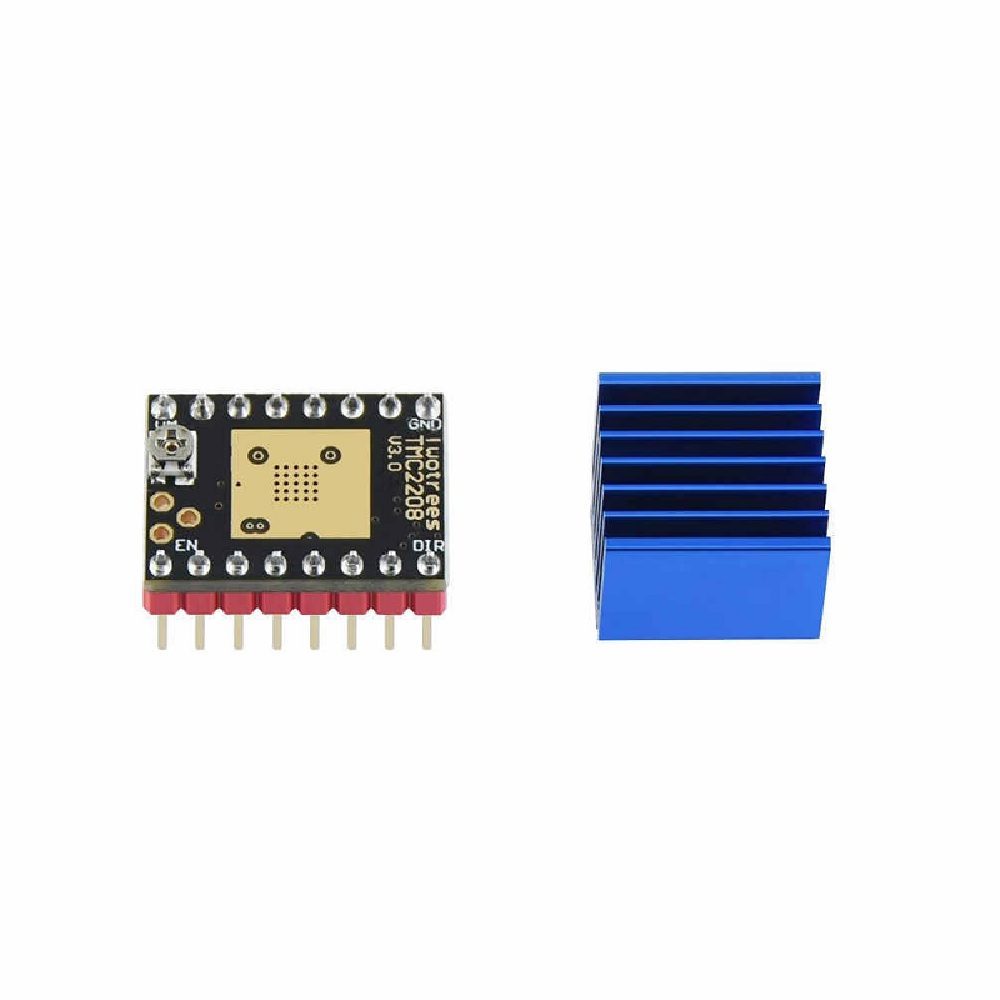

The module comes with a built-in heat sink that helps to dissipate heat and keep the driver cool during operation. This is especially important when using the driver at high currents or for long periods of time. The heat sink helps to prevent the driver from overheating, which can cause the motor to lose steps or even fail.

The latest version of the TMC2209  takes the UART out and uses the UART function directly, eliminating the need for more wiring.

Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is the limited system can still be perfect to achieve sinusoidal control; As stealth chip, fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign.

Both components have pulse/direction input, can be a completely independent operation. The configuration is implemented via a digital input.

Features:

• Works with 3.3V and 5V signals
• Supports up to 1/256-step
• Supported configuration via CFG pins or UART
• Has StealthChop technology for quieter stepper motors
• Has SpreadCycl technology for smoother movements
• Security built-in for high temperatures, high currents, low voltage, and short circuit
• Comes with heatsink for better cooling

Specifications:

• Voltage Range: 4.75-29V DC
• Maximum Current: 2A per phase, 2.8A peak per phase
• Length (mm): 21
• Width (mm): 15
• Height (mm): 13
• Weight (gm): 6

Package Includes:

• 1 x TMC2209 Stepper Motor Driver
• 1 x Heatsink
