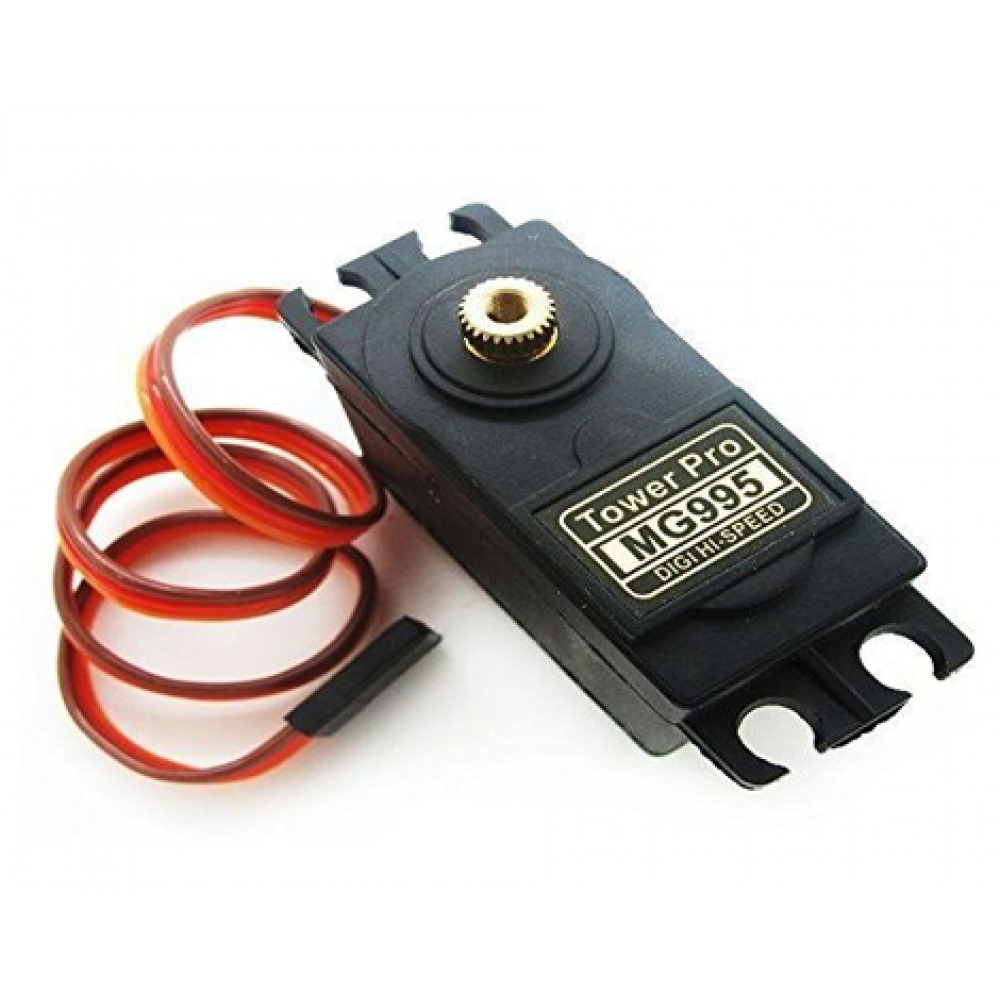

TowerPro MG995 Metal Gear Servo Motor - 360 Degree 11 kg-cm - Good Quality
TowerPro MG995 - 360 Degree Metal Gear Servo Motor is a high-speed standard servo can rotate Continuous rotation 360 degrees. You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.
This is the most famous servo made by TowerPro . MG995 is a digital metal gear high torque servo for airplane, helicopter, RC-cars and many RC model.
Features:
- The connection cable is thicker.
- Equips high-quality motor.
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Specifications:
|
Model |
MG995 |
|
Weight(gm) |
55 |
|
Operating Voltage |
4.8 – 7.2 V |
|
Operating Speed @4.8V |
0.20sec/60° |
|
Operating Speed @6.6V |
0.16sec/60° |
|
Stall Torque @4.8V |
9.40 kg-cm |
|
Stall Torque @6.6V |
11 kg-cm |
|
Operating Temperature (°C) |
-30 to 60 |
|
Dead Band Width |
4 μs |
|
Gear Type |
Metal |
|
Rotational Degree |
360 |
|
Servo Plug |
JR |
|
Cable Length |
0.3 m (30 cm) |
|
Length (mm) |
40.5 |
|
Width (mm) |
20 |
|
Height (mm) |
44 |
Wire Description:
- RED – Positive
- Brown – Negative
- Orange – Signal
PACKAGE INCLUDES :

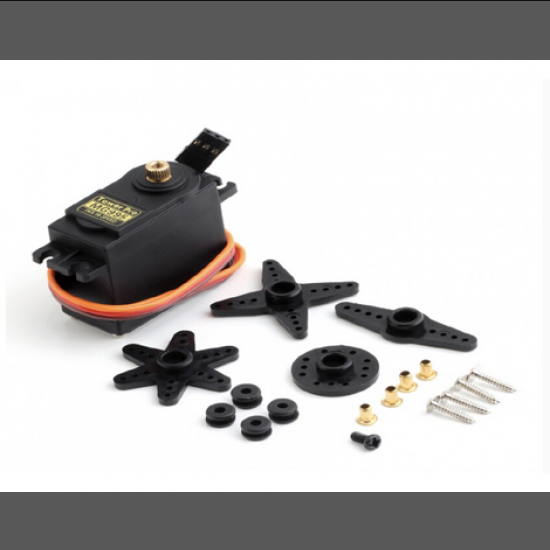

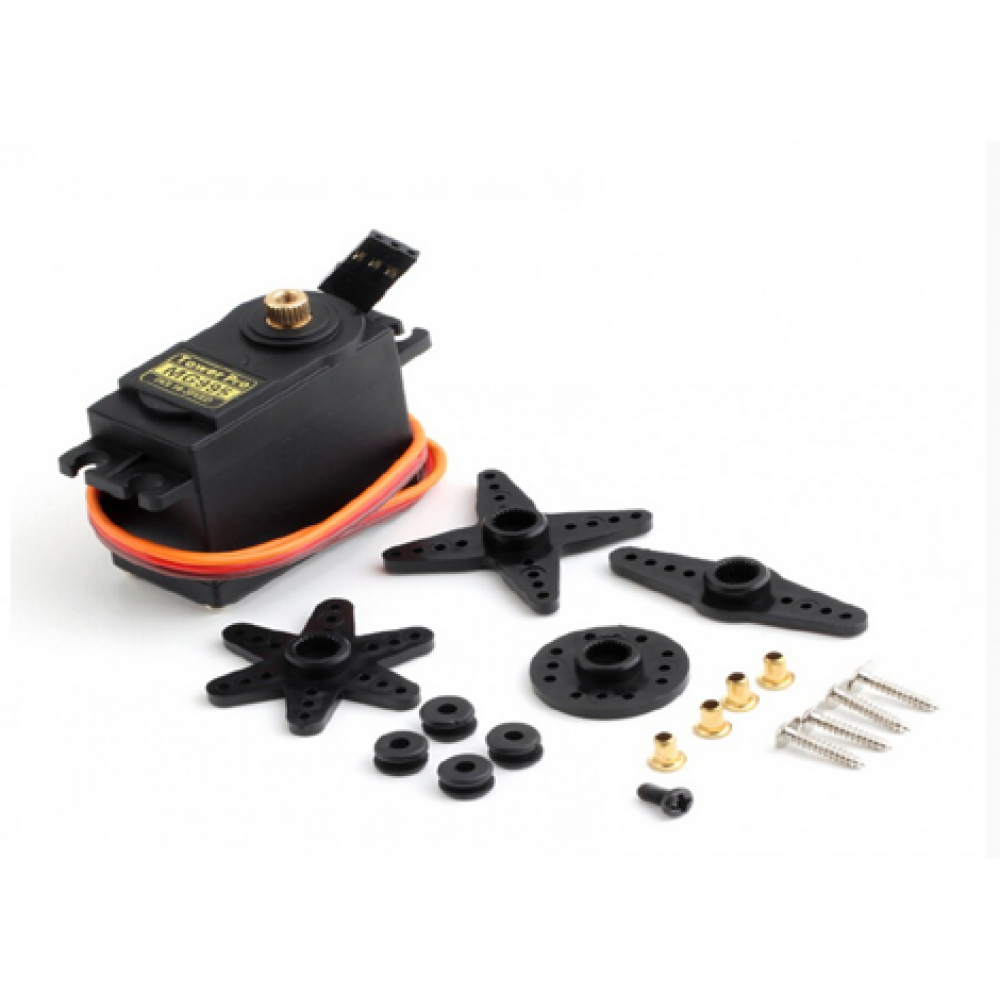

- 1 x TowerPro MG995 Metal Gear Servo.
- 1 x Mounting accessories set.
