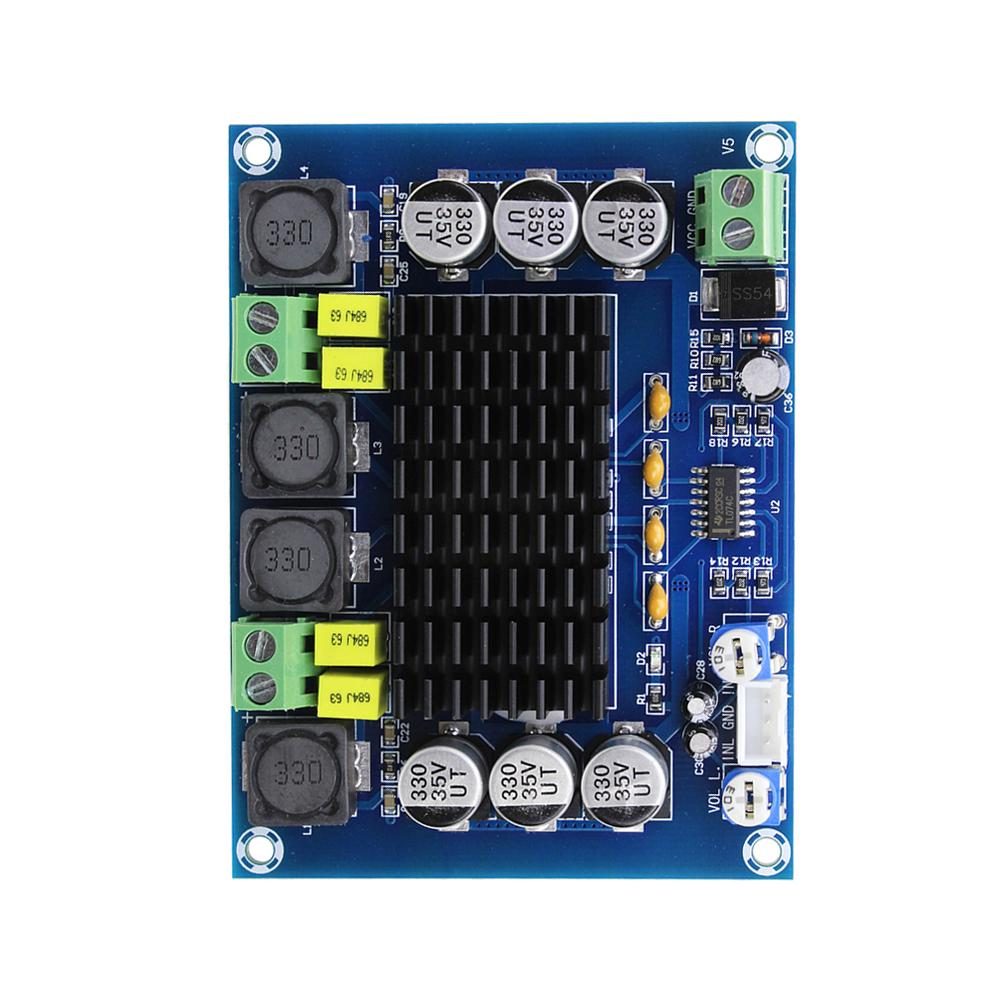

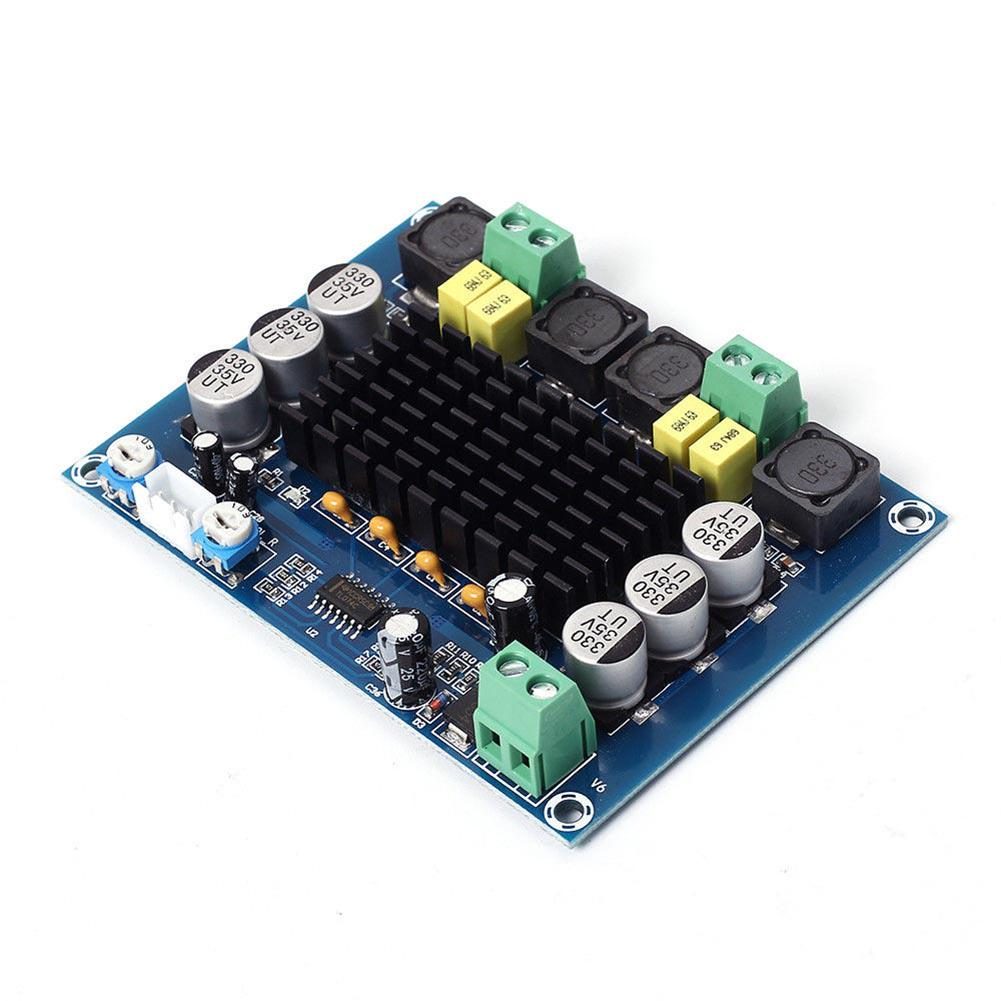

TPA3116D2 XH-M543 120W Dual Channel High Power Digital Power Amplifier Board

TPA3116D2 XH-M543 Dual Channel 120W Digital Power Amplifier Board is newly designed digital audio amplifier board with fine quality is practical to install and use also has good performance. It features high-efficiency class D audio power amplifier with the latest and TPA3116D2 Dual Channel High Power core technology the BTL bridge circuit is more efficient than before. Now build your own music system with 120 watts of stereo output with this module.

This 120W Dual Channel High Power Amplifier Board product uses the double power supply transformer with a dynamic power supply range from 12V to 24V with high efficiency small quiescent current. Additionally, it is equipped with Perfect protection functions like overvoltage protection and output current limit.

Features:

• A strong TPA3116D2 compatible chip is a digital power amplifier chip, with low idle loss characteristics, makes it work well and quickly.
• Onboard, front-facing IC to improve the input sensitivity, high-definition sound quality.
• It can be used for car vehicle computer speaker, family audio and video, and empty square.
• This product has the characteristics of loud sound, the capacitance is large, excellent sound quality.
• There is no solder joint on the back of the circuit board, the chip capacitors, and the solder board together, so there is no possibility of short circuit.

Specifications:

• Operating Voltage Range (VDC): 12 to 24
• Amplifier chip: TPA3116D2
• Output Power (W): DC12V – 2*50W, DC24V – 2*120W
• Signal to Noise Ratio: 100db

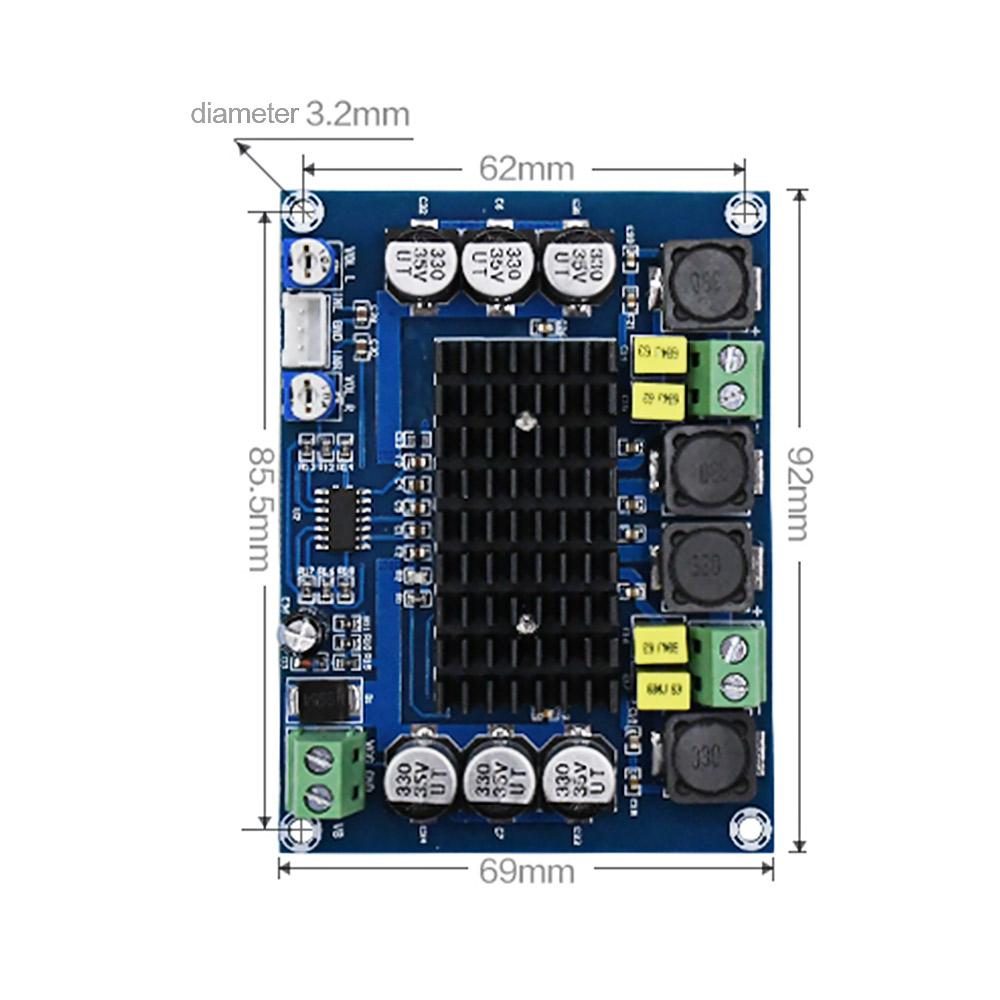

• Length (mm): 92
• Width (mm): 68
• Height (mm): 16
• Weight (gm): 75

Operation instructions:

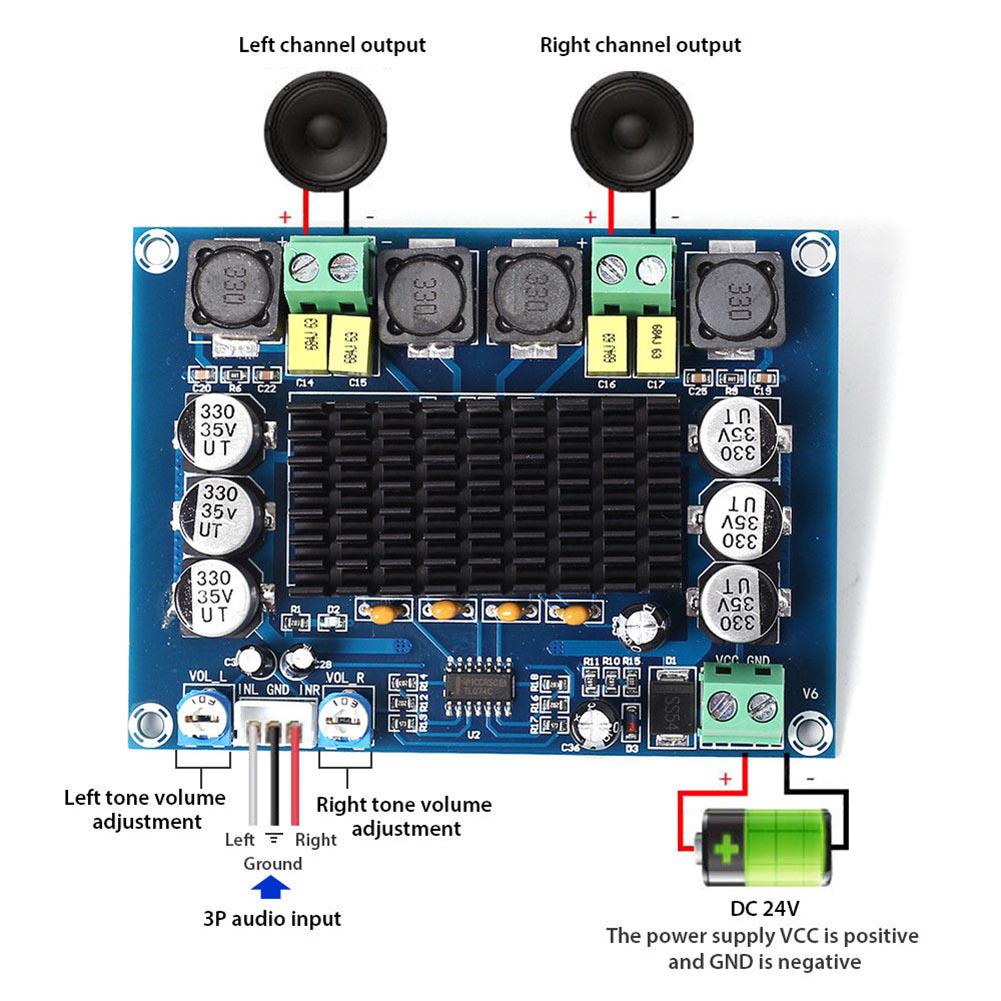

1. Connect the power input terminal to the DC12V—26V power supply (24V is recommended);
2. Connect the audio input to a sound source, such as an MP3, mobile phone, computer, etc.
3. Connect the audio output to the speaker, pay attention to the positive and negative, it is recommended to connect more than 120W professional stage speakers, in order to play its effect

Package Includes:

• 1 x TPA3116D2 XH-M543 120W Dual Channel High Power Digital Power Amplifier Board

Note:

• This module has TPA3116D2 IC with 32pin/16pin which is both compatible for operation of board.
