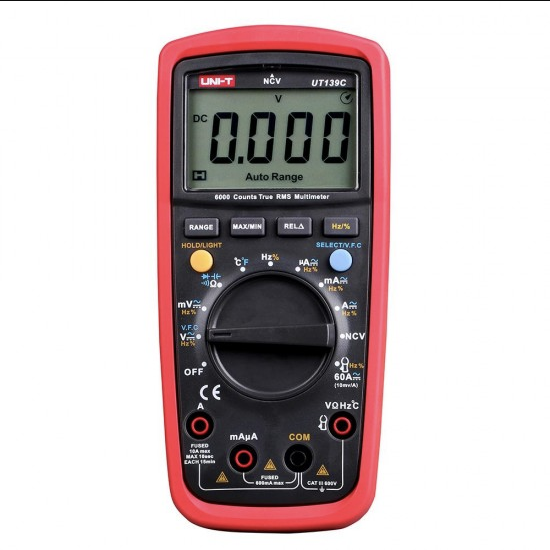

Uni-T UT139C True RMS Digital Multimeter
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil599Uni-T UT139C True RMS Digital Multimeter is a True RMS auto range digital multimeter with 6000 display count, featuring VFC, NCV, Max/Min/Rel measurements. UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
Features:
- MAX/MIN/REL modes
- Data hold, LED backlight, auto power off
- VFC: low pass filter
- Full range protection (600V)
- True RMS
- NCV
- Auto/manual ranges selectable
Specifications:
|
Specifications |
Range |
UT139C |
|
DC voltage (V) |
600V |
±(0.5%+2) |
|
AC voltage (V) |
600V |
±(0.8%+3) |
|
DC current (A) |
10A |
±(0.7%+2) |
|
AC current (A) |
10A |
±(1%+3) |
|
Resistance (Ω) |
60MΩ |
±(0.8%+2) |
|
Capacitance (F) |
99.99mF |
±(4%+5) |
|
Frequency (Hz) |
10Hz~10MHz |
±(0.1%+4) |
|
Temperature (°C) |
-40°C~1000°C |
±(1%+3) |
|
Temperature (°F) |
-40°F~1832°F |
±(1.5%+5) |
|
Features |
||
|
Display count |
|
6000 |
|
Auto range/Manual range |
|
√ |
|
Bandwidth (Hz) |
|
45Hz~1kHz |
|
NCV/Continuity buzzer |
|
√ |
|
Duty cycle |
0.1%~99.9% |
