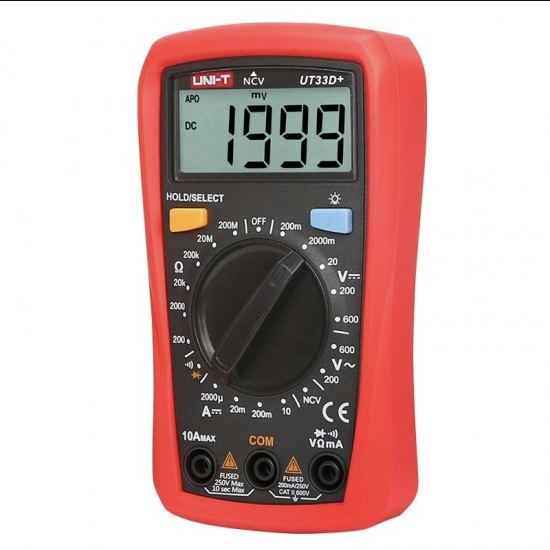

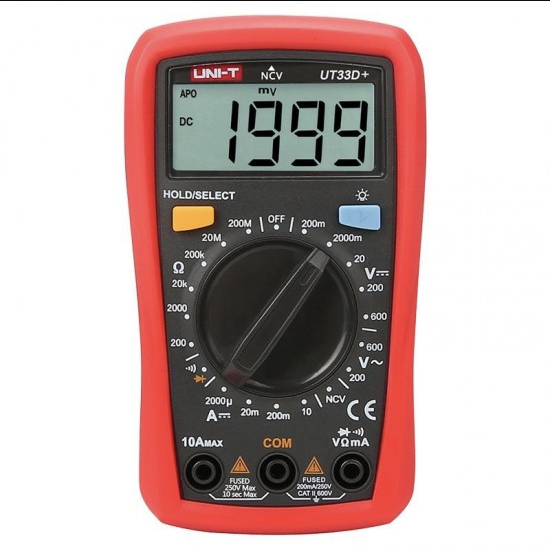

Uni-T UT33D+ Palm Size Digital Multimeter
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil601The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. Uni-T UT33D+ Palm Size Digital Multimeter ensures that users can work safely in CAT II 600V environment. Special features are, 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).
Features:
- Clear LCD display
- Equipped with comfortable protective cover, test lead hanging slot
- 2m drop proof with precision protection
- Auto power off
- Auto backlight off
- Loud buzzer
- Ergonomically designed rotary switch
Specifications:
|
Specifications |
Range |
UT33D+ |
|
DC voltage (V) |
200mV/2V/20V/200V/600V |
±(0.5%＋2) |
|
AC voltage (V) |
200V/600V |
±(1.2%+3) |
|
DC current (A) |
2000μA/20mA/200mA/10A |
±(1%+2) |
|
Resistance (Ω) |
200Ω/2kΩ/20kΩ |
±(0.8%+2) |
|
Features |
||
|
Display count |
|
2000 |
|
Auto power off/Auto backlight off |
|
√ |
|
Diode test/Continuity buzzer |
|
√ |
|
2m drop test/ Test probe holder |
|
√ |
|
Range selection |
|
Manual |
|
NCV |
|
√ |
|
General Characteristics |
||
|
Power |
1.5V battery (R03) x 2 |
|
|
Display |
66mm x 51mm |
|
|
Product net weight |
Red and grey |
|
|
Product color |
206g (batteries included) |
|
|
Product size |
134mm x 77mm x 47mm |
|
