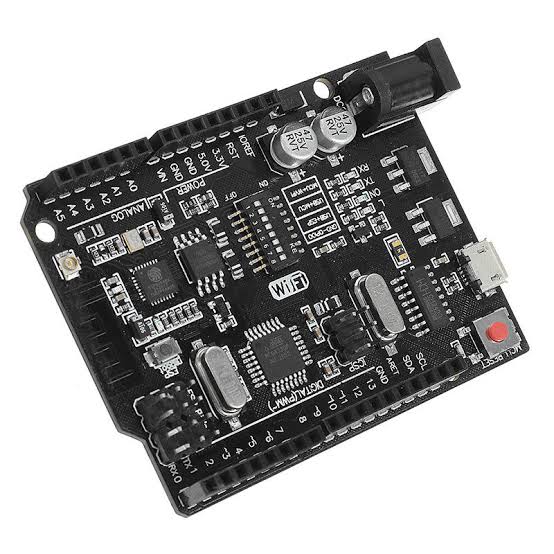

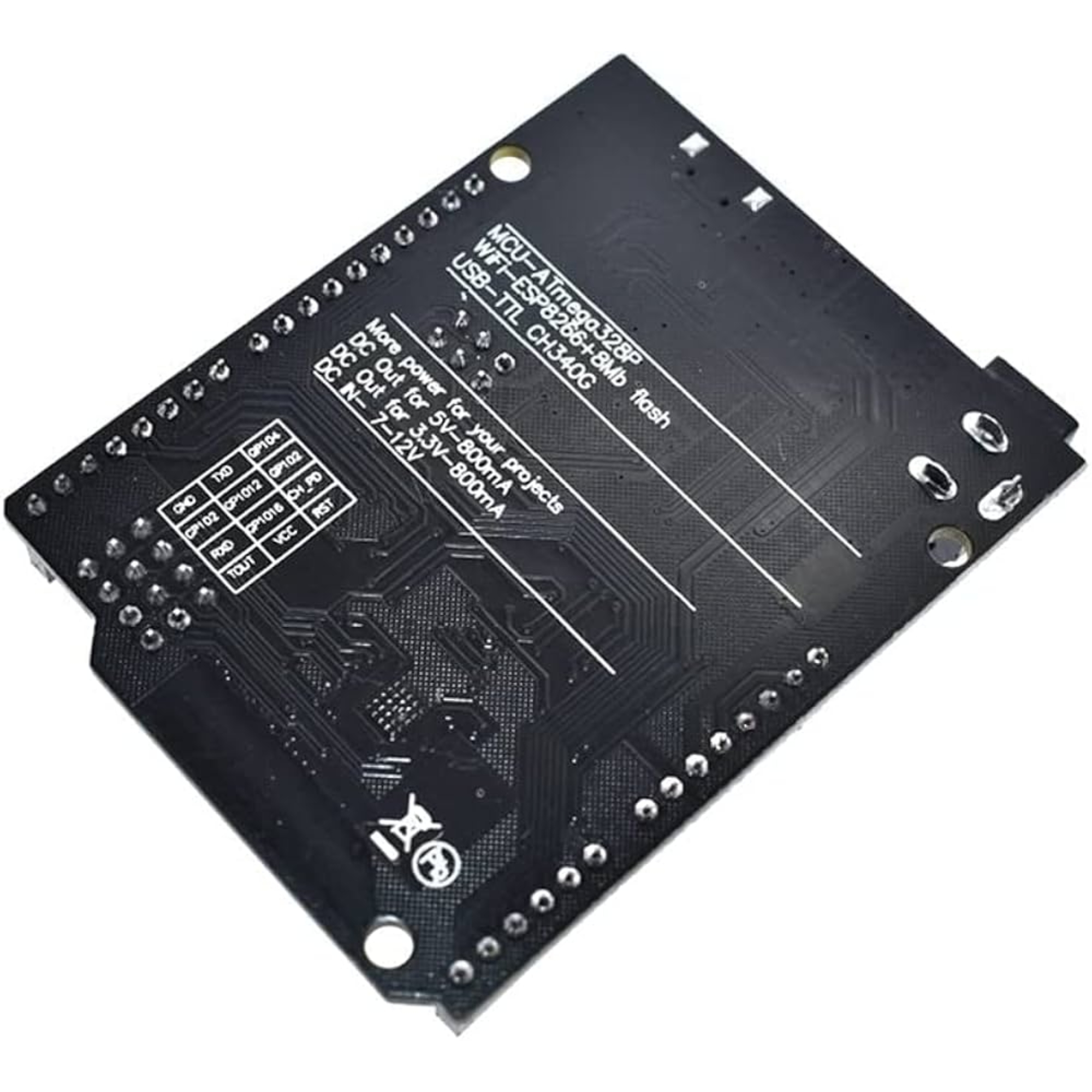

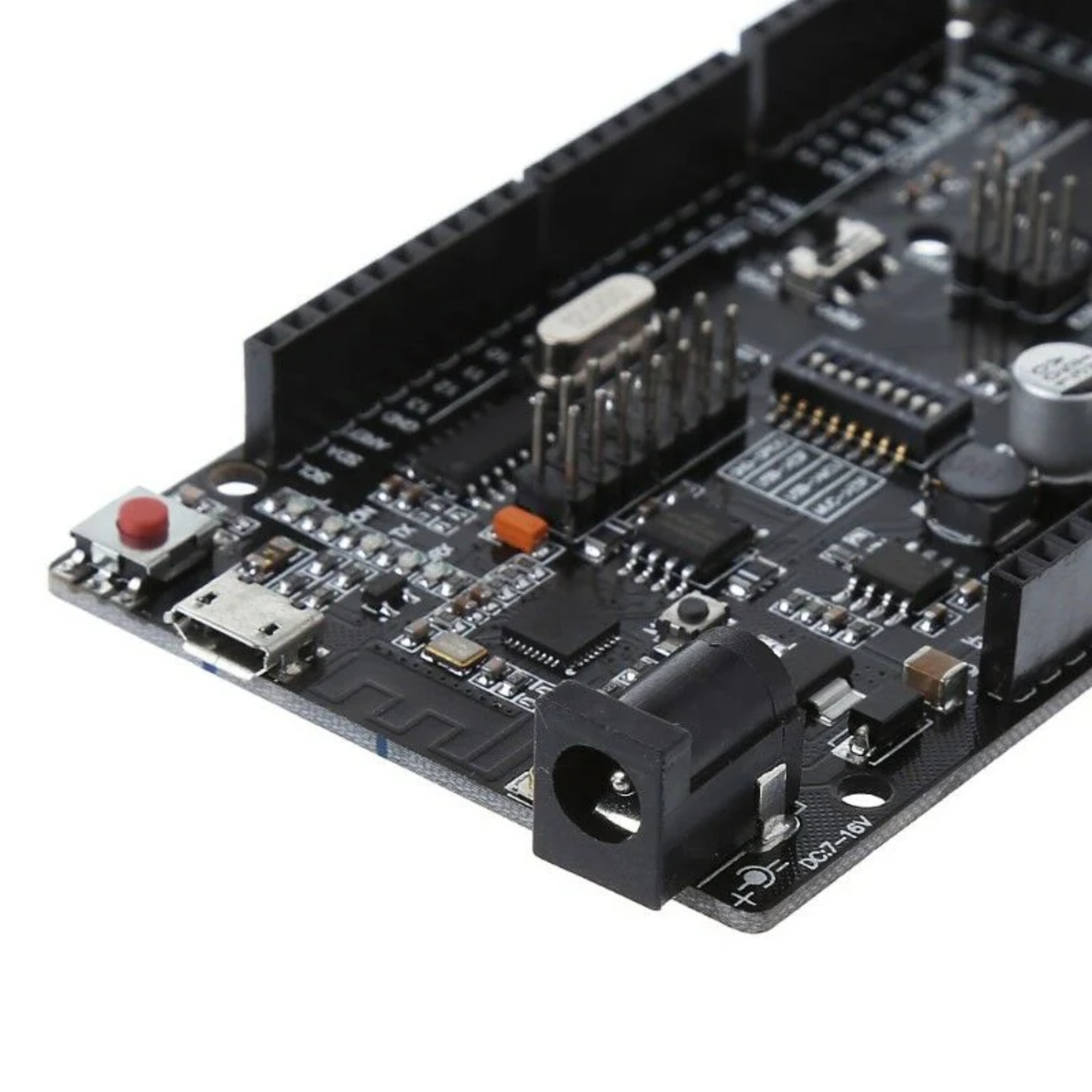

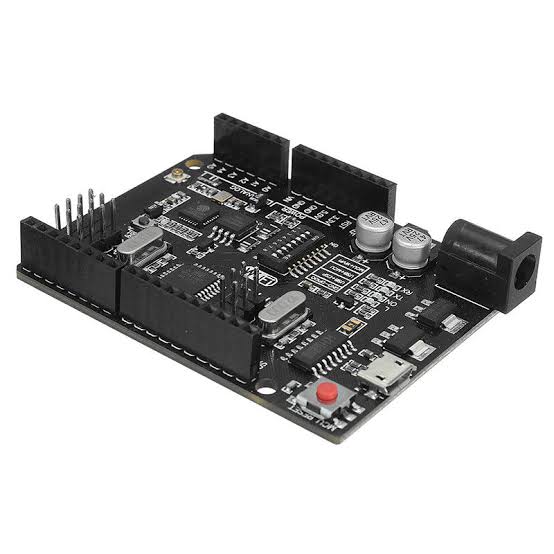

Uno+WiFi R3 AtMega328p+NodeMCU ESP8266 32mb Memory USB-TTL CH340G Compatible for Arduino UNO

Uno+WiFi R3 AtMega328p+NodeMCU ESP8266 32mb Memory USB-TTL CH340G Compatible for Arduino UNO is full integration on one board: Uno R3 ATmega 328 and WiFi ESP8266 with memory 32Mb (MegaByte). All of the modules can work together or each separately. And everyone has their own pinout headers.

The convenient solution for the development of new projects requiring Uno and WiFi. Via USB you can update sketches and firmware for ATmega328 and for ESP8266. For this on board have the USB-serial converter CH340G. It is a modernized version of the classic Arduino UNO R3 board. Full integration of a microcontroller ATmega328 and a Wi-Fi chip ESP8266 with 32 MB memory on one board. All modules can work together or individually. Each of the microcontrollers has led for connecting peripheral sensors and modules.

A convenient solution for developing new projects that require Wifi. Through USB, you can update sketches and firmware for both ATmega328 and ESP8266. For this on board, there is a UART converter CH340G. The board has a DIP switch, which switches the modes of interaction of microcontrollers ATmega 328 and esp8266.

Operations of this board are very simple. The board has DIP-switch, to connect the modules. For example, to USB and ATmega328, USB and ESP8266, ATmega328 and ESP8266.

Features:

• Microcontroller: ATmega328IC
• Wi-Fi: ESP8266
• USB-TTL converter: CH340G
• Power Output: 5V-800mA
• Power input USB: 5V (500mA max.)
• Power input VIN/DC Jack: 9-24V
• Power Consumption: 5V 800mA
• Logic Level: 5V
• WiFi: 802.11 b/g/n 2.4 GHz
• USB type: Micro USB
• USB Clock Frequency: 16 MHz
• Operating Supply Voltage: 5V
• Digital I/O Pins: 14
• Analog I/ O Pins: 6
• Memory Size: 32 Mb
• Interface Type: serial
• Operating temperature: −40С°/+125С°

Specifications:

• Microcontroller: ATmega328IC
• Wi-Fi Module: ESP8266
• Input supply voltage (V): 3.3 ~ 5
• Current consumption (mA): 800
• USB to serial converter: CH340G
• VIN/DC Jack (V): 9 ~ 24
• WiFi: 802.11 b/g/n 2.4 GHz
• USB type: Micro USB
• USB Clock Frequency (MHz): 16
• Memory Size (MB): 32
• Length (mm): 70
• Width (mm): 53.5
• Height (mm): 15
• Weight (gm): 25

Table DIP- switch:

Connection

DIP    ATmega328<->ESP8266

1       ON

2       ON

3       OF

4       OF

Package Includes :

• 1 X Uno+WiFi R3 AtMega328p+NodeMCU ESP8266 32mb Memory USB-TTL CH340G Compatible for Arduino UNO
