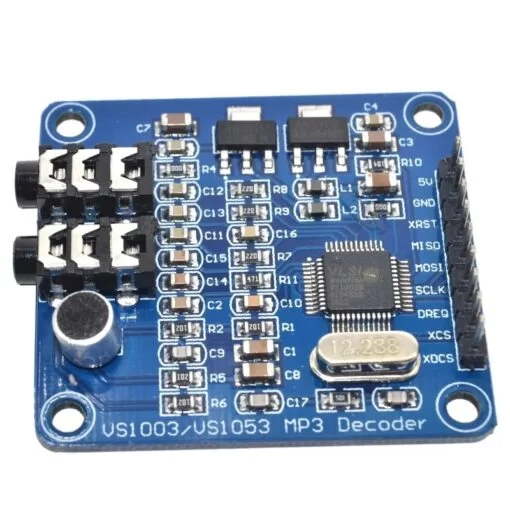

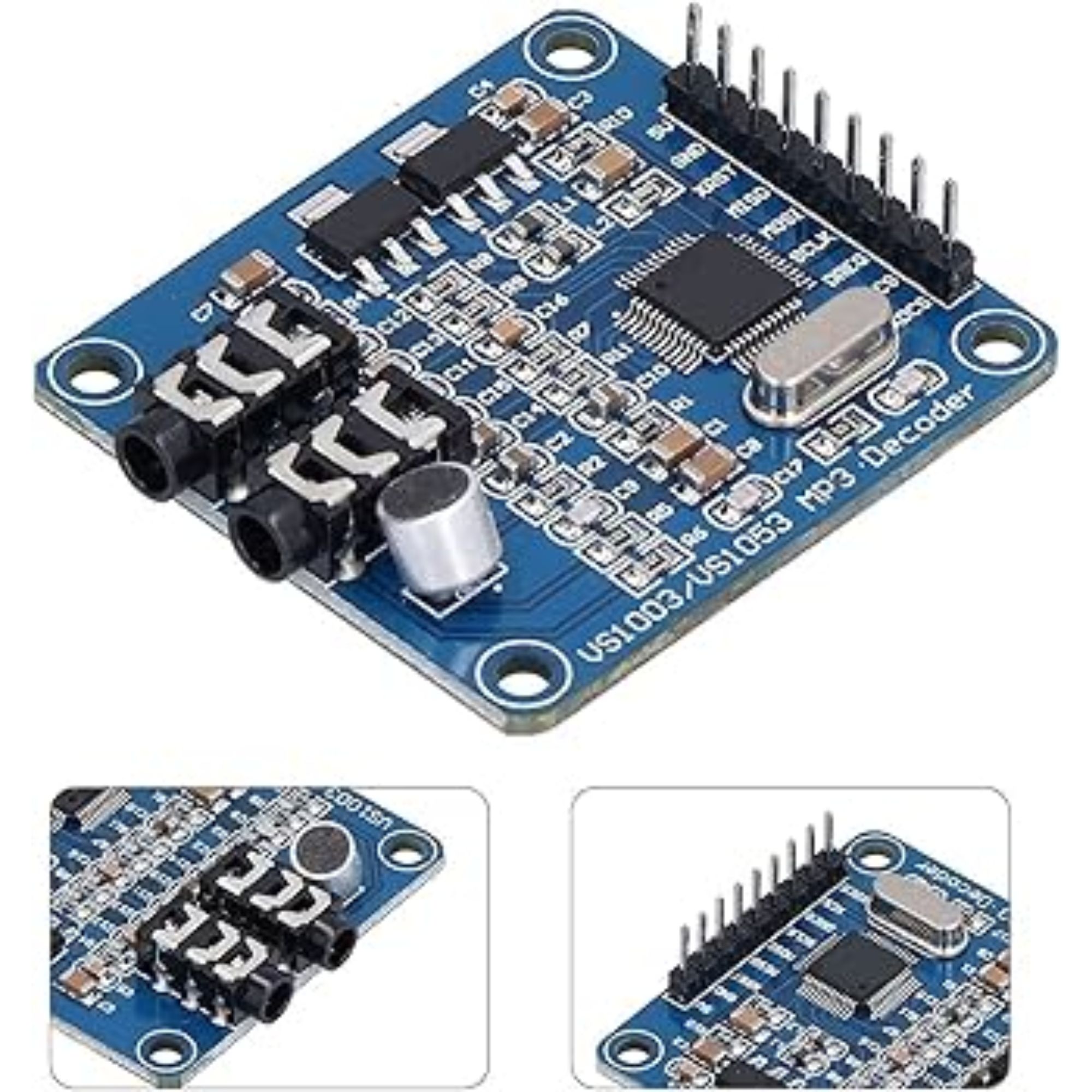

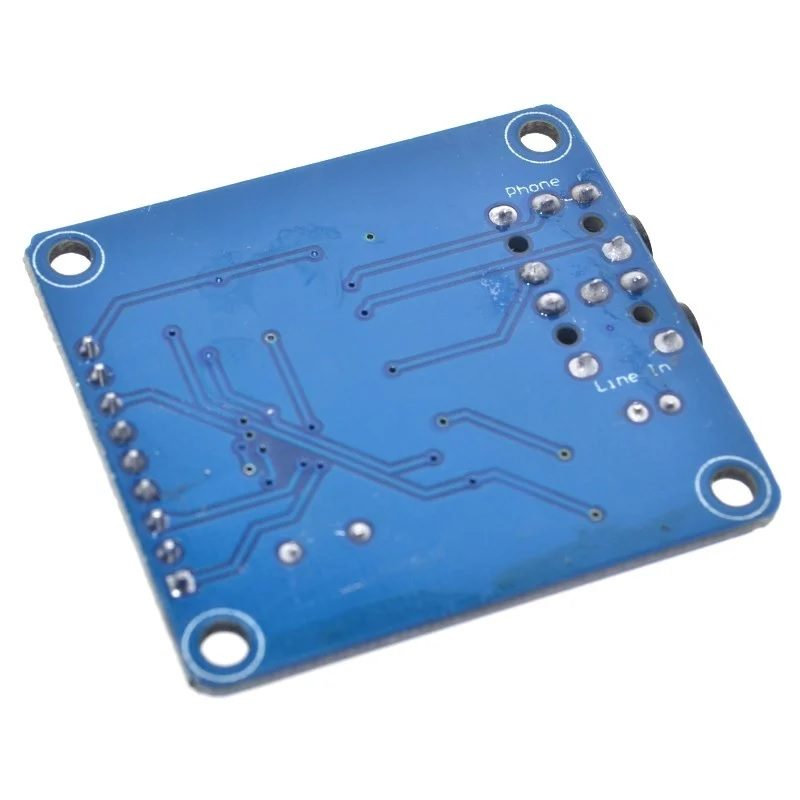

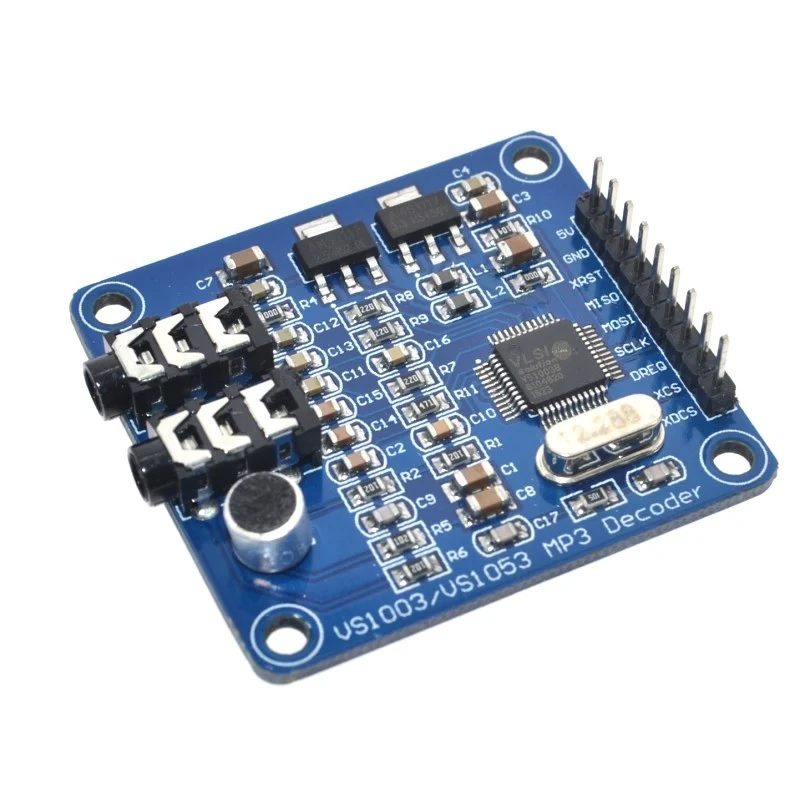

VS1003 VS1003B MP3 Module Decoding Containing Microphones STM32

This is VS1003 VS1003B MP3 Module Decoding Containing Microphones STM32 Module with complete MP3/WMA/MIDI audio decoder and ADPCM encoder which features a high-quality stereo DAC (Digital to Analog Converter), a 16-bit adjustable ADC (Analog to Digital Converter) and a high-quality stereo earphone driver (30 Ohm).

This module is ideal for adding audio decoding and encoding capabilities to embedded systems.

Features :

• Separate analog, digital, and IO power supply
• Serial data and control interface (SPI)
• 1 headphone and audio output interface
• 1microphone for recording, support audio encoding format
• 1 line input interface; supports MP3 and WAV stream
• Power indicator light
• Onboard 3.3 V and 2.5 V LDO chip AMS-1117,
• 12.288 MHz crystal

Specifications:

• Input Supply Voltage (VDC): 5
• Maximum Operating Current (A): 0.8
• Length (mm): 44
• Width (mm): 40
• Height (mm): 11
• Weight (g): 10

Package Includes :

• 1 x VS1003 VS1003B MP3 Module Decoding Containing Microphones STM32
