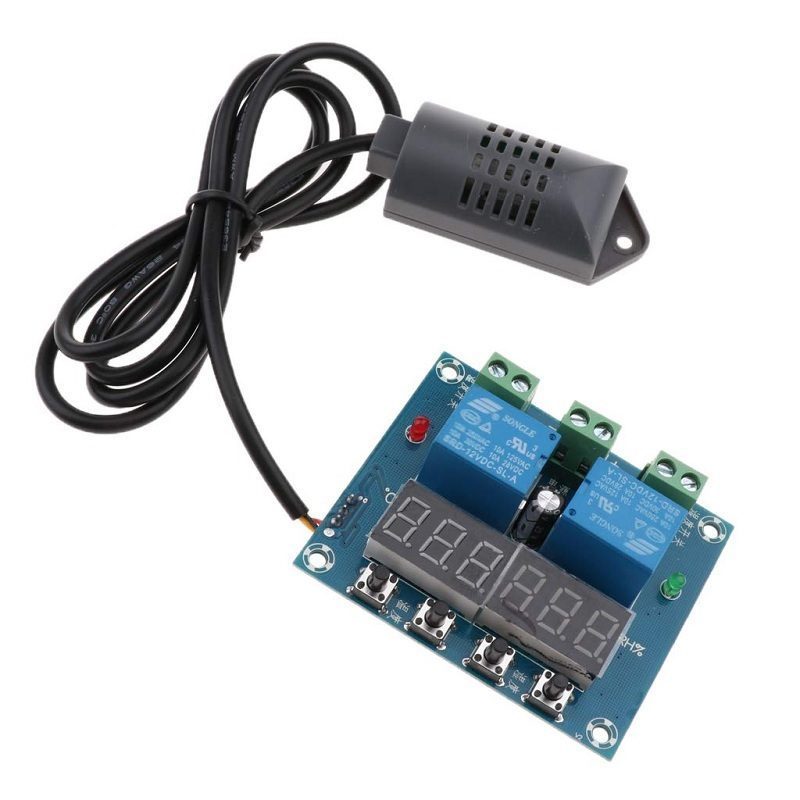

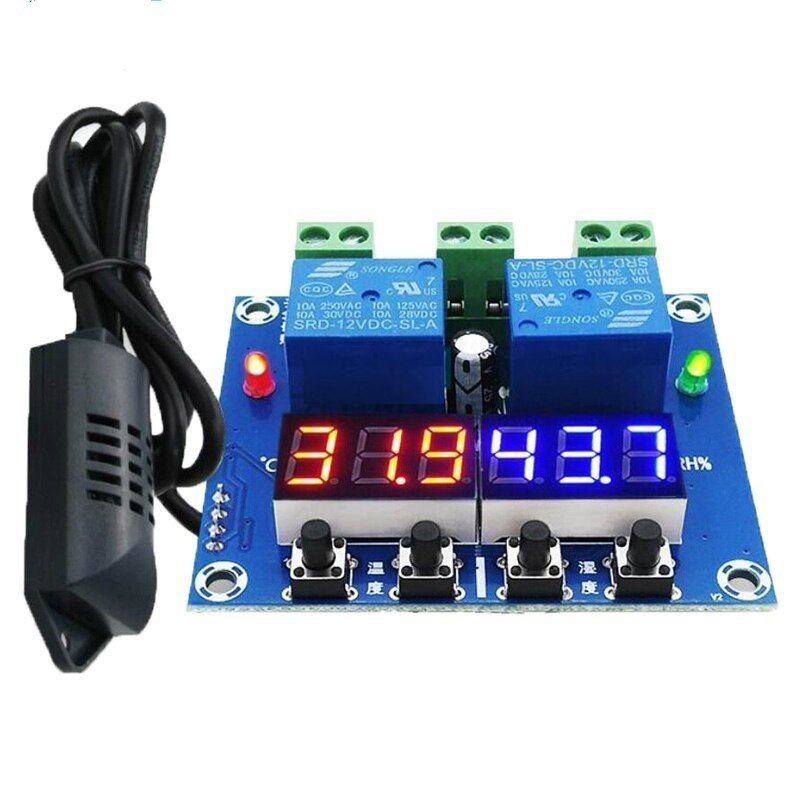

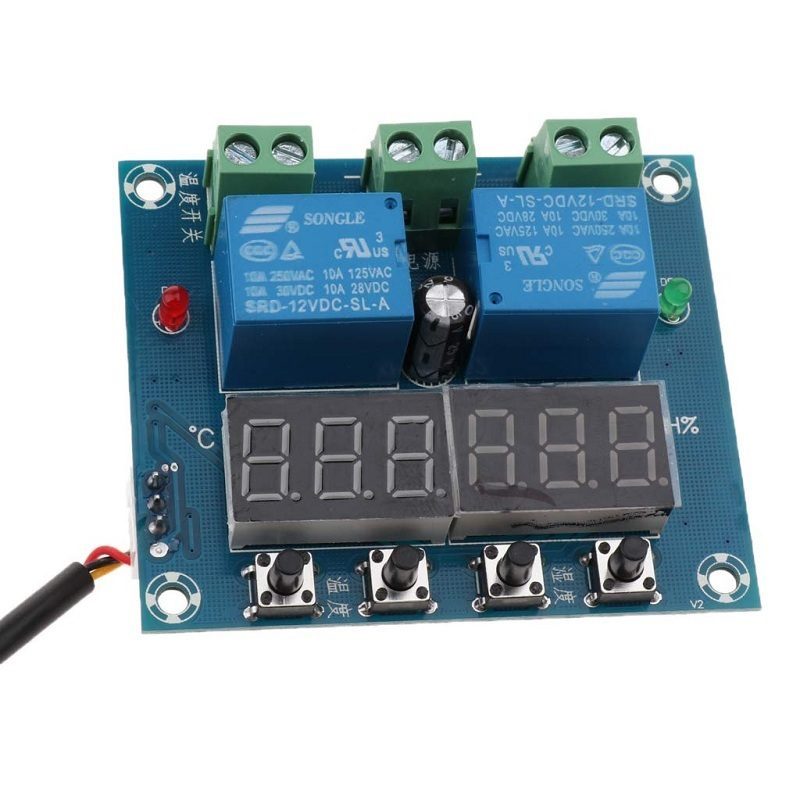

XH-M452 Temperature and Humidity Controller Module

If you want to work with temperature and humidity sensors and put this into your project works, then this sensor is essential for you. XH-M452 Temperature and Humidity Controller Module are used to detect temperature and humidity from the atmosphere.

Get the all-new DC 12V XH-M452 Temperature And Humidity Controller Module Digital Display. It has a very High Accuracy Dual Output Automatic Constant Temperature And Humidity Control Board.

Features:

• Power supply: DC 12V
• Temperature measurement range:-40~120℃
• Humidity range：0~100%RH
• Control precision：0.1℃  0.1%RH
• Test probe： Integrated sensor

Specifications:

• Model: XH-M452
• Voltage: DC 12V
• Temperature Range: 0% to 100%RH
• Control Accuracy: 0.1°C, 0.1RH
• Detector probe: Integrated sensor
• Output type: Relay output
• Output capacity: up to 10A
• Length(mm): 65
• Width(mm): 55
• Height(mm): 28
• Weight(g): 69g

Operating Functions:

Humidity Control

• Set to start humidity: long-press the + key, start the humidity value flashing, set by + / – key launch humidity value
• Set stop humidity: long press – to stop humidity value, set by + / – key to stop the humidity value

Temperature Control

• Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / – key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display
• Setting the temperature – :Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the + / – key set value
• Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888
• Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / – key
• Setting Stop temperature: long press – button, stop flashing temperature, set stop temperature by + / – key

Package Includes:

• 1 x XH-M452 Temperature and Humidity Controller Module With sensor
