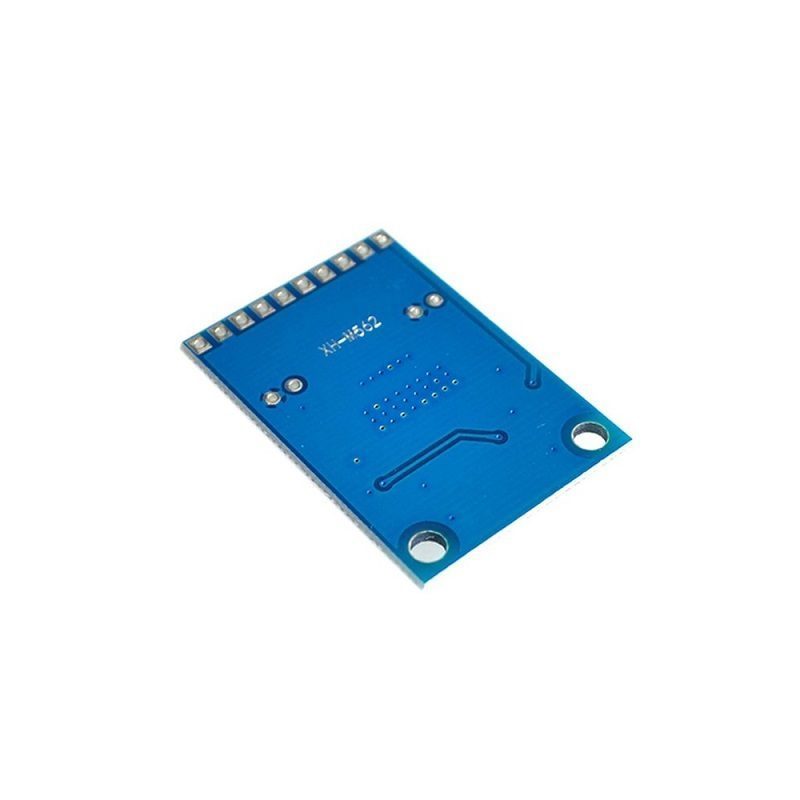

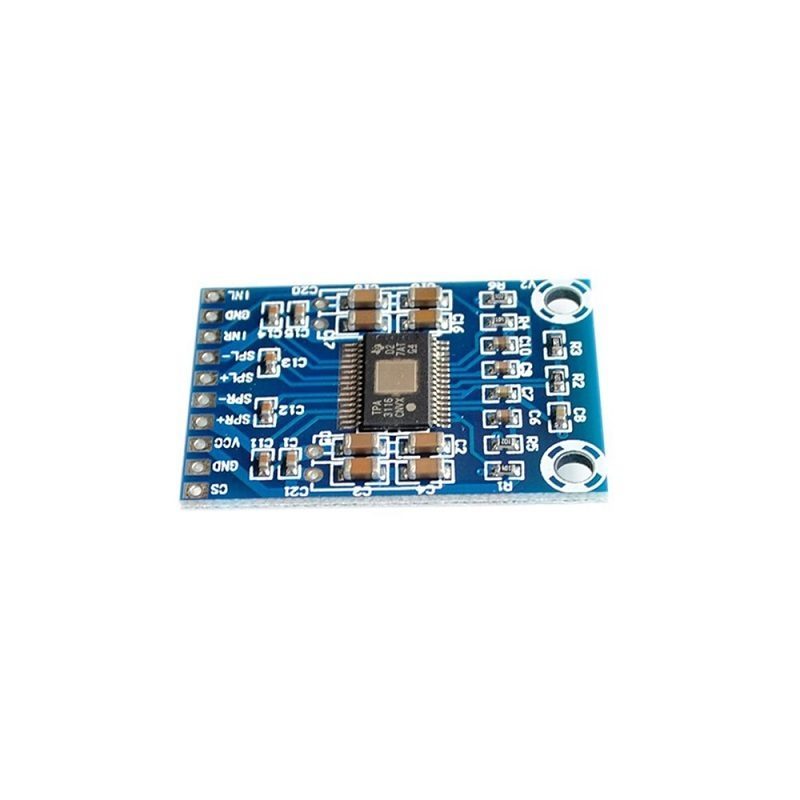

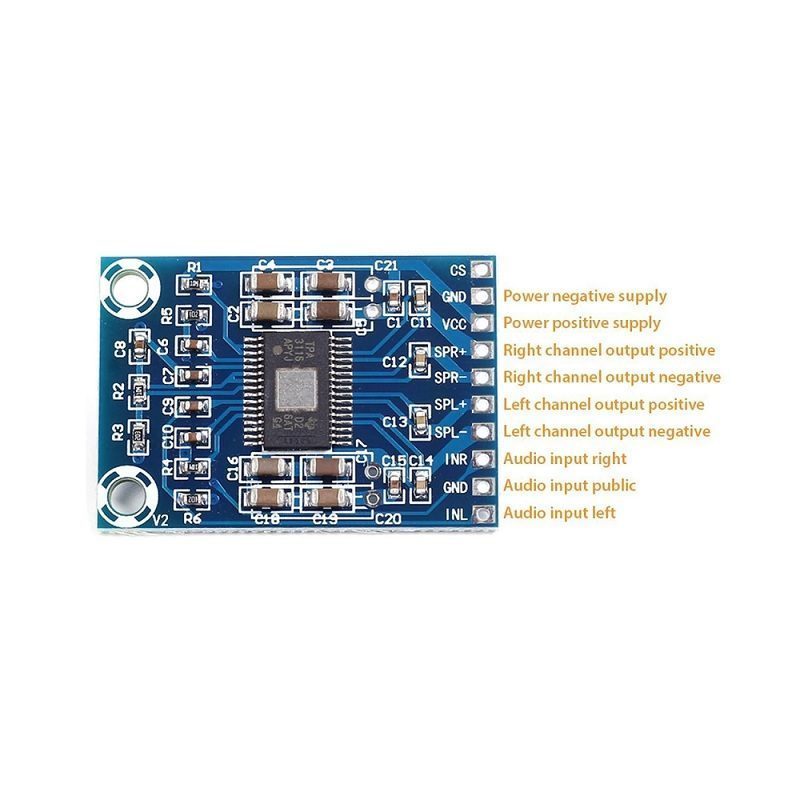

XH-M562 TPA3116D2 50W+50W Dual Channel Mini Digital Amplifier Class D Amplifier

The XH-M562 TPA3116D2 50W+50W Dual Channel Mini Digital Amplifier Class D Amplifier. Allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the TPA 3116D2 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.

Features :

• Dual-channel stereo, high output power (50w + 50w power @ 12V ).
• Good sound quality.
• Double panel wiring solves crosstalk.
• Supermini design allows it to be easily placed in a variety of digital products.
• Filterless, Low Quiescent Current and Low EMI.
• Superior Low Noise.
• Short Circuit Protection.
• Thermal Shutdown

Specifications:

• Operating Voltage (VDC): 12 ~ 24
• Max Gain: 36 dB
• Current Handling Capacity (A): 3
• Efficiency: >90%
• Amplifier IC: TPA3116D2
• Load: Can direct drive 4 or 8 ohm small speakers.
• Length (mm): 25.6
• Width (mm): 37.2
• Height (mm): 3
• Weight (gm): 5

Application :

• Bluetooth Stereo Audio hands-free/headsets
• In robots that speak or generate sounds to indicate activities
• Portable Speakers
• LCD Monitors / TV Projectors
• Arduino or Raspberry Pi Game Machines
• Speaker Phones

Package Includes :

• 1 x XH-M562 TPA3116D2 50W+50W Dual Channel Mini Digital Amplifier Class D Amplifier
