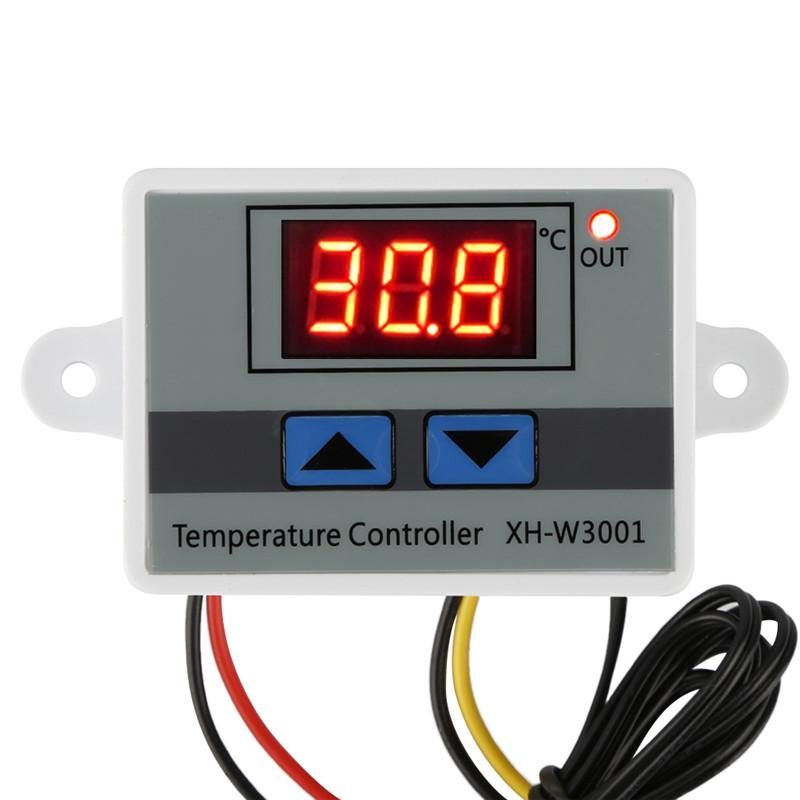

XH-W3001 AC 220V 1500W Digital Microcomputer Thermostat Switch

This is XH-W3001 AC 220V 1500W Digital Temperature Controller Microcomputer Thermostat Switch. A temperature measurement and Controller tool with high accuracy and precision at a very low cost.

It offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃. The LED display shows the results clearly. One can directly install or embed the XH-W3001 in industrial control equipment panel, convenient and quick.

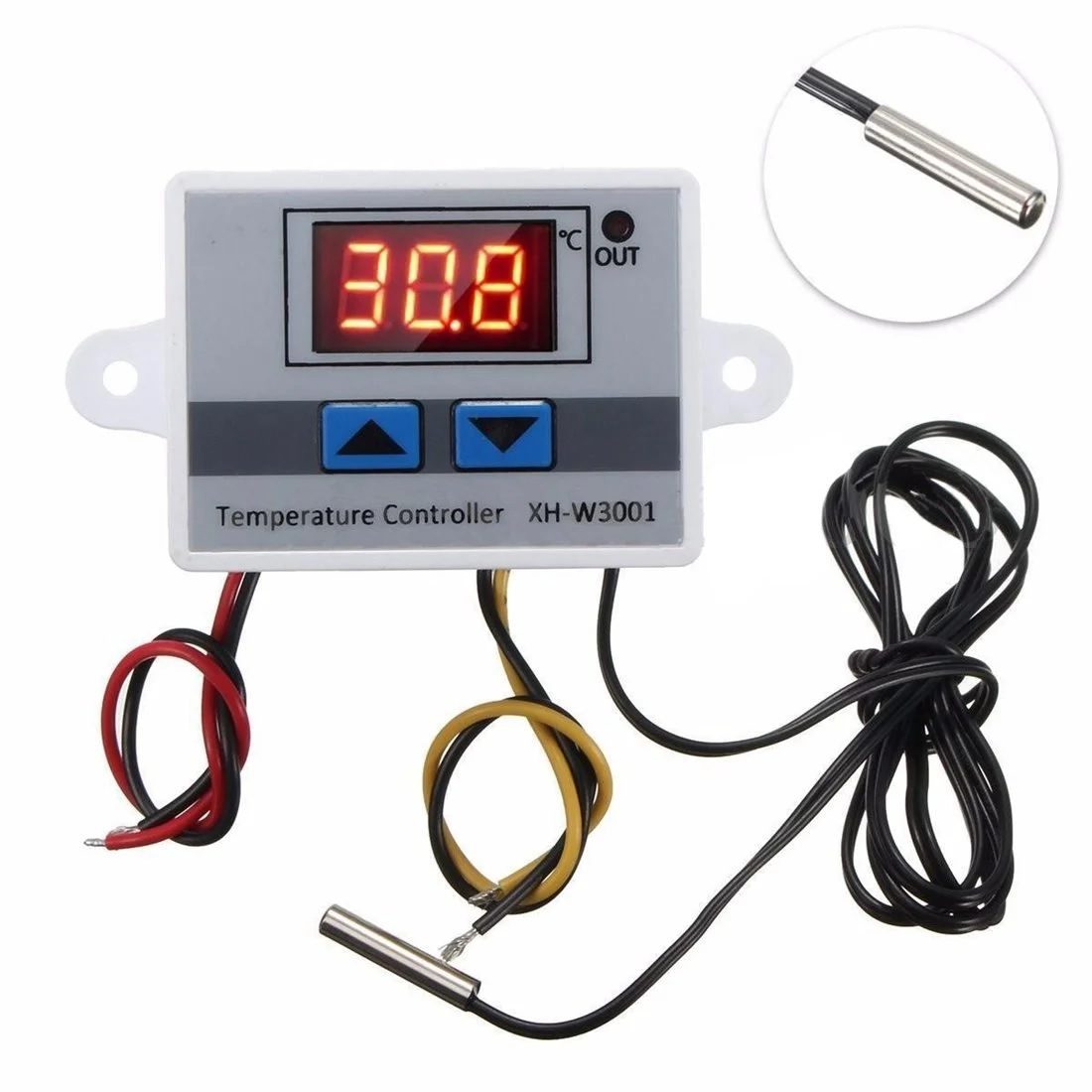

It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmental protective.

Features:

• Easy to install

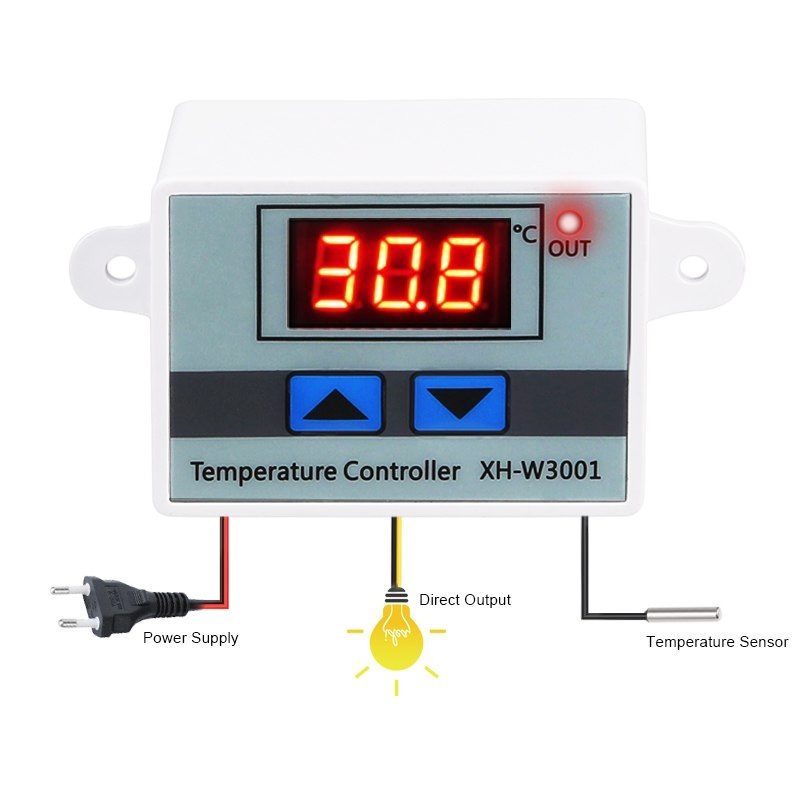

• Output type: AC Output (AC 220V 1500W).
• Output capacity: MAX 10A temperature measurement, display; refrigeration, heating control
• Temperature setting upper and lower limits
• Simple operation, suitable for seafood machines.
• Upper key: The start temperature is displayed in one press, and long press to set start temperature.
• Lower key: The stop temperature is displayed in one press, and long press to set stop temperature.

Specifications:

• Model No.: XH-W3001
• Operating Voltage(V): 110~220
• Rated Power (W): 1500
• Rated Current (mA): 10 Amp Max.
• Measurement Input: NTC10K
• Temperature Measuring Range (°C): -50 ~ 110
• Temperature Control Range (°C): -50 ~ 110
• Control Accuracy: Upto 0.1℃
• Measuring Accuracy: ± 0.2 ℃
• Temp Probe Cable Length: 1 Meter
• Dimensions (mm) LxWxH: 60 x 45 x 31
• Weight (gm): 55
• Shell Material: Plastic

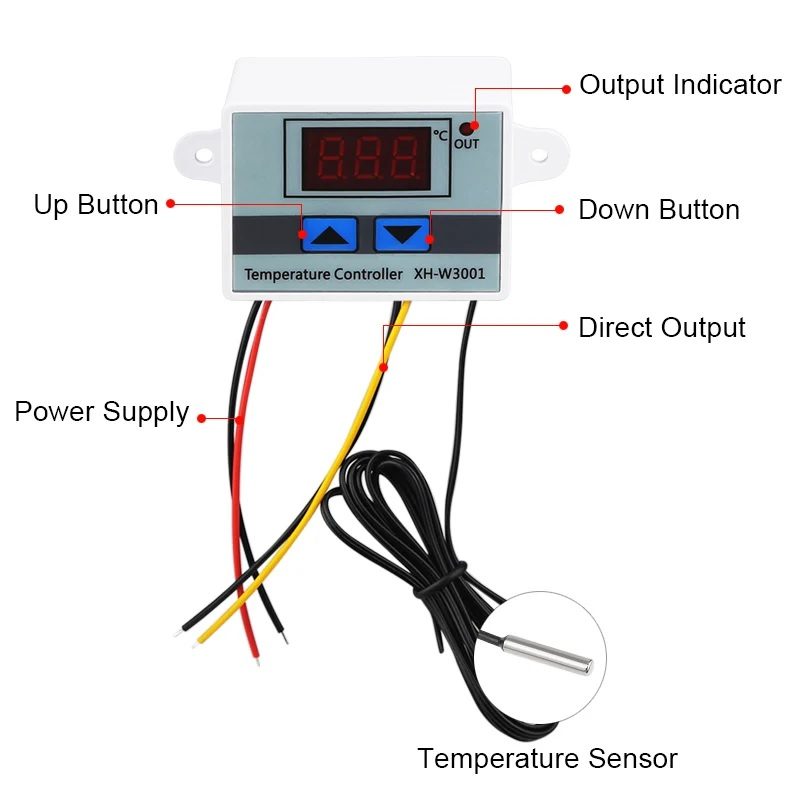

Button functions:

• Press UP to show the start temperature button.
• On Long press of the UP button, the display starts flashing, then press the UP or DOWN button Set the beginning of the temperature value
• Press Down the display button to stop temperature.
• On the Long press of the Down button, the display starts flashing, then press the Up or Down button Set to stop the temperature value.

Package Includes:

• 1 x XH-W3001 AC 220V 1500W Digital Microcomputer Thermostat Switch.
