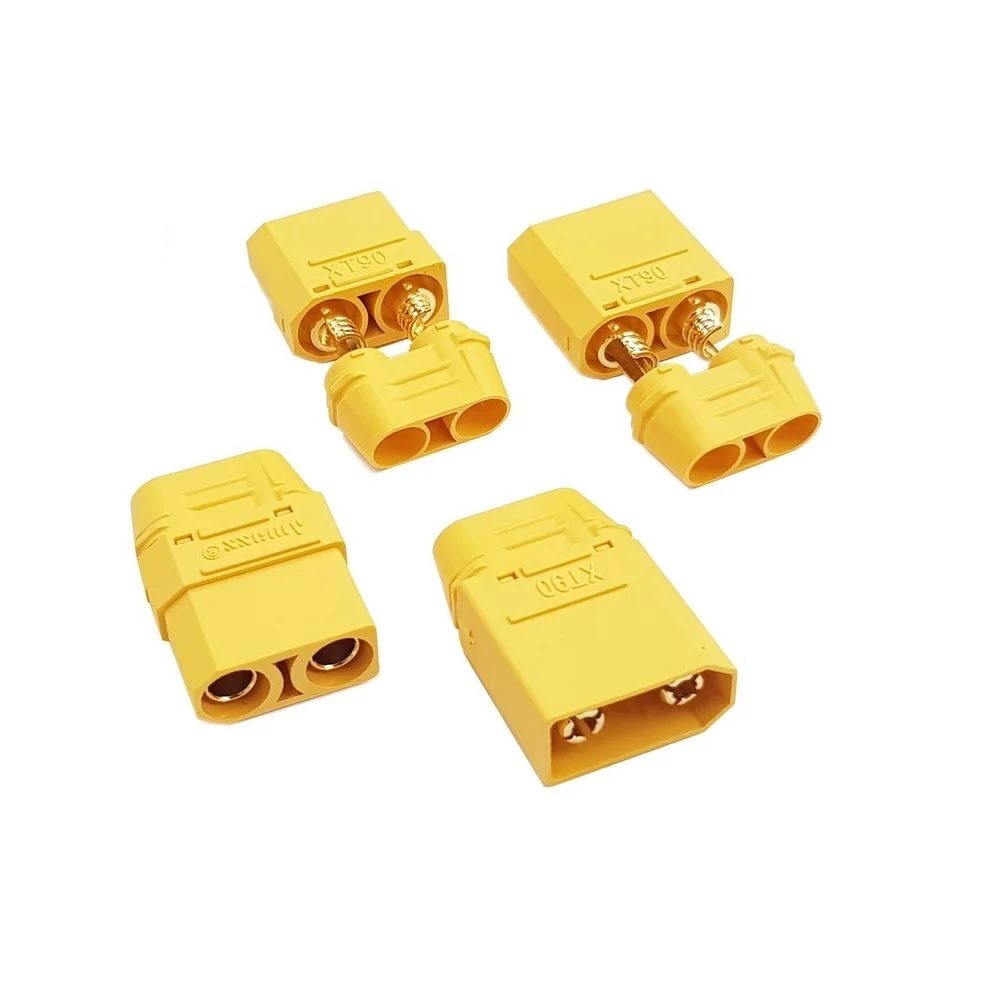

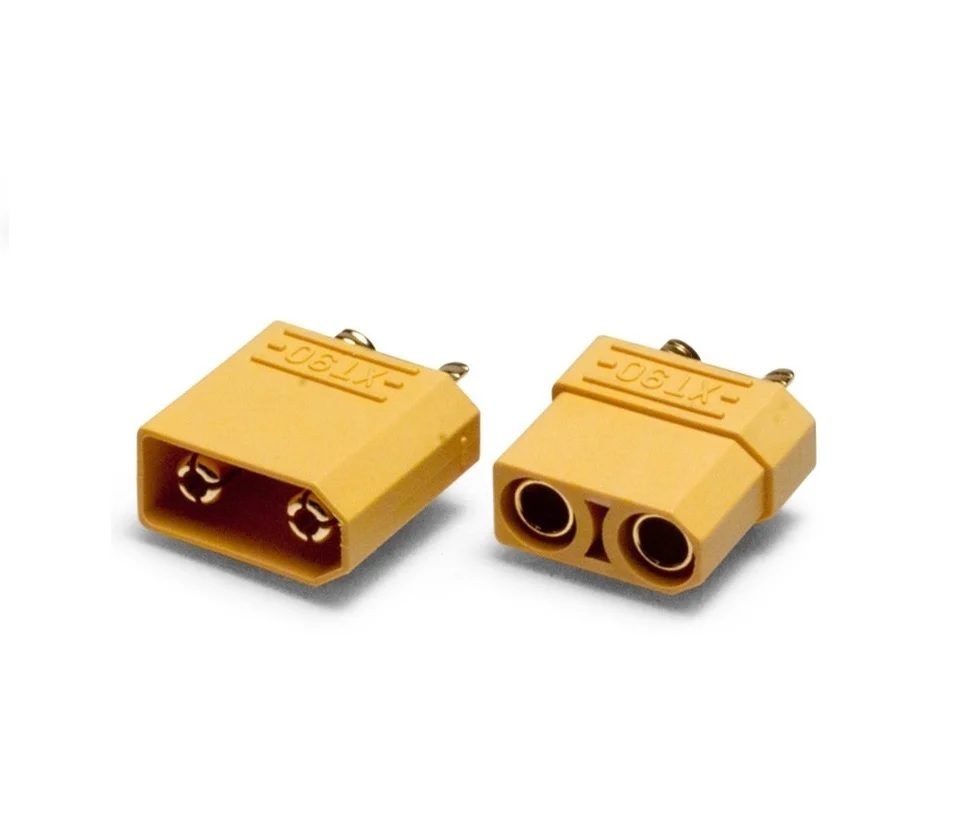

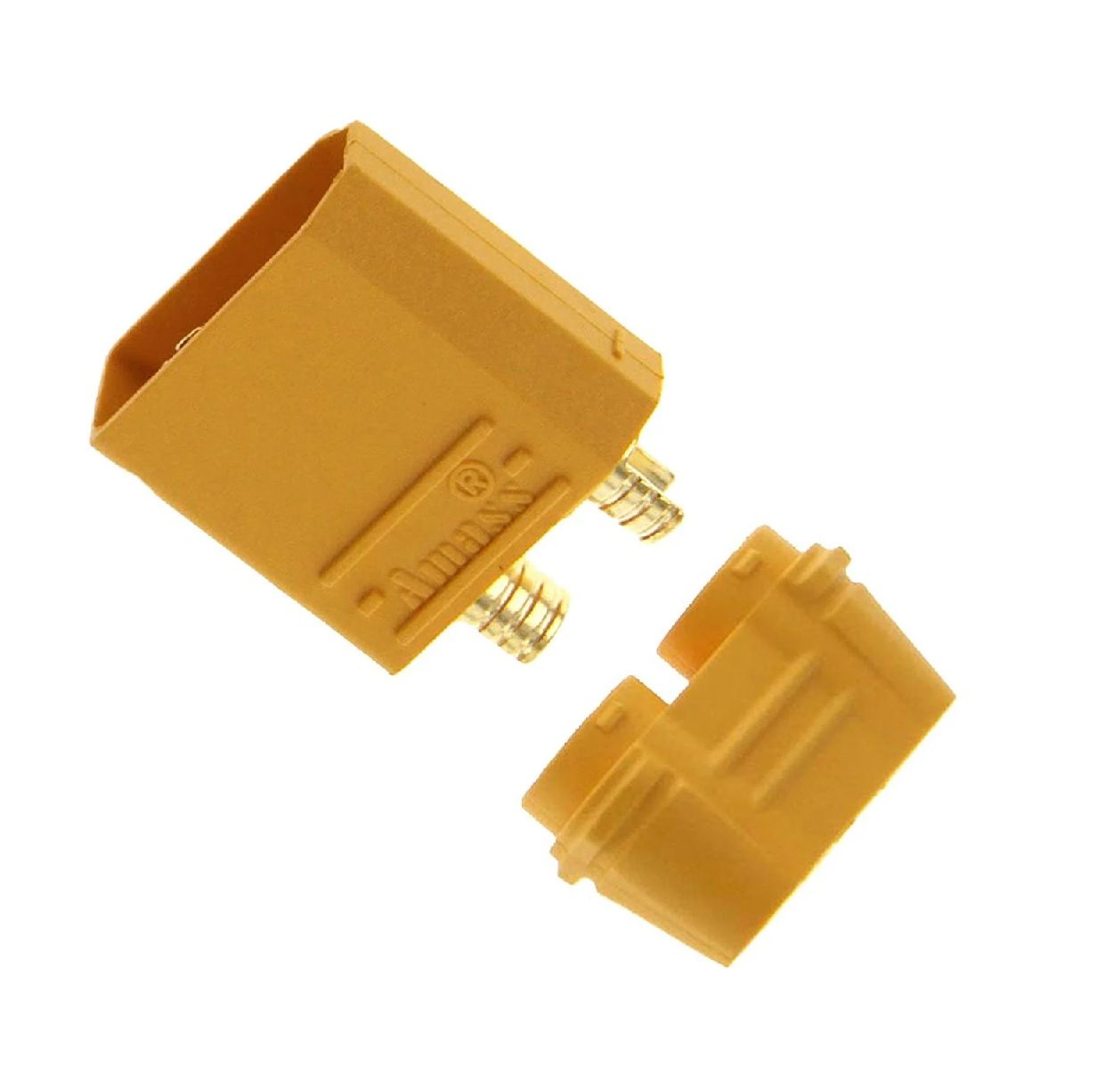

XT90 Male/Female Connector with Housing – 1 Pair

XT90 Male/Female Connector with Housing – 1 Pair is made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT90 ensures a solid high-amp connection, perfect for applications up to and beyond 90A constant.

These connectors offer a tight fit, ensuring a solid connection for minimal resistance. This means that more power gets from your pack to your power system when compared to other plugs currently on the market. Don’t starve your high-amp power system, switch to XT90 connectors today!

Features:

• Housing shape provides protection against shorting and reverse polarity
• Can accept up to 8AWG wires
• Semicircular solder terminals make it easy to install wires
• Able to sustain 90A+ continuous current.

Specifications:

• Rated Operating Voltage (VDC): 500
• Contact Material: Brass
• Current Handling Capacity (A): 90
• Operating Temperature Range (°C): -20 to 120
• Plug Type: 5mm gold bullet connector in nylon shroud
• Gender: Mail-Female Pair
• No. of Contact Points: 2
• Connector Type: XT90
• Metal Connector Size (mm): 4.5
• Color: Yellow
• Weight (gm): 16

Package Includes:

• 1 x XT90 Male-Female Connector pair with Housing-1Pair
