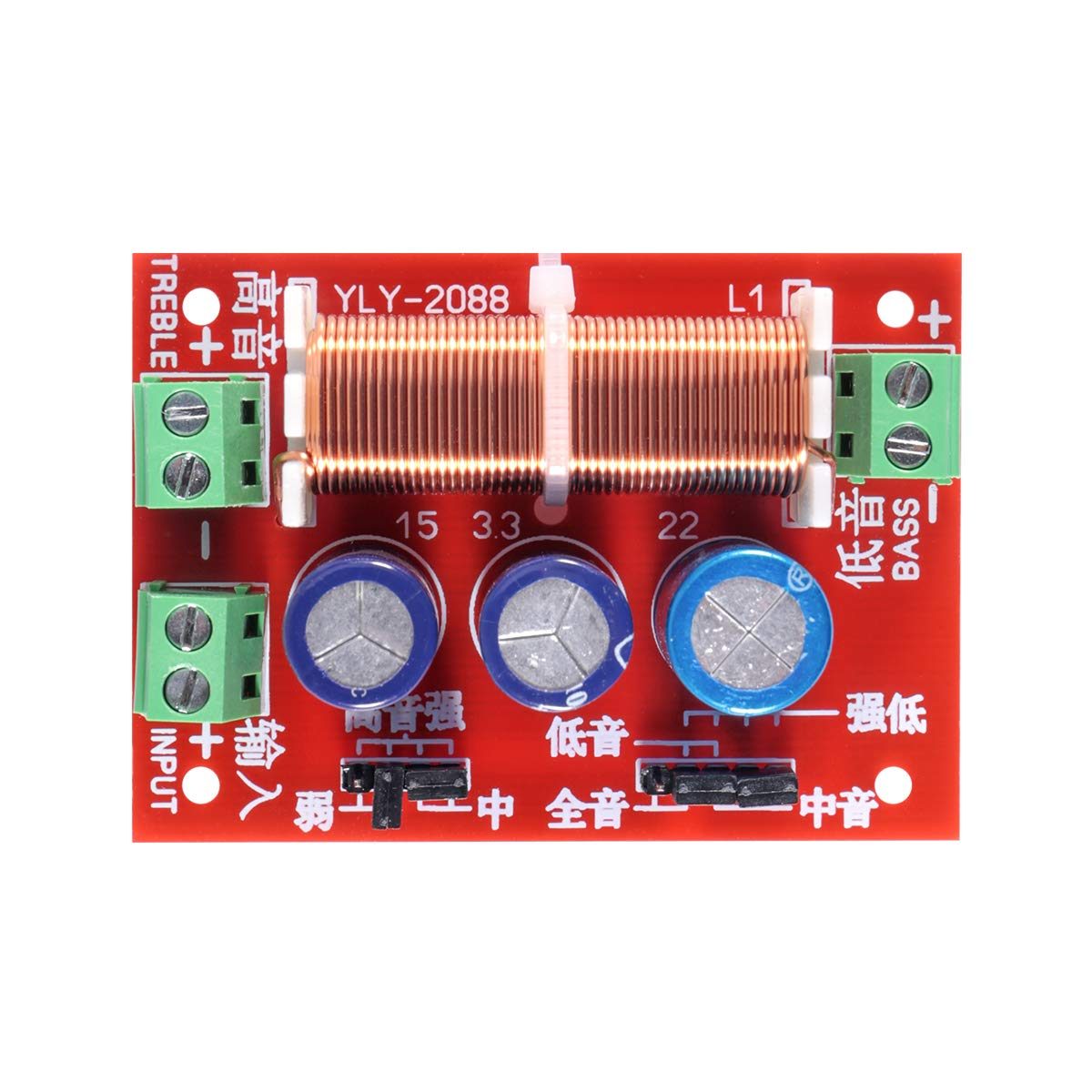

YLY-2008 400W Treble-Bass Dual 2-way Speaker Audio
YLY-2008 400W Treble-Bass Dual 2-way Speaker Audio is a 400W filter module for the speakers.

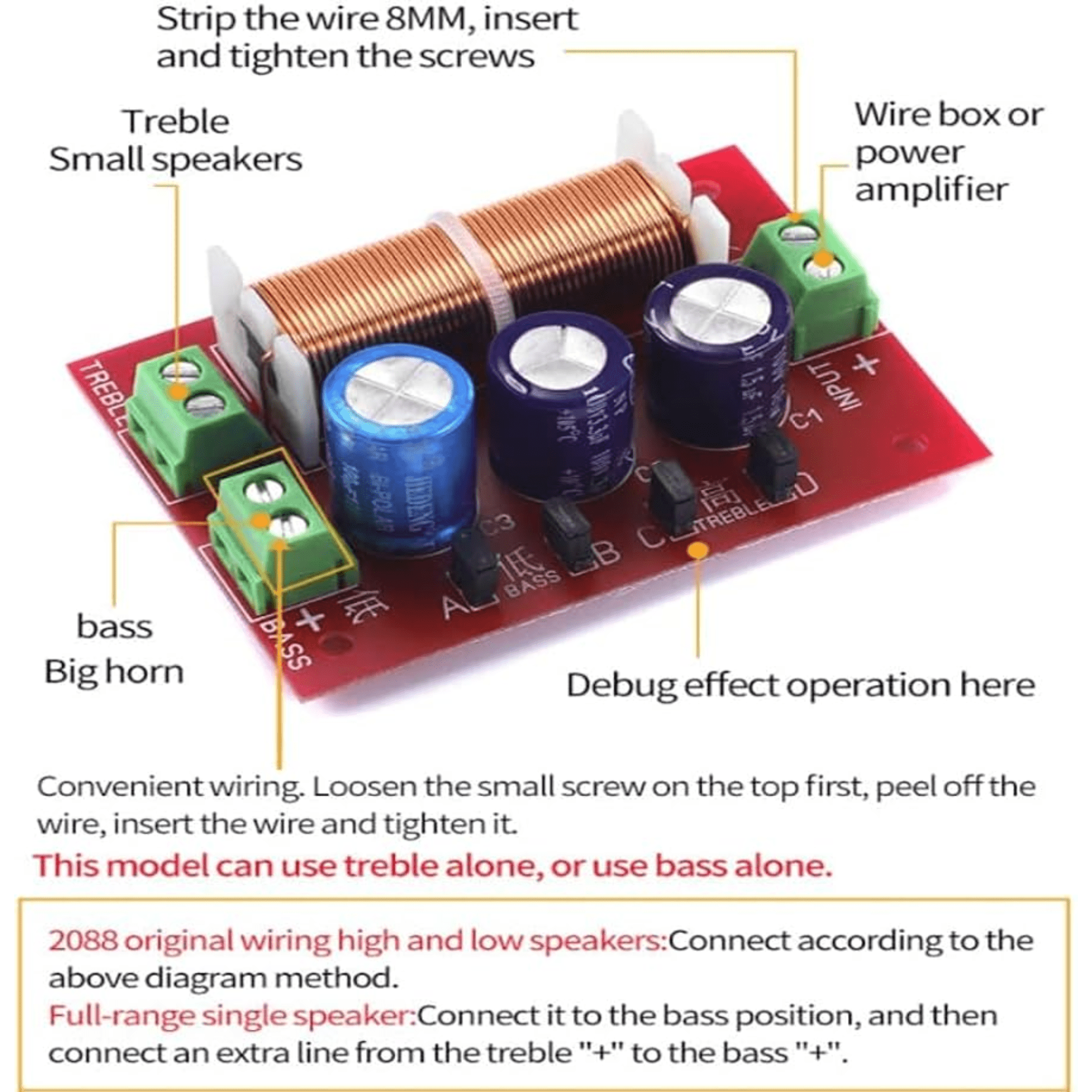

Jumper A, B are used to control the audio effect of the bass range. A for lower limit while B for the upper limit of the bass audio range. For some speakers, when the Bass is turned up too much, the speaker will show distortion. When that happens: we remove the jumper cap of jumper A to limit super low Bass to bring distortion lower. When we remove the cap of jumper B, Bass is increased while the cap of Jumper B is on, Bass is decreased.
Jumper C and D are used to control the Treble range. When the cap of both jumper C and D are on, the sound of the treble is loudest. When only cap C is on, the treble sound is lower. When only cap D is on, further lower. When both caps of C and D are removed, there is no treble sound.
Features:
- High-Quality Construction
- Compact Size
- Low Impedance
- Up to 400W of Power Output
Specifications:
- Model: YLY-2088
- Mounting Hole Diameter: 3mm
- Output Power: 400W (max.)
- Impedance: 4-16 Ohm

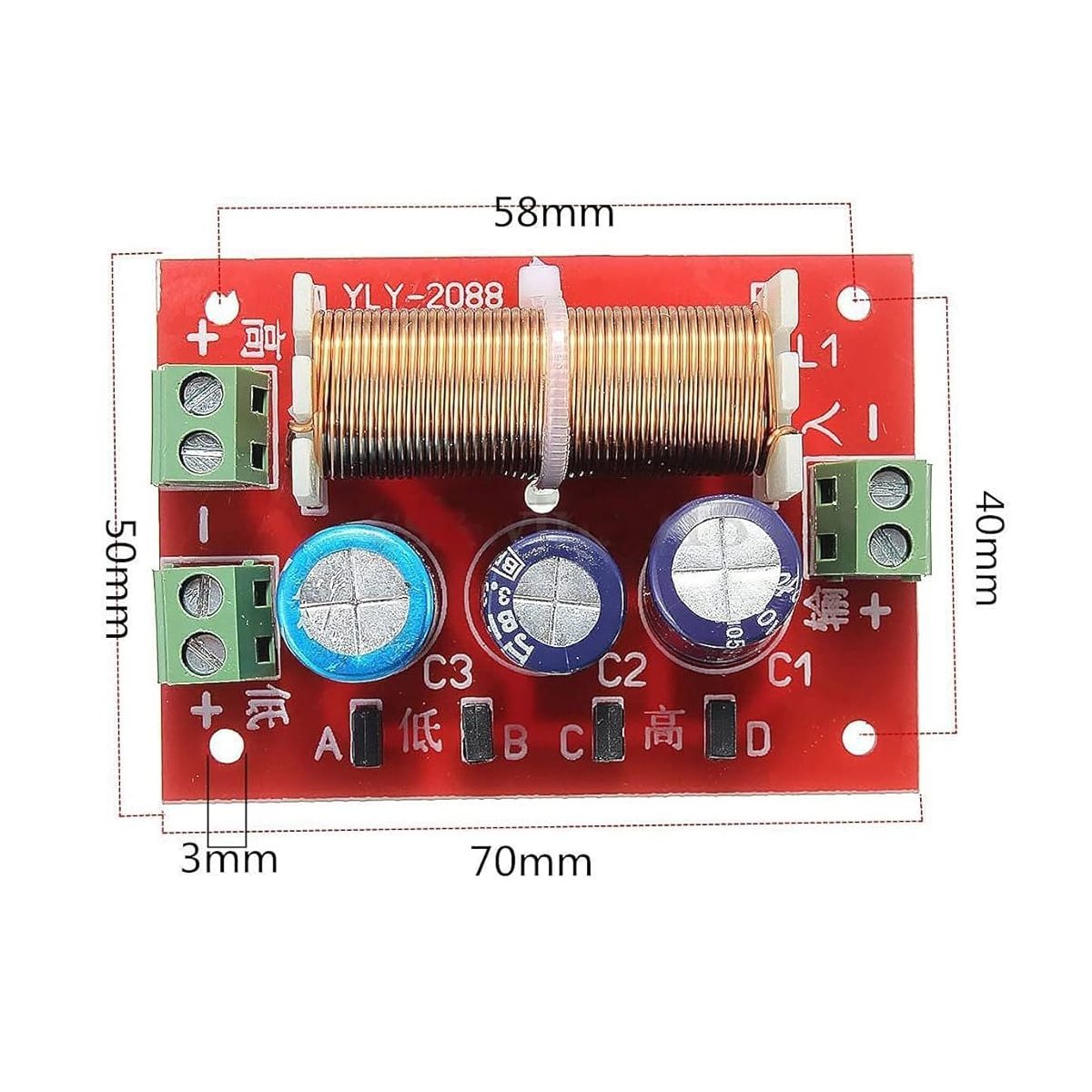

- Length (mm): 50
- Width (mm): 70
- Height (mm): 20
- Weight (g): 75
Package Includes:
- 1 x YLY-2008 400W Treble-Bass Dual 2-way speaker audio
