0.96 inch OLED Display Module Blue SPI/I2C 128×64 – 7 Pin

The 0.96 inch OLED Display Module Blue SPI/I2C 128x64 - 7 Pin are one of the most attractive displays available for a microcontroller. There are many types of OLED displays available in the market and the most popular one is the 7-pin SSD1306 0.96” OLED display which we are discussing here. It has a good view angle and pixel density which makes it reliable for displaying small level graphics. Interfacing this IC with MCU can either be done using IIC or using SPI hence helps to save some pins as well.

So if you are looking for a slim, attractive and efficient display module to make your project look cool with graphics then 0.96 inch OLED Display module might be the right choice for you.

This 0.96″ OLED Display Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors. The 0.96″ OLED Display Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160°.

Features :

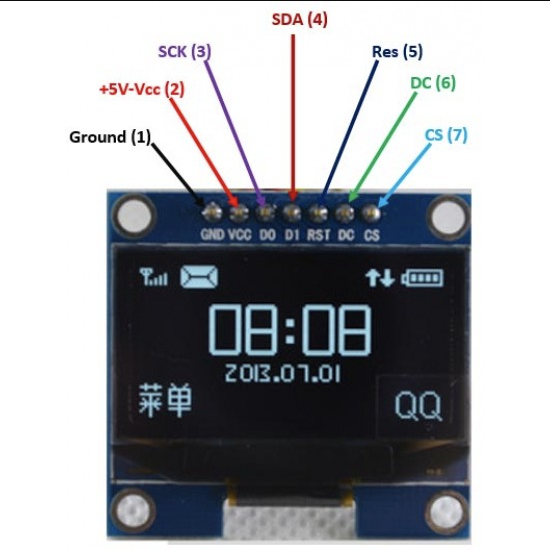

• Monochrome 7-pin SSD1306 0.96” OLED display.
• 128×64 pixel resolution with 160° viewing angle.
• Supply voltage 3V – 5V (supports both 5V and 3.31v logic devices).
• Uses SSD1306 for interfacing hence can communicate through SPI or IIC.
• Multiple SPI or IIC devices are supported
• Only Need 2 I/O Port Control
• Full Compatible with Arduino

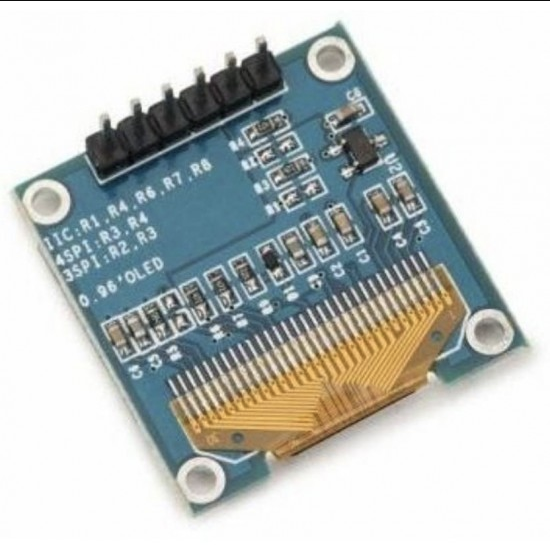

• Factory configured for SPI protocol (can easily change to IIC)
• Can be easily interfaced with Arduino (Library available).
• Supports decent graphics of bitmap images.

Specifications:

Applications:

• Used in consumer electronics.
• Used for Smartwatch, mobile phone, and MP3 displays.
• Small level gaming displays.
• Wide range of viewing angle enable to be used in low light.

Package Includes:

• 1 x 0.96 inch OLED Display Module Blue SPI/I2C 128x64 - 7 Pin
