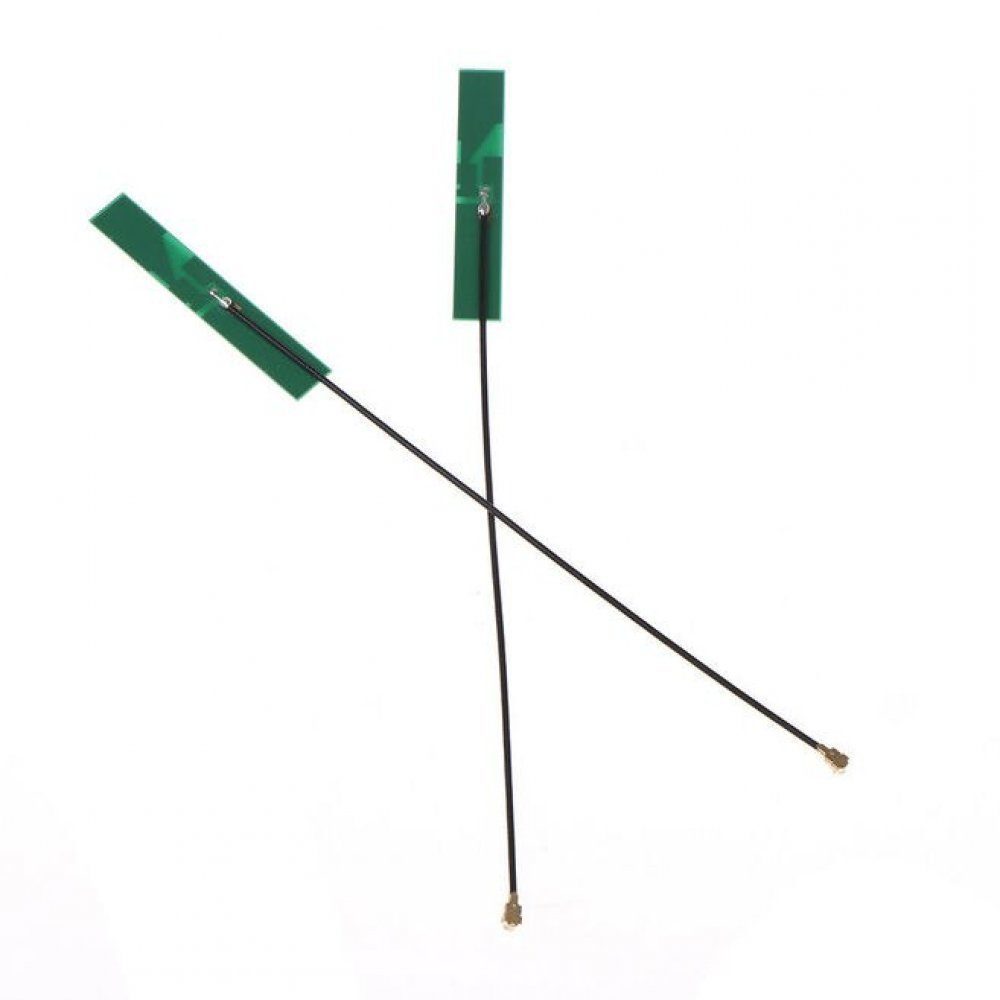

2.4G 4dbi PCB Board Wifi Antenna

This is a 2.4G 4dbi PCB Board Wifi Antenna with ipex13 for DIY projects. A 2.4G 4dBi PCB Board WiFi Antenna is a compact and efficient antenna designed for wireless communication applications operating in the 2.4 GHz frequency band. Here’s an overview of its key features and applications:

KEY Features:

• Frequency Band: Operates in the 2.4 GHz ISM band, suitable for WiFi, Bluetooth, and ZigBee applications.
• Gain: 4 dBi gain enhances signal strength and extends range while maintaining compact dimensions.
• PCB Design: Constructed on a printed circuit board (PCB), making it lightweight, cost-effective, and easy to integrate into electronic devices.
• Omnidirectional Pattern: Provides consistent signal coverage in all directions, ideal for general-purpose connectivity.
• Compact Size: Ideal for devices with limited space like IoT devices, drones, routers, and smart home systems.

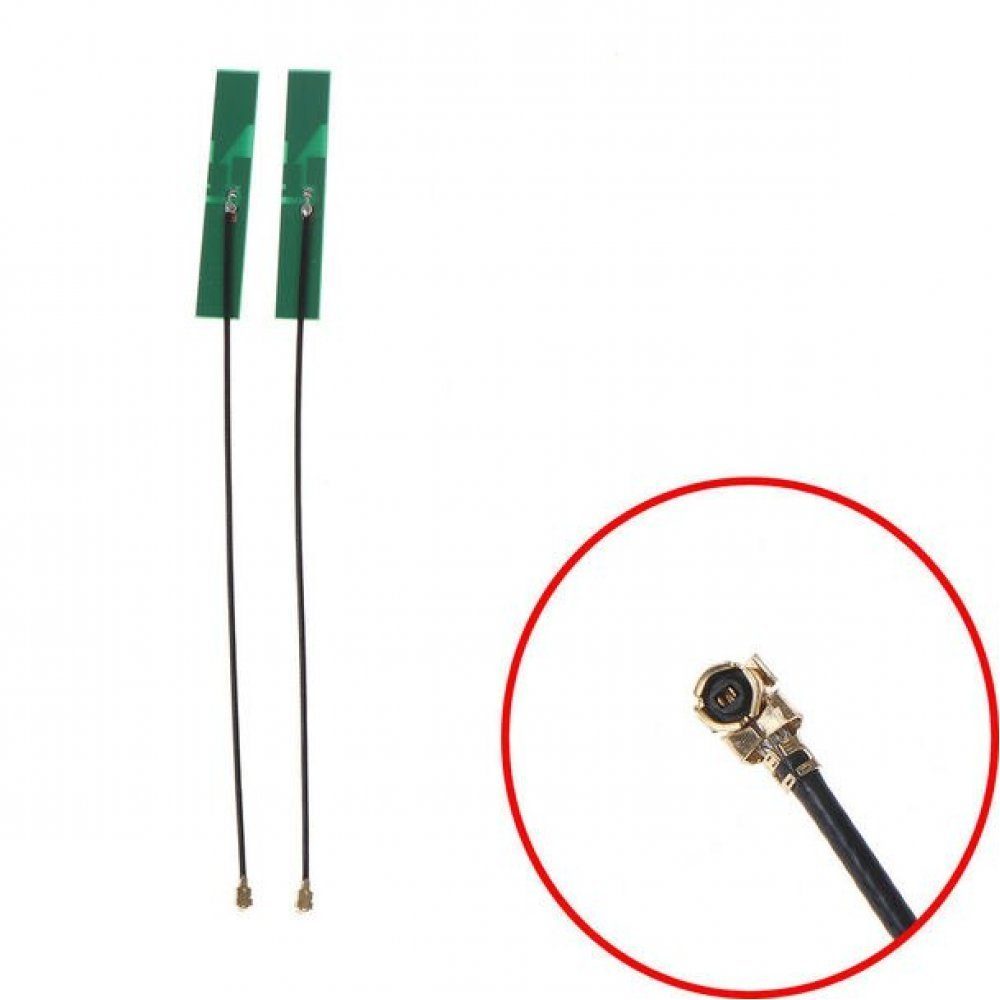

• Connector Options: Typically comes with an IPEX/U.FL connector for easy integration with RF modules or devices.

Features:

• Frequency 2400 ~ 2500 MHz
• S.W.R. <= 2.0
• Antenna Gain 3.0 ± 0.7dBi
• Polarization Linear
• Impedance 50 Ohm

Specifications:

• The material of Radiator PCB
• Cable Type O.D. 1.13 mm // 100 mm

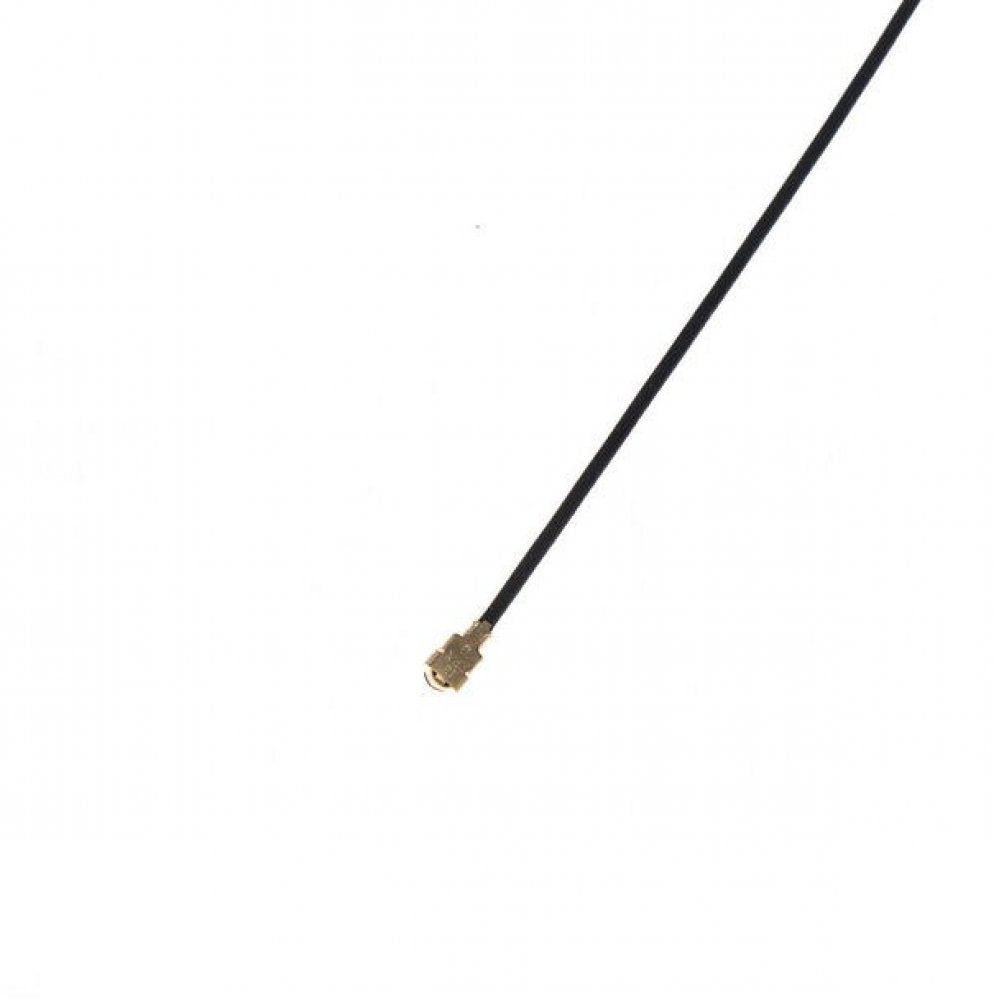

• Connector Type Mini Connector
• Pull Test >= 1.0 Kg

Environmental:

• Operation Temperature – 40 °C ~ + 65 °C
• Storage Temperature – 40 °C ~ + 80 °C

Application:

• IEEE 802.11 b/g/n WLAN System
• Wireless Communication System
• Wi-Fi / WiMAX / MIMO System
• Laptop/Bluetooth/Zigbee Antenna

Package Includes:

• 1 x WIFI 2.4G 4dbi PCB Board Antenna.
