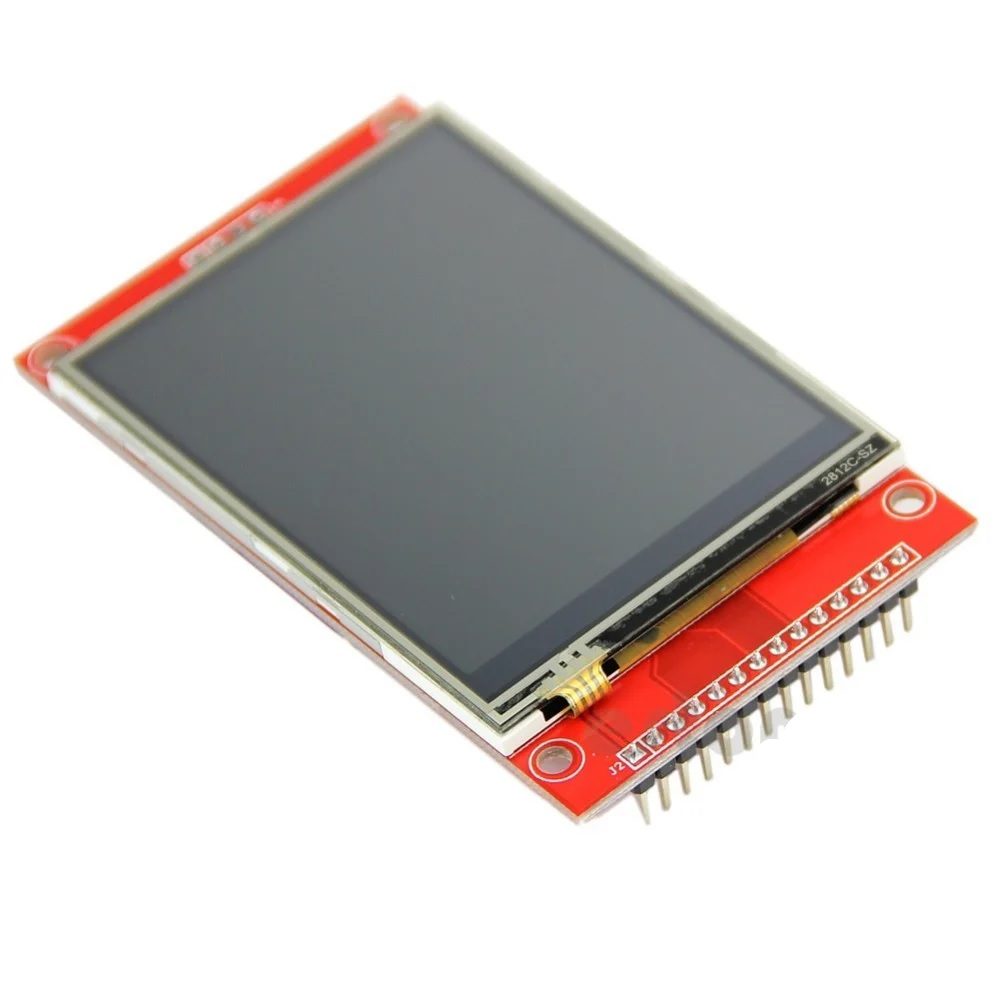

2.8 inch SPI Touch Screen Module TFT Interface 240×320 pixels with Touch

2.8 inch SPI Touch Screen Module TFT Interface 240×320 display is big (2.8″ diagonal) bright and colorful! 240×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display.

As a bonus, this TFT module has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.

The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode. In addition, 4 pins are required for the touchscreen (2 digital, 2 analogs).

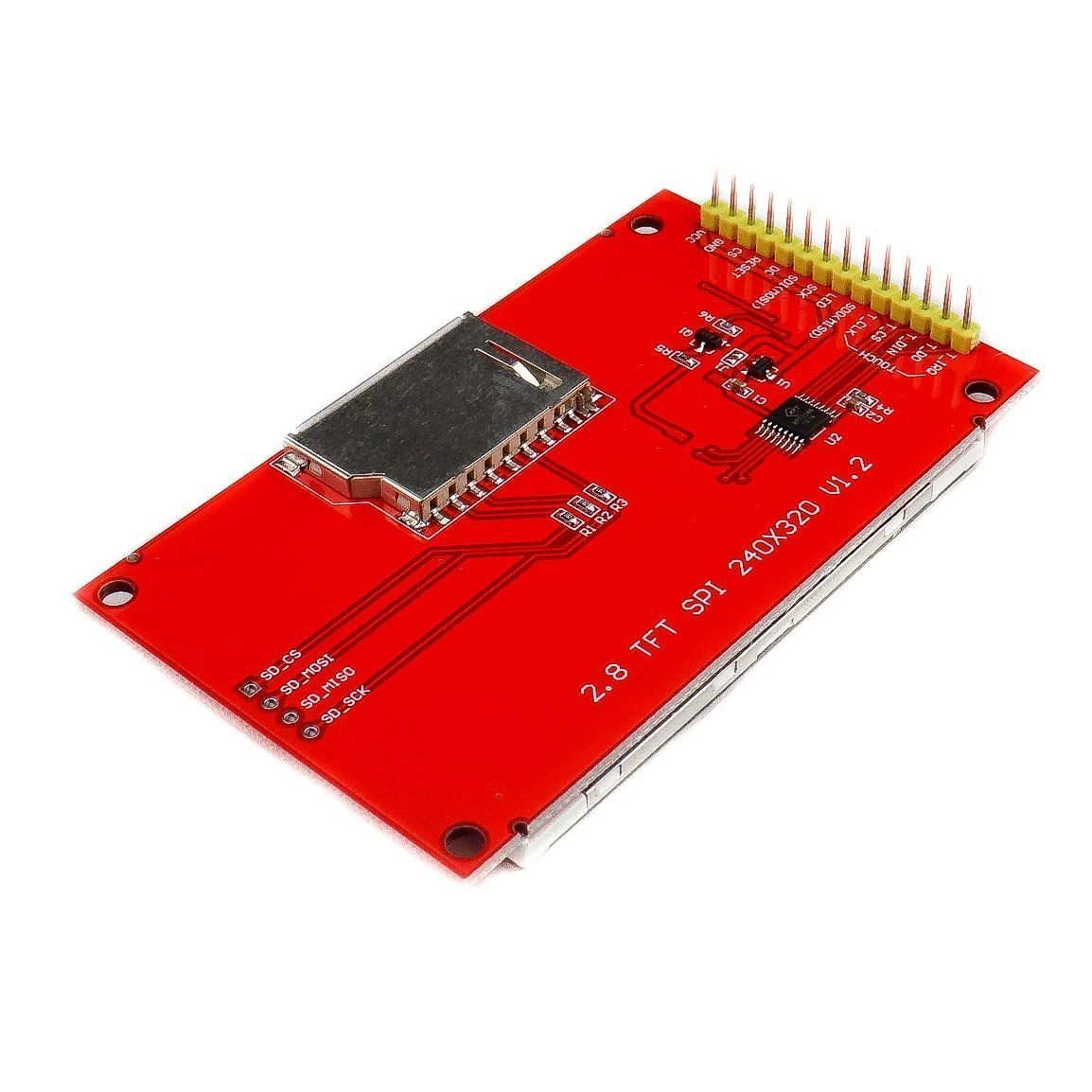

This 2.8 inch TFT Display is wrapped up into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you’re going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images.

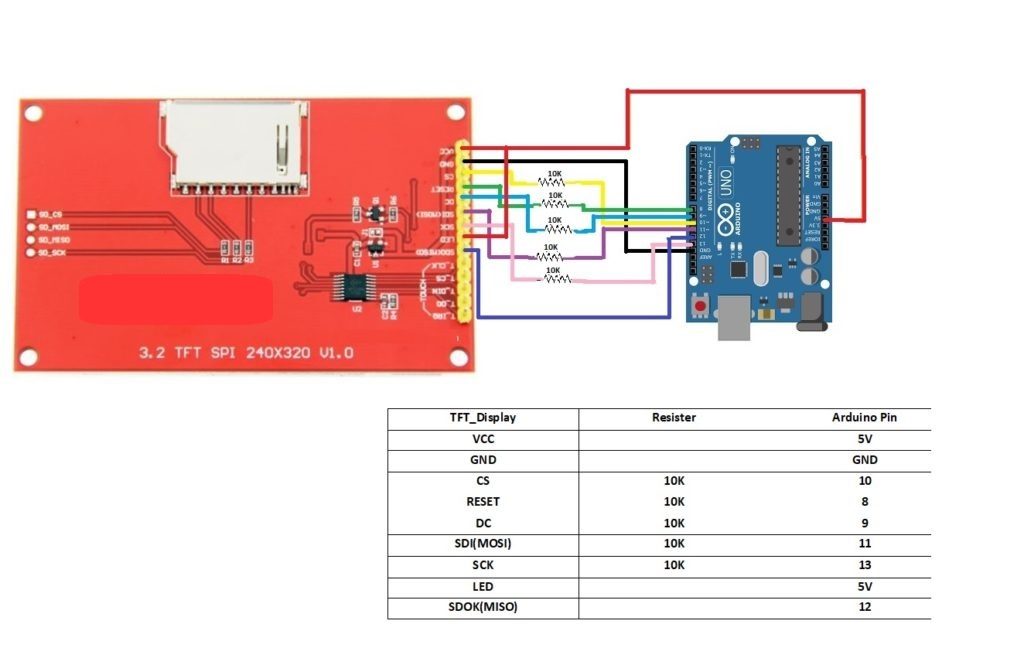

The 2.8-inch display doesn’t have a built-in level shifter, so it’s advised to use only 3.3v. Using a node MCU would be more suitable cause it provides only 3.3v. if you are using a 5v microcontroller like the Arduino UNO, MEGA, Using a level shifter would give you the appropriate voltage needed to operate the LCD without damaging it.

This TFT module has an ILI9341 / ST7789 driver, adafruit has this library. this library can be downloaded directly from Arduino ide, while using the node MCU you will just have to change the pin configurations in the code.

Features :

• It shows the color depth of 262K/65K.
• Need at least 4 IOs from your MCU
• The display has a wide viewing angle.
• Big display with good resolution.

Specifications:

• Display Color: RGB 65K color
• Screen Size : 2.8(inch)
• Type: TFT
• Driver IC: ILI9341 / ST7789
• Resolution: 320*240 (Pixel)
• Module Interface: 4-wire SPI interface
• Active Area (AA area): 43.2×57.6(mm)

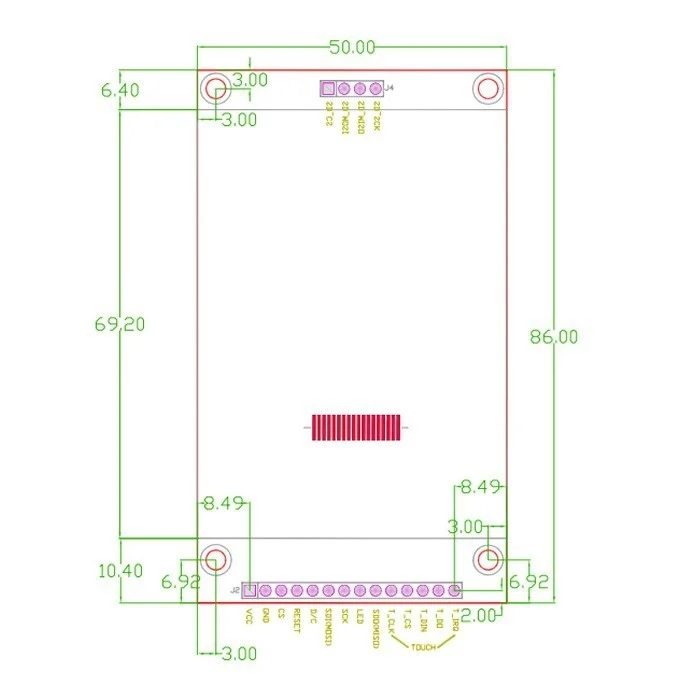

• Module PCB Size: 50.0×86.0(mm)
• Operating Temperature: -20℃~60℃
• Storage Temperature: -30℃~70℃
• VCC power voltage: 3.3V~5V
• Logic IO port voltage: 3.3V(TTL)
• Weight: 43(g)

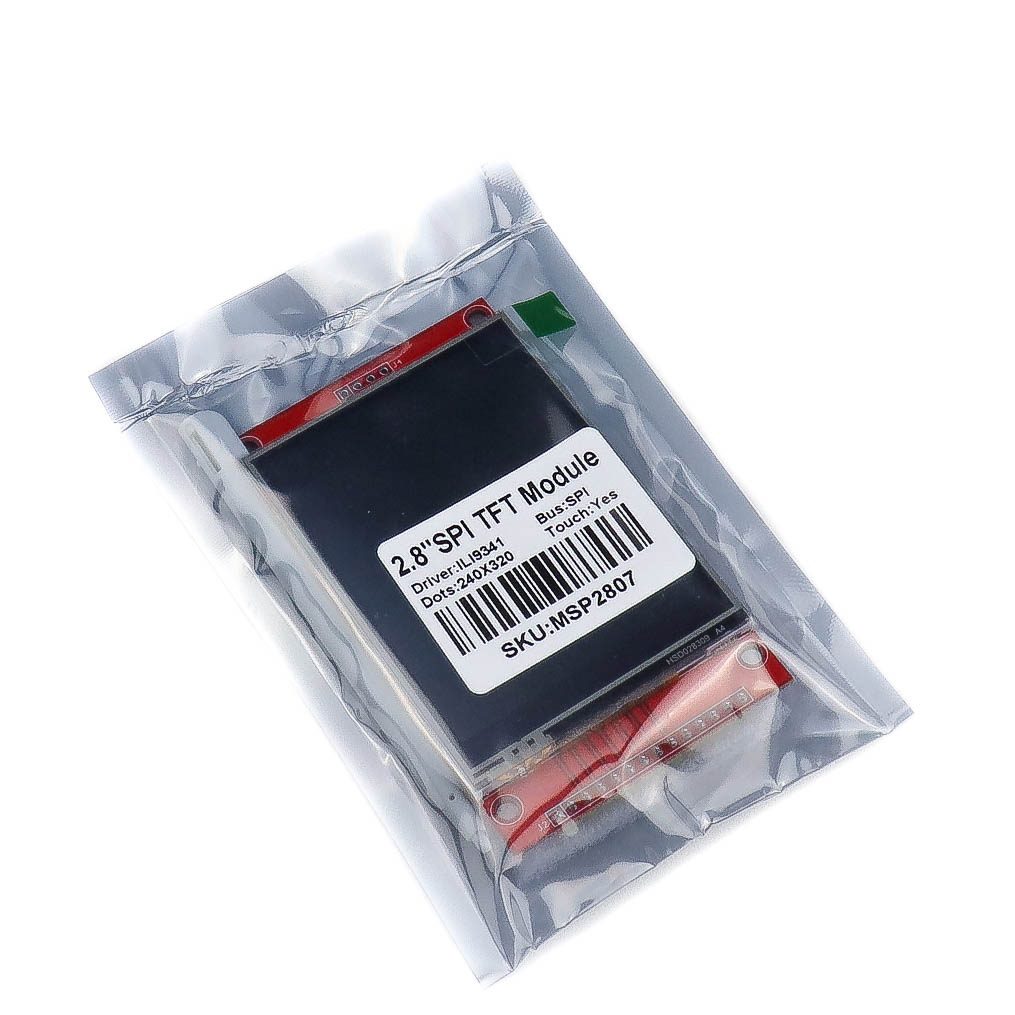

Package Includes:

• 1 x 2.8-inch Touch Screen SPI Display Module TFT Interface 240 x 320 pixels

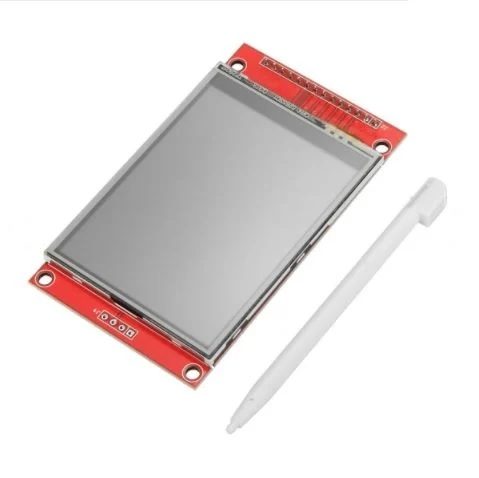

• 1 x Stylus Pen

Useful Link:

• 2.8inch SPI Module ILI9341 Datasheet | Sample Code
