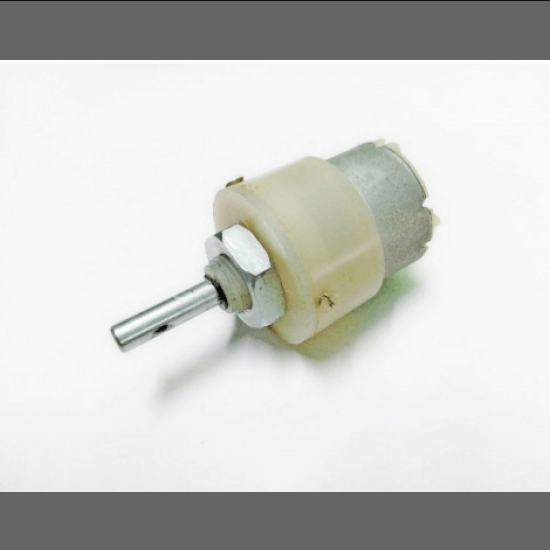

300 RPM 12V Center Shaft DC Gear Motor
memory Technical Parameters & Datasheet Summary
SKU: Anil616300RPM 12V DC Geared Motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gear box assembly.
These standard size DC Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with on-board voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.
This DC Motor – 300RPM – 12Volts can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.
300RPM 12V DC geared motors for robotics applications. Very easy to use and available in standard size.
Features:
- It comes with Good Quality Gears.
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 300 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
Specifications:
| Gear Material | Metal |
| Rated RPM | 300 |
| Operating Voltage(VDC) | 12 |
| Rated Torque(kg-cm) | 1.2 |
| Stall Torque(Kg-Cm) | 3.5 |
| Load Current(A) | 0.3 |
| No-Load Current | 60mA |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter(mm) | 32 |
| Motor Length(mm) | 75 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 22 |
| Weight (gm) | 80 |
Package Includes :
1 x 300 RPM 12V Center Shaft DC Gear Motor
