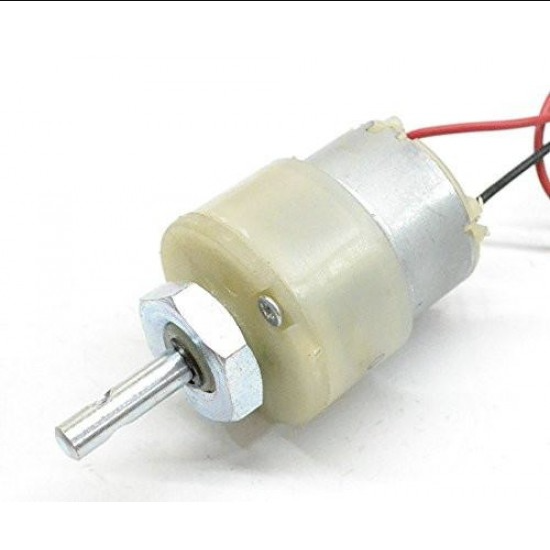

500 RPM 12V Center Shaft DC Gear Motor
memory Technical Parameters & Datasheet Summary
SKU: Anil617500 RPM 12V Center Shaft DC Gear Motor are usually applicable for robotics applications. Very easy to use and available in standard size. Nut and threads on shaft to easily connect and internal threaded shaft for easily connecting it to wheel. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The most popular L298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC or you can choose the most precise motor diver module from the wide range available in our Motor divers category as per your specific requirements.
500 RPM 12V Center Shaft DC Gear Motor are generally a simple DC motor with a gearbox attached to it. This can be used in all-terrain robots and applications like robotic race and wars. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.
Features:
- It comes with Good Quality Gears.
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 1000 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling.
Specifications:
| Gear Material | Metal |
| Rated RPM | 500 |
| Operating Voltage(VDC) | 12 |
| Rated Torque(kg-cm) | 0.75 |
| Stall Torque(Kg-Cm) | 3.5 |
| Load Current(A) | 0.3 |
| No-Load Current | 60mA |
| Gearbox Diameter (mm) | 36 |
| Motor Diameter(mm) | 32 |
| Motor Length(mm) | 75 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 22 |
| Weight (gm) | 90 |
Package Includes :
1 x 500 RPM 12V Center Shaft DC Gear Motor
