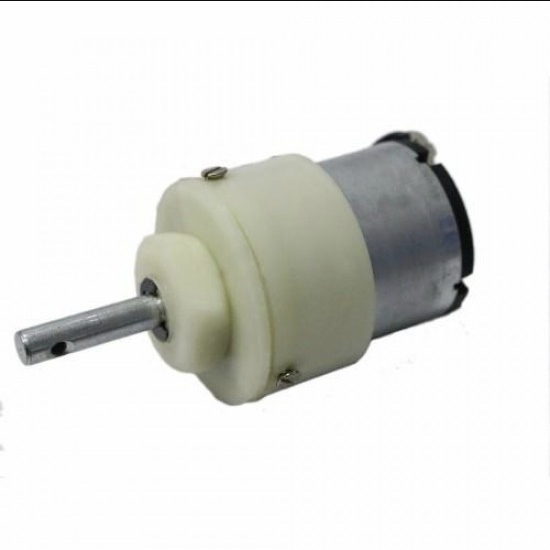

60 RPM 12V Center Shaft DC Gear Motor
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil61960 RPM Center Shaft DC Motor is high quality low cost DC geared motor used for robotic applications normally. Nut and threads on shaft are there to easily connect the motor to chassis or other fixture and internal threaded hole on shaft make easy for connecting it to wheel.
60 RPM 12V DC geared motors widely use for robotics applications. Very easy to use and available in standard size. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The most popular L298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC or you can choose the most precise motor diver module from the wide range available in our Motor divers category as per your specific requirements.
Features:
- The metal gears have better wear and tear properties.
- Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- Although motor gives 60 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
- The shaft has a hole for better coupling
Specifications
| Gear Material | Metal |
| Rated RPM | 60 |
| Operating Voltage(VDC) | 12 |
| Rated Torque(kg-cm) | 3.5 |
| Stall Torque(Kg-Cm) | 15 |
| Load Current(A) | 0.3 |
| No-Load Current | 60mA |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter(mm) | 32 |
| Motor Length(mm) | 75 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 22 |
| Weight (gm) | 90 |
Package Includes :
1 x 60 RPM 12V Center Shaft DC Gear Motor
