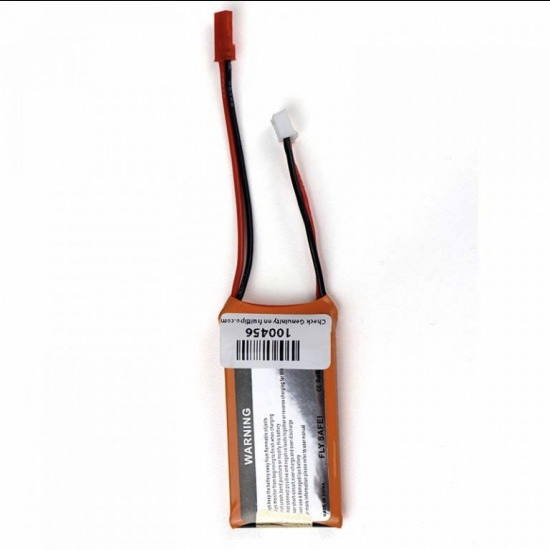

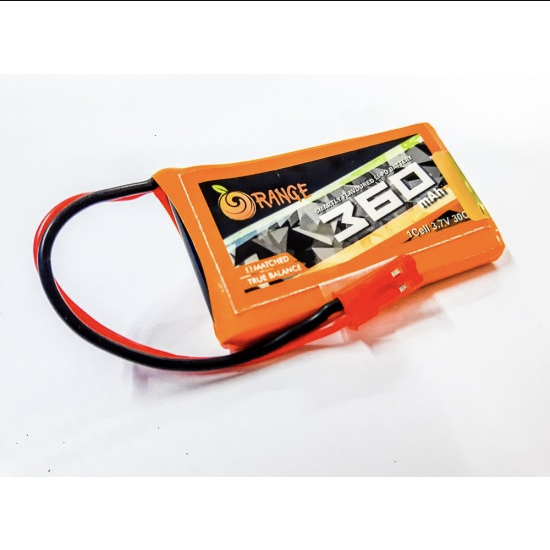

360 mAh 1S 30C/60C (3.7V) Orange Lithium Polymer Battery Pack (LiPo)
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil542This is a high-performance lightweight single cell lipo 360 mAh battery pack which you can be used to power microcontrollers, servo and other 0-7 V powered devices. We know, it is very hectic when our microcontroller’s battery discharges so fast and it takes a lot of time to charge. Here is the solution, this lipo battery pack takes less time to get fully charged than other normal batteries. As per its ‘c’ rating, you can charge this battery with maximum 1.08Amp current and minimum 0.36Amp current. and it can give up to 30Amp current to load without breakdown.
Orange 360 mAh 1S 30C/60C Lithium polymer battery Pack (LiPo) batteries are known for performance, reliability, and price. It’s no surprise to us that Orange Lithium polymer packs are the go-to pack for those in the know. Orange batteries deliver the full rated capacity at a price everyone can afford.
Orange 360 mAh 1S 30C/60C Lithium polymer battery Pack (LiPo) batteries are equipped with heavy duty discharge leads to minimize resistance and sustain high current loads. Orange batteries stand up to the punishing extremes of aerobatic flight and RC vehicles. Each pack is equipped with gold plated connectors. All Orange Lithium Polymer batteries packs are assembled using IR matched cells.
You won’t find a better deal than this in Lithium Polymer batteries anywhere!
Note: The battery dimensions and weight may have ±2% error.
Features :
- Product Type: Lithium Polymer Battery Pack
- The Orange LiPo battery has matched resistance.
- Good Temperature Control.
- Very Lightweight and Portable
- Low-cost High performance
- Good thermal efficiency
- Minimum weight in Class
Specifications:
|
Model No. |
ORANGE 360/1S-30C |
|
Capacity (mAh) |
360 |
|
Weight (gm) |
17 |
|
Output Voltage |
3.7V |
|
Charge Rate |
1-3 C (Recommended) |
|
Discharge Plug |
JST |
|
Length (mm) |
50 |
|
Width (mm) |
25 |
|
Height (mm) |
3 |
|
Max. Burst Discharge |
60C (10 Sec) |
|
Max. Charge Rate |
5 C |
|
Max. Continuous Discharge |
30C |
Precautions :
- Avoid over-charging or over-discharging the batteries.
- Do not put it beside the high-temperature condition.
- Don’t throw it into the fire or Water
- Do not squeeze this battery.
- Do not short its terminal.
Package Includes :
- 1 x Orange 360 mAh 1S 30C/60C Lithium polymer battery Pack (LiPo)
