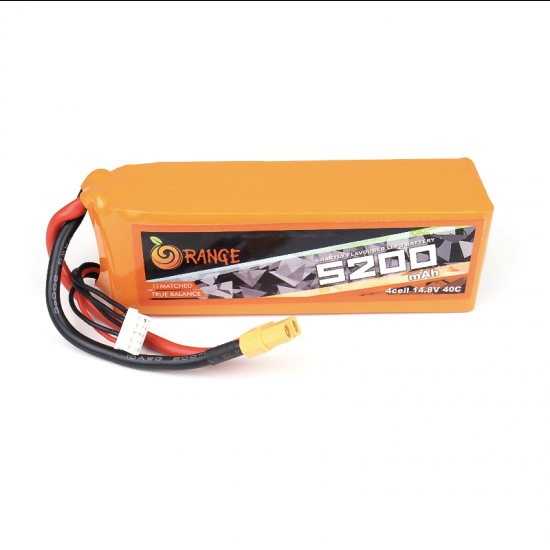

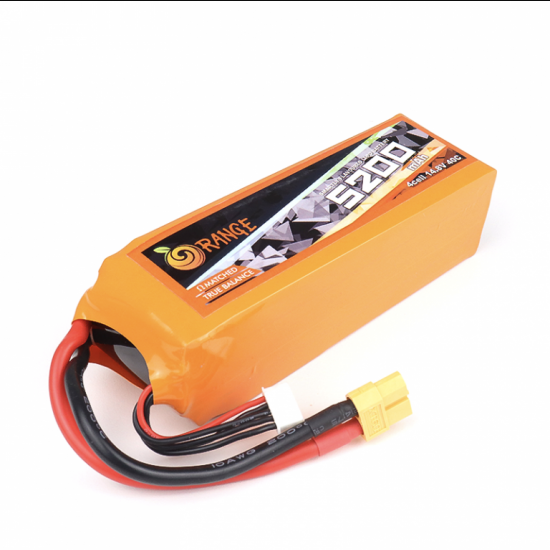

5200mAh 4S 40C (14.8V) Orange Lithium Polymer Battery Pack (LiPo)
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil545The 5200mAh 4S 40C (14.8V) Orange Lithium Polymer Battery Pack (LiPo) with XT60 connector is equipped with heavy-duty discharge leads to minimize resistance and sustain high current loads. The ORANGE 5200mAH 4S 40C (14.8V) LiPo battery pack with XT60 connector have a JST-XH style balance connectors. All Orange Lithium Polymer batteries packs are assembled using IR matched cells. Orange batteries are known for performance, reliability and optimum price also.
It is not surprising to us that Orange Lithium polymer packs are the go-to pack for those in the know. Orange batteries deliver the full rated capacity at a price everyone can afford. The ORANGE 5200mAH 4S 40C (14.8V) LiPo battery pack have a matched resistance and the true balance. These Orange batteries have a good temperature control after high rate discharge.
Note: The battery dimensions and weight may have ±2% error.
Precautions :
- Avoid over-charging or over-discharging the batteries.
- Do n0t put it beside the high-temperature condition.
- Don’t expose to direct fire or Water
Features :
- Product Type: Lithium Polymer Battery Pack
- The Orange LiPo battery has matched resistance.
- Good Temperature Control.
- Minimum weight in Class
Specifications:
|
Model No. |
ORANGE 42999/4S-40C |
|
Capacity (mAh) |
5200 |
|
Weight (gm) |
488 |
|
Output Voltage |
14.8 V |
|
Charge Rate |
1-3 C (Recommended) |
|
Discharge Plug |
XT-60 |
|
Balance Plug |
JST-XH |
|
Length (mm) |
137 |
|
Width (mm) |
44 |
|
Height (mm) |
40 |
|
Max. Burst Discharge |
50C (10 sec). |
|
Max. Charge Rate |
5 C |
|
Max. Continuous Discharge |
40C |
Package Includes :
- 1 x ORANGE 5200mAH 4S 40C (14.8V) LiPo battery pack with XT60 connector.
