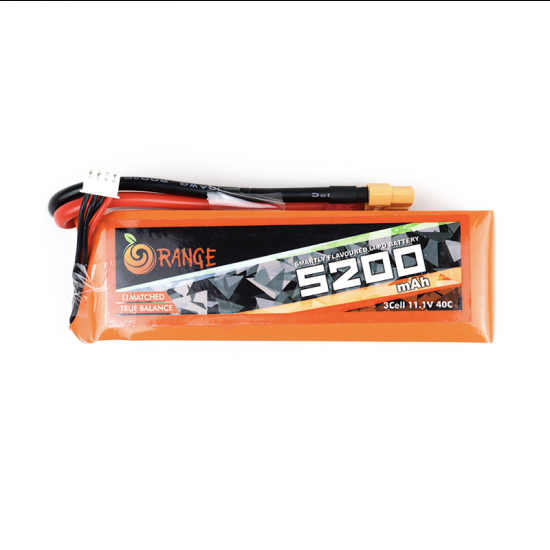

5200MAH 3S 40C/80C (11.1V) Orange Lithium Polymer Battery Pack (LiPo)
This component is currently unavailable. Enter your email below to be notified as soon as new stock arrives!
memory Technical Parameters & Datasheet Summary
SKU: Anil5445200MAH 3S 40C/80C Orange Lithium Polymer LiPo batteries are known for performance, reliability and price. These batteries are equipped with heavy duty discharge leads to minimize resistance and sustain high current loads. Orange batteries stand up to the punishing extremes of aerobatic flight and RC vehicles.
Each pack is equipped with gold plated connectors and JST-XH style balance connectors. All Orange Lithium Polymer batteries packs are assembled using IR matched cells. Orange batteries deliver the full rated capacity at a price everyone can afford.
Note: The battery dimensions and weight may have ±2% error.
Precautions :
- Avoid over-charging or over-discharging the batteries.
- Do not put it beside the high-temperature condition.
- Don’t throw it into the fire or Water
Features :
- Product Type: Lithium Polymer Battery Pack
- The Orange LiPo battery has matched resistance.
- Good Temperature Control.
- Minimum weight in Class
Specifications:
|
Model No. |
ORANGE 5200 / 3S-40 |
|
Capacity (mAh) |
5200 |
|
Weight (gm) |
360g |
|
Output Voltage |
11.1 V |
|
Charge Rate |
1-3 C (Recommended) |
|
Discharge Plug |
XT-60 |
|
Balance Plug |
JST-XH |
|
Length (mm) |
137 |
|
Width (mm) |
44 |
|
Height (mm) |
37 |
|
Max. Burst Discharge |
80C(416.0A) |
|
Max. Charge Rate |
5 C |
|
Max. Continuous Discharge |
40C(208.0A) |
Package Includes :
- 1 x 5200mAh 3S 40C/80C Lithium polymer battery Pack (LiPo)
