4.3 inch TFT Display 800×480 RGB SPI ST7262
LCD Display

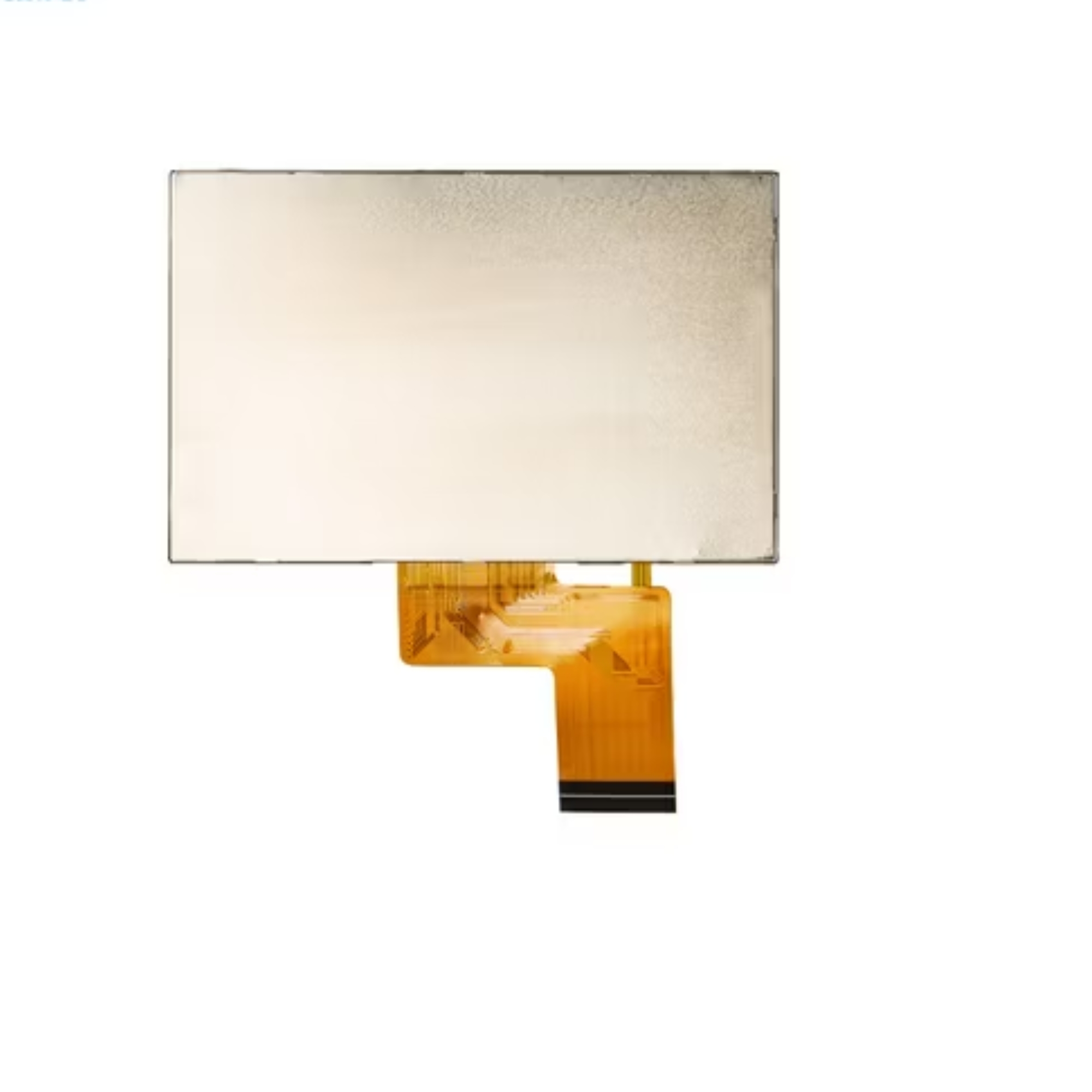

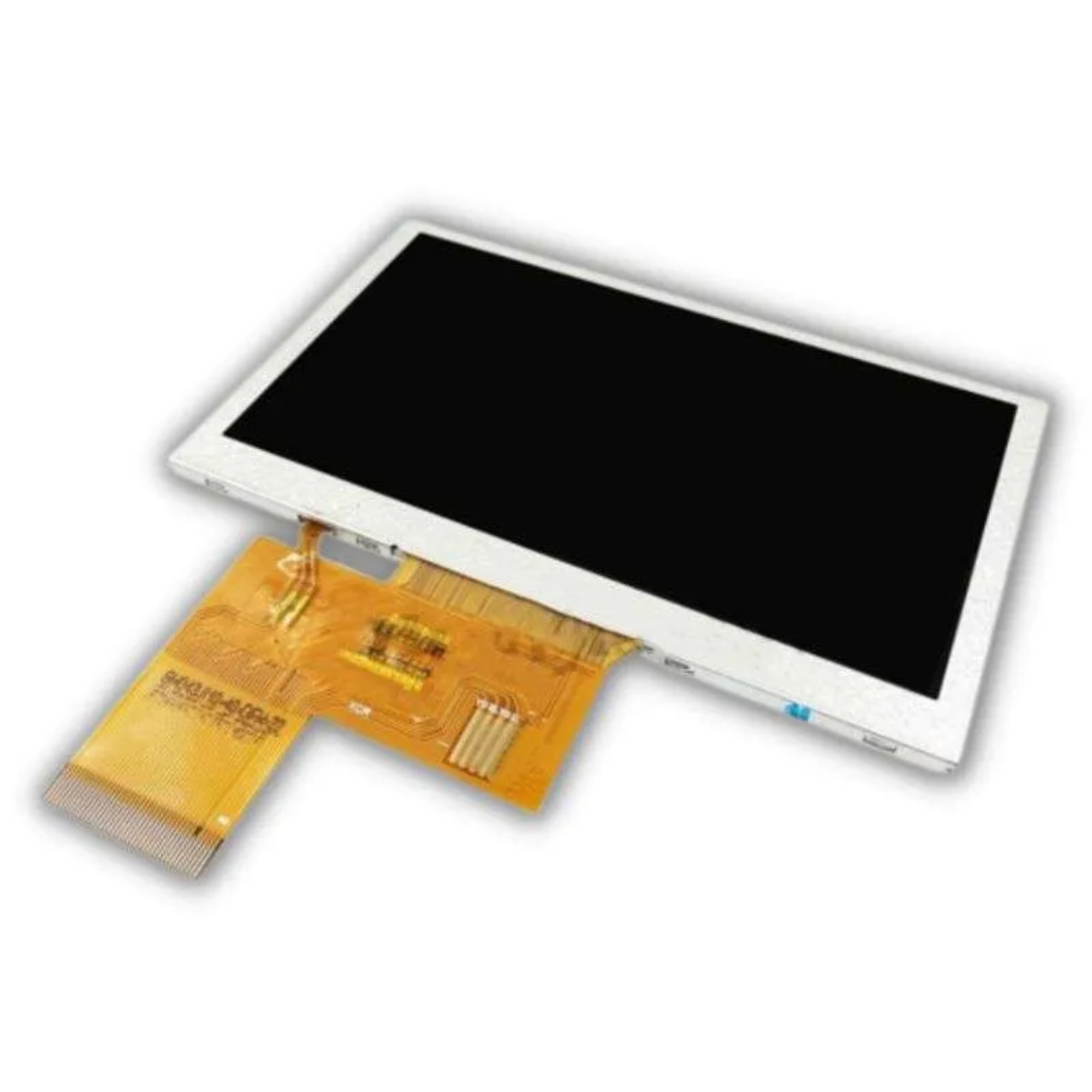

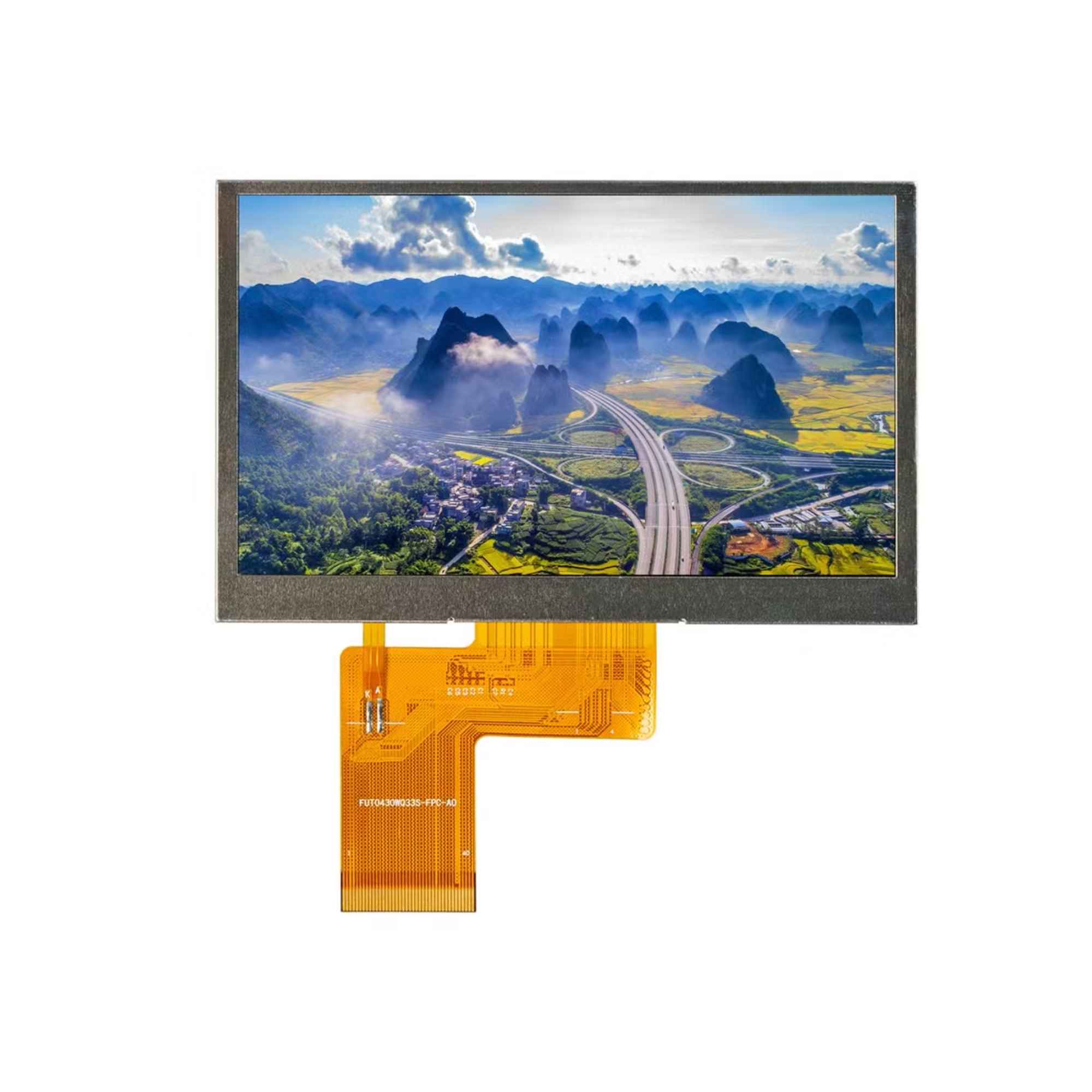

4.3 inch TFT Display 800×480 RGB SPI ST7262

star star star star star_half
112 rating
Just for you!
SKU: ANIL2501
MRP: Rs. 1,197.00
Rs. 997.50 (Incl. Tax)
Rs. 897.75 / pack of 1 = Rs. 897.75 per piece
Quantity

The 4.3 inch TFT Display 800×480 RGB SPI ST7262 is a high-performance display designed for clear and vibrant displays in compact form factors. With a native resolution of 800×480 pixels, it offers sharp image clarity and vibrant color reproduction. Its RGB interface ensures fast data transmission, making it ideal for both static and dynamic content. Engineered for reliability and versatility, this display is perfect for industrial, commercial, and consumer applications.

The 4.3 inch TFT Display is an ideal choice for developers and manufacturers seeking a reliable, compact, and high-quality display solution. Its versatile features, robust design, and cost-efficiency make it a top choice for various industries. Whether you’re designing a prototype or a mass-market product, this display offers the performance and reliability you need.

Features:

  • High Resolution: 800×480 pixels for clear, detailed visuals.
  • Compact Size: A 4.3-inch screen for easy integration into small devices.
  • RGB Interface: Supports rapid data transmission for seamless operation.
  • Wide Viewing Angle: Excellent visibility from different perspectives.
  • Color Accuracy: Enhanced color reproduction for vivid images.
  • Durable Design: Built to withstand harsh environments.
  • Energy Efficient: Optimized for low power consumption.

Specifications:

  • Display Type: 4.3 inch TFT Normally Black
  • Screen Size: 4.3 inches
  • Resolution: 800×480 pixels
  • Interface: RGB
  • Color : 16.7M
  • Brightness: 500cd/㎡
  • Viewing Angle: Full View
  • Driver IC : ST7262
  • Interface Types : RGB 24bit
  • Connection mode : 0.5mm plug-in 40Pin
  • Backlight mode : 5 strings of 2 and 10 lights
  • Power Consumption : Backlight 40mA@15V; LCD: [email protected]
  • Outline Dimension: 105.42 x 67.07 x 4.5 mm
  • Active Area Dimension : 95.04 x 53.86 mm

Pin Configuration:

Pin No. Symbol Description I/O
1 LED- Back light cathode Power supply
2 LED+ Back light anode Power supply
3 GND Power Ground Power supply
4 VDD Power supply 3.3V Power supply
5-12 R0-R7 Data bus I/O
13-20 G0-G7 Data bus I/O
21-28 B0-B7 Data bus I/O
29 GND Power Ground Power supply
30 DCLK Dot clock for RGB interface I
31 DISP Display enable I
32 HSYNC Horizontal (Line) synchronizing input signal for RGB interface I
33 VSYNC Vertical (Frame) synchronizing input signal for RGB interface I
34 DE Data enable signal for RGB interface I
35 NC NC
36 GND Power Ground Power supply
37 X1(XR) Touch panel XR O
38 Y1(YD) Touch panel YD O
39 X2(XL) Touch panel XL O
40 Y2(YU) Touch panel YU O

Applications

  • Industrial Automation: HMI panels, control systems, and instrumentation.
  • Consumer Electronics: Handheld devices, smart home systems, and portable displays.
  • Medical Devices: Diagnostic equipment and monitoring displays.
  • Automotive: Dashboard interfaces, rear-view camera systems.
  • IoT Projects: Smart controllers and connected devices.
  • Gaming Devices: Portable gaming consoles and retro setups.

Package Includes:

  • 1 x 4.3 inch Display SPI ST7262
