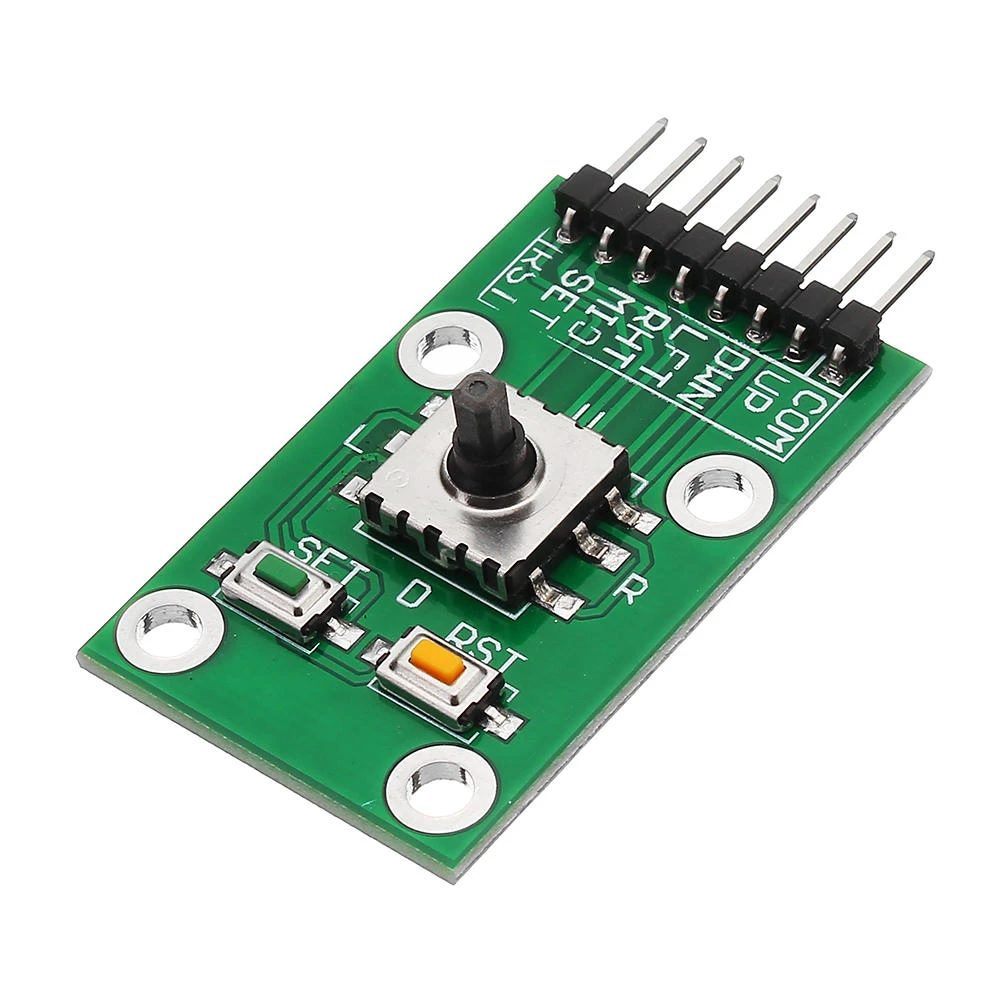

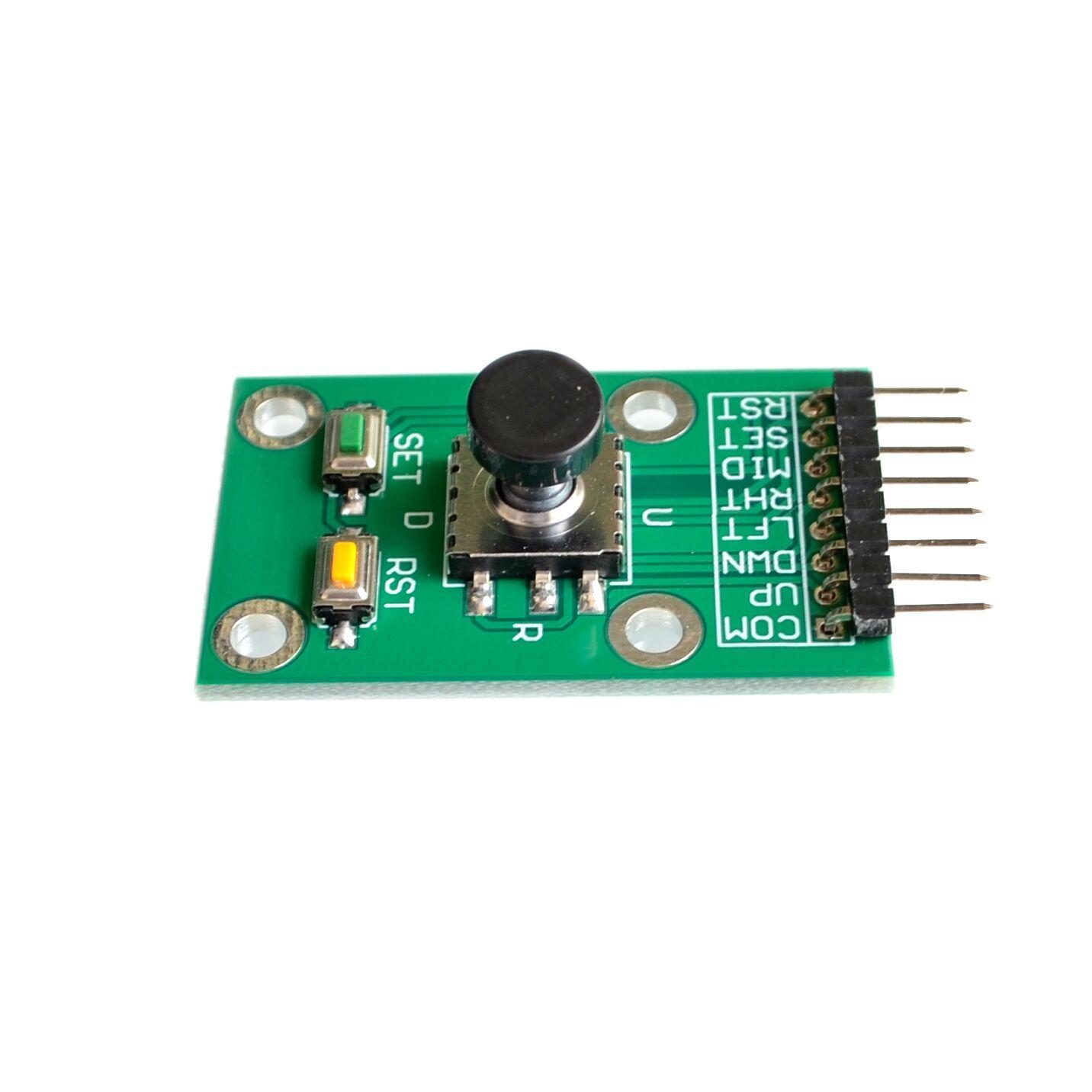

5D Rocker Joystick for Arduino MCU AVR Game

Do you need a 5D navigation button module?

Here we have 5D Rocker Joystick for Arduino MCU AVR Game Module  known as Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module.

Features:

• supports up/down/left/right/middle with extra set and reset button
• 2V-9V wide working voltage
• 7 IO port pinout compatible for most MCU development board

Specifications:

• Operating Voltage (VDC): 2 ~ 9
• Operating Temperature Range (°C): 40 to 85
• Length (mm): 40
• Width (mm): 25
• Height (mm): 12
• Weight (gm): 4

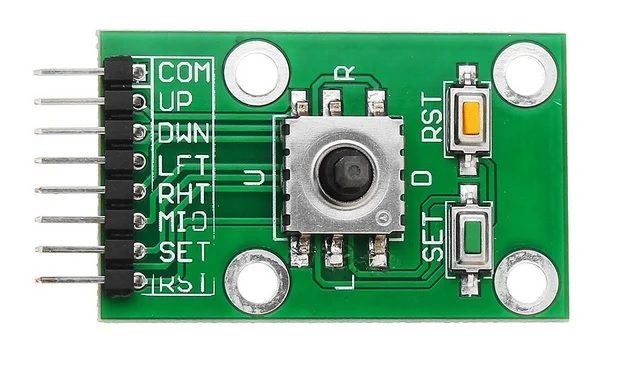

Pin Description:

• COM (Common end): VCC or GND connected to the MCU development board
• UP (Up direction button): Connect to IO pin of the MCU
• DWN (Down direction button): Connect to IO pin of the MCU
• LFT (Left direction button): Connect to IO pin of the MCU
• RHT (Right direction button): Connect to IO pin of the MCU
• MID (Middle direction button): Connect to IO pin of the MCU
• SET (Set button): Connect to IO pin of the MCU
• RST (Reset button): Connect to IO pin of the MCU

Package Includes:

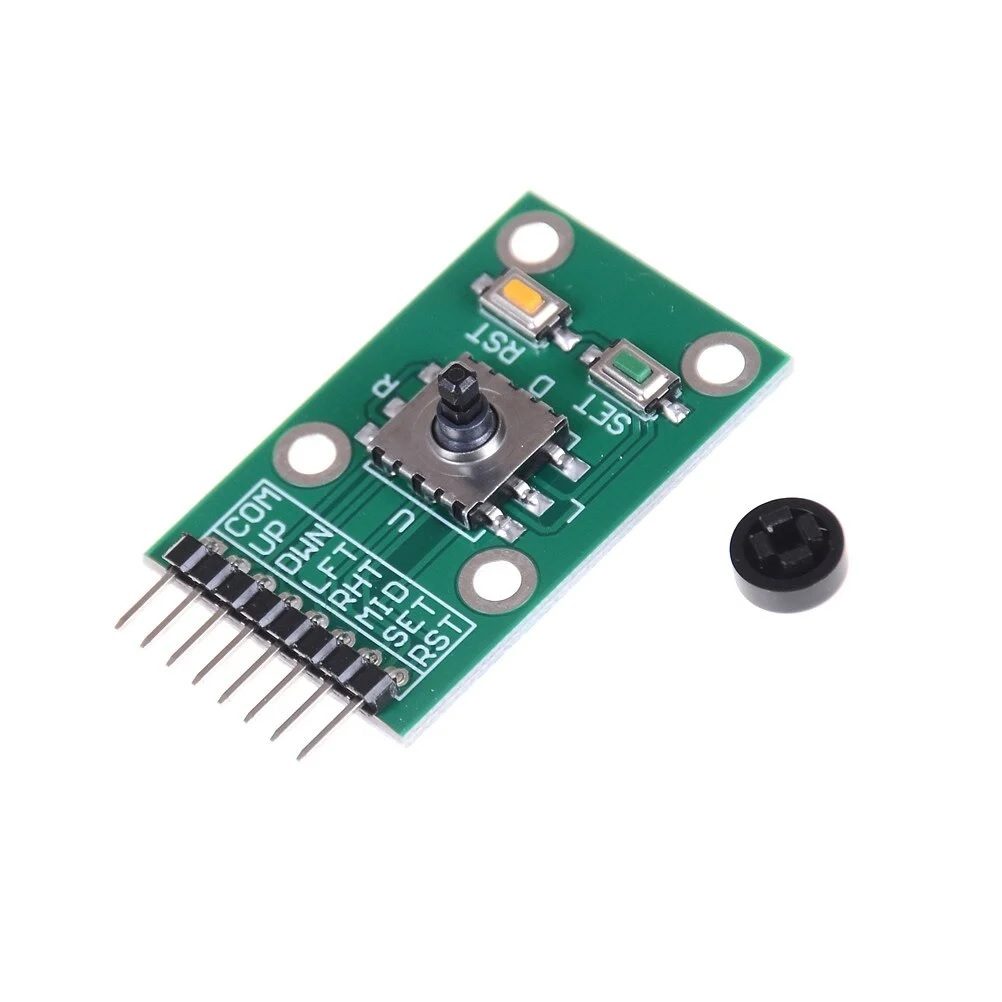

• 1 x Five Direction Navigation Button Module
