TDA7297 12V Stereo Noiseless Audio Power Amplifier Module with 2 x 15W Output

Audio Module / Amplifier Speaker

TDA7297 12V Stereo Noiseless Audio Power Amplifier Module with 2 x 15W Output

star star star star star_half

106 rating

Just for you!

SKU: ANIL2138

MRP: Rs. 283.50

Rs. 236.25 (Incl. Tax)

Rs. 212.63 / pack of 1 = Rs. 212.63 per piece

Quantity

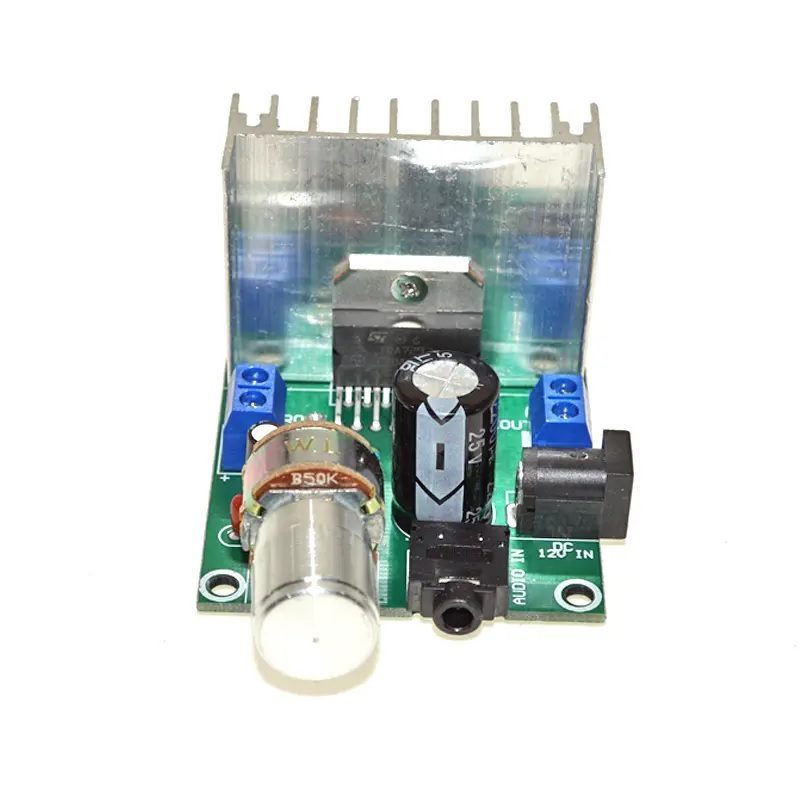

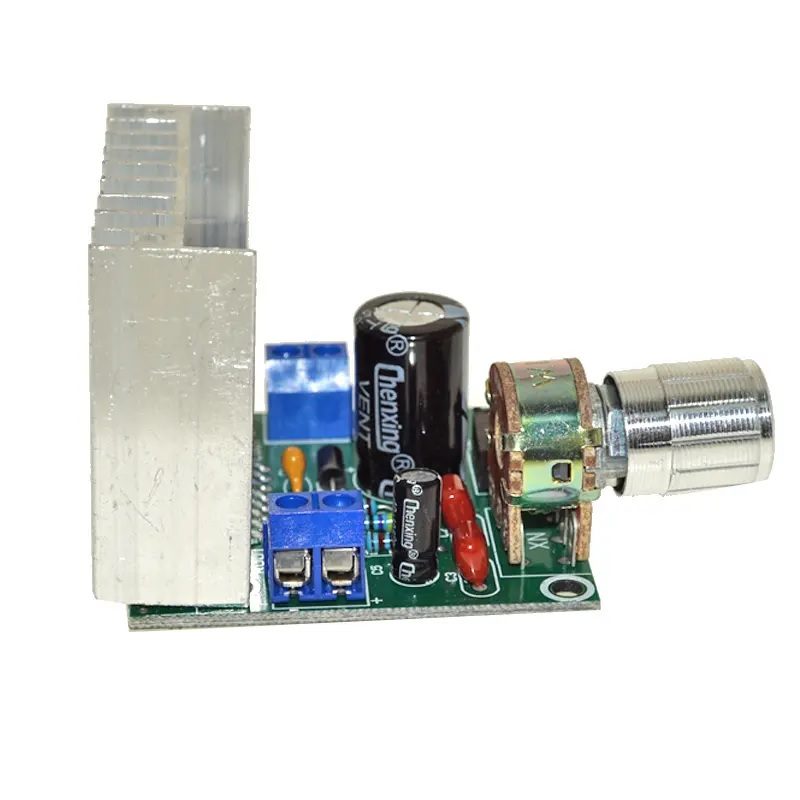

This is TDA7297 12V Stereo Noiseless Audio Power Amplifier Module with 2 x 15W Output. The module produces a power of 15W + 15W, peak up to 25W + 25W, can be accessed by two 4Ω ~ 8Ω, 10W ~ 50W speakers, a large volume of small size, high signal to noise ratio.

Features:

Can be accessed by two 4-8Ω 10-50W speakers
A large volume of small size
High signal to noise ratio
An upgraded version of the radiator, wider and thicker, better cooling effect
Fit for Bookshelf speakers, CRT televisions, radios, and other small amplifiers

Specifications:

Operating Voltage (VDC): 12
Output Power (W): 15 + 15
Output impedance: 4Ω ~ 8Ω
Current Consumption (A): 2 Max.
Length (mm): 55
Width (mm): 50
Height (mm): 45
Weight (gm): 50

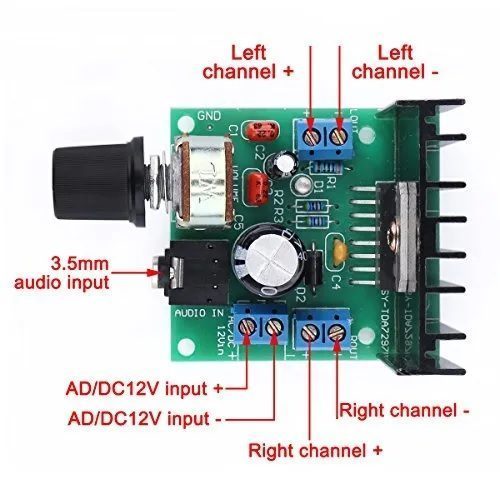

Connection Steps:

Connect to speakers:

Connect the two wires of the speakers to the audio output port of the power amplifier, the left channel speaker is connected to the LOUT port of the amplifier and the right channel speaker is connected to the ROUT port, the positive connects to “+”, the negative connects to “-“.

Connect to sound source:

Use an audio cable with an end of 3.5mm stereo headphone plug and plugin 3.5 stereo headphone jack of the amplifier. The other end of the audio cable is connected to the audio source (such as computers, mobile phones, MP3, DVD).

Connecting to the power supply:

Connect to the adapter of power supply:

Use the power supply in which the output is above DC12V3A. Connect the output cable of the adapter to the 12V port of the power amplifier board. The positive connects to “+” of the port while the negative connects to “-“.

Connect voltage converter:

Use the voltage converter in which the output is above AC12V3A. Connect the two output cables of the converter to the 12V port of the power amplifier board. Because the output of the converter is alternating current, it is not positive or negative.

Play music:

Plugin the power, the blue power indicator will light up which means that the power amplifier board starts working. You can adjust the volume knob according to their own preferences.

Package Includes:
