5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger 134N3P
grade
Be the first to review
SKU: Anil572
content_copy
Brand:
Generic / Other
MRP: ₹63.70
Save ₹34.70 (54% OFF)
₹29.00
(Incl. 18.00% GST)
Excl. GST: ₹24.58
In Stock (100 units ready to dispatch from Ahmedabad Hub)
receipt_long
GST Invoice with ITC Claim
inventory
Wholesale & Volume Pricing
Click tier to auto-select
1 – 4 pcs
₹29.00
Regular
5 – 9 pcs
₹27.55
Save 5%
10+ pcs
₹26.10
Save 10%
Qty
pin_drop
Check Delivery & Shipping SLA
Free Shipping > ₹2,000
local_shipping
Dispatches in 24h
From Ahmedabad Hub
verified
100% Genuine Part
Tested & Quality Checked
receipt_long
GST B2B Invoice
Input Tax Credit Eligible
support_agent
7-Day Support
Easy Defect Replacement
memory Technical Parameters & Datasheet Summary
SKU: Anil572
Component Title
5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger 134N3P
Part Number / SKU
Anil572
Brand / Manufacturer
Generic / Other
Category & Taxonomy
Battery Protection Module
Applicable GST Rate
18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)
Packaging Protection
Anti-Static Moisture Barrier Shielding Bag (ESD Protected)
Dispatch Hub
Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India
Datasheet & Queries?
chat
Ask an Application Engineer on WhatsApp

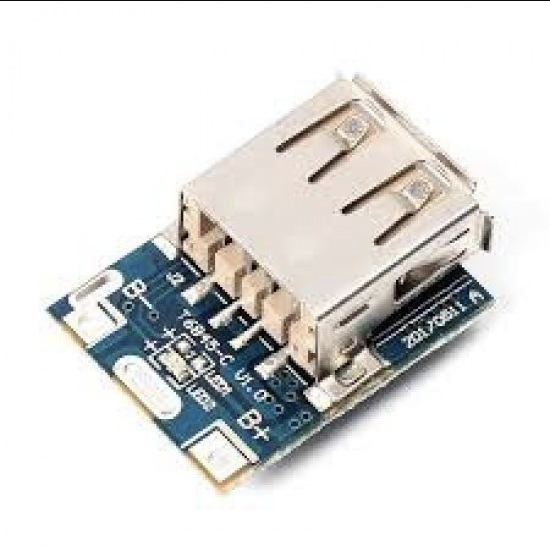

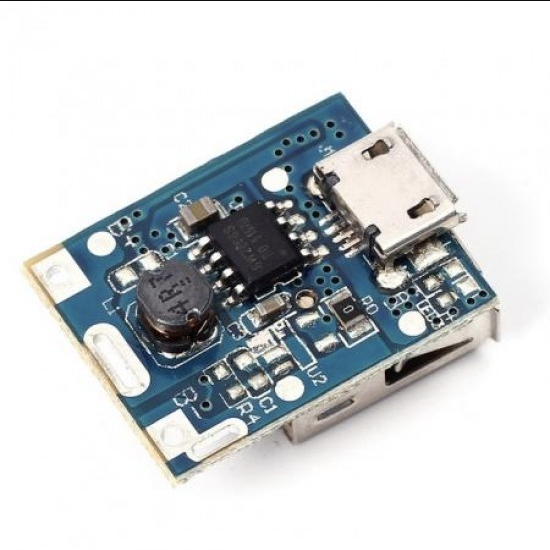

5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger 134N3P
5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger 134N3P is a Lithium Battery Charging Protection Board and Boost Converter LED Display USB for DIY Charger 134N3P. High-Quality USB iron with Cheap display port video card and Integrated Circuits
Features:
- Charging and discharging indication
- Internally installed charging and discharging power MOS
- Preset 4.2V charging voltage, precision ±1%
- Max 8uA standby current
- Integration charging management and discharging management
- Intelligent temperature control and over temperature protection
- Integration output over voltage protection, short circuit protection, overload protection
- Integration overcharging and over discharging protection
- Support trickle mode and zero voltage charging
- When charging :red light flashing;
- Full charged :red light light for a long time.
Specifications:
- Input Voltage: 3.7V~5.5V
- Charging Current: 1A (max)
- Output Current: 1A(max)
- Output voltage:5V
- Dimensions: 23 x 18 x 10 mm (LxWxH)
- Weight: 3 gm
- BAT Discharging Stop Voltage: 2.9V
- Discharging Efficiency: 85% (input 3.7V output 5V/1A)
Package included:
- 1 x 5V Step-Up Power Module Lithium Battery Charging Protection Board
