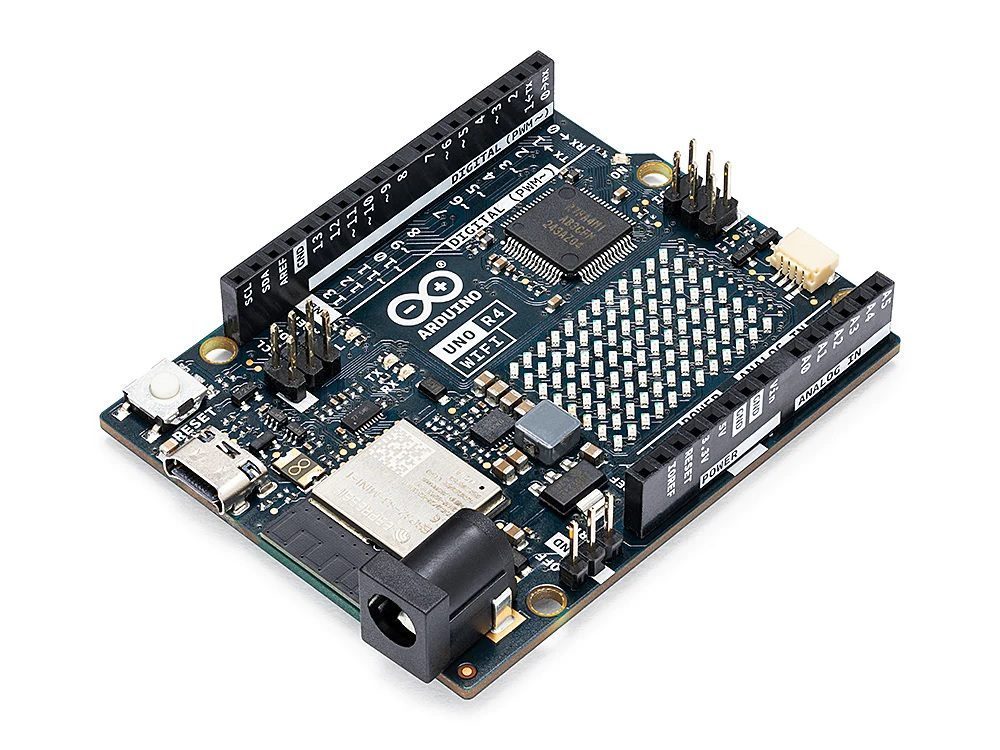

Arduino UNO R4 WiFi

Techtonics is an authorized distributor of Arduino Products and introducing you the most latest addition to the Arduino lineup, the Arduino UNO R4 WiFi board. The Arduino UNO R4 WiFi merges the RA4M1 microprocessor from Renesas with the ESP32-S3 from Espressif, creating an all-in-one tool for makers with enhanced processing power and a diverse array of new peripherals. With its built-in Wi-Fi® and Bluetooth® capabilities, the UNO R4 WiFi enables makers to venture into boundless creative possibilities. Furthermore, this versatile board boasts a convenient on-board 12×8 LED matrix and a Qwiic connector, offering ample space for innovation and unleashing creativity. This dynamic combination empowers makers to transform their ideas into reality and elevate their projects to unprecedented heights.

With the Uno R4 Wifi, you can easily upgrade your project and add wireless connectivity to expand the reach of your current setup. If this is your first project, this board has everything you need to spark your creativity.

Features:

• Hardware compatibility with UNO form factor: This board maintains the same form factor, pinout, and 5 V operating voltage as its predecessor, the UNO R3, ensuring a seamless transition for existing shields and projects.

• Expanded memory and faster clock: This board boasts increased memory and a faster clock speed, enabling more precise calculations and effortless handling of complex projects.
• Extra on-board peripherals: This board introduces a range of on-board peripherals, including a 12-bit DAC, CAN BUS, and OP AMP, providing expanded capabilities and design flexibility.
• Extended 24 V tolerance: This board supports a wider input voltage range, allowing seamless integration with motors, LED strips, and other actuators using a single power source.
• HID support: With built-in HID support, this board can simulate a mouse or keyboard when connected to a computer via USB, making it easy to send keystrokes and mouse movements.
• Wi-Fi® and Bluetooth®: This board hosts an ESP32-S3 module, enabling makers to add wireless connectivity to their projects. Combined with the Arduino IoT Cloud, makers can monitor and control their projects remotely.
• Qwiic connector: Features a Qwiic I2C connector, allowing easy connection to nodes from the extensive Qwiic ecosystem. Adapter cables also enable compatibility with sensors and actuators based on other connectors.
• Support for battery-powered RTC: This boards includes additional pins, including an “OFF” pin to turn off the board and a “VRTC” pin to keep the internal Real-Time Clock powered and running.
• LED matrix: The UNO R4 WiFi incorporates a bright 12×8 red LED matrix, ideal for creative projects with animations or plotting sensor data, eliminating the need for additional hardware.
• Diagnostics for runtime errors: The UNO R4 WiFi includes an error-catching mechanism that detects runtime crashes and provides detailed explanations and hints about the code line causing the crash.

Specifications:

• Board : Arduino® UNO R4 WiFi
• Microcontroller : Renesas RA4M1 (Arm® Cortex®-M4)
• USB-C® : Programming Port
• Digital I/O Pins : 14
• Analog input pins : 6
• DAC : 1
• PWM pins : 6
• UART : Yes, 1x
• I2C : Yes, 1x
• SPI : Yes, 1x
• CAN : Yes 1 CAN Bus
• Circuit operating voltage : 5 V (ESP32-S3 is 3.3 V)
• Input voltage (VIN) : 6-24 V
• DC Current per I/O Pin : 8 mA
• Main core : 48 MHz
• ESP32-S3 : up to 240 MHz
• RA4M1 : 256 kB Flash, 32 kB RAM
• ESP32-S3 : 384 kB ROM, 512 kB SRAM
• Width : 68.85 mm
• Length : 53.34 mm


With all these features packed into the well-known UNO form factor, now is the perfect time to upgrade your project or embark on your maker journey. The UNO R4 WiFi offers unparalleled versatility and possibilities for makers of all levels.

Package Includes:

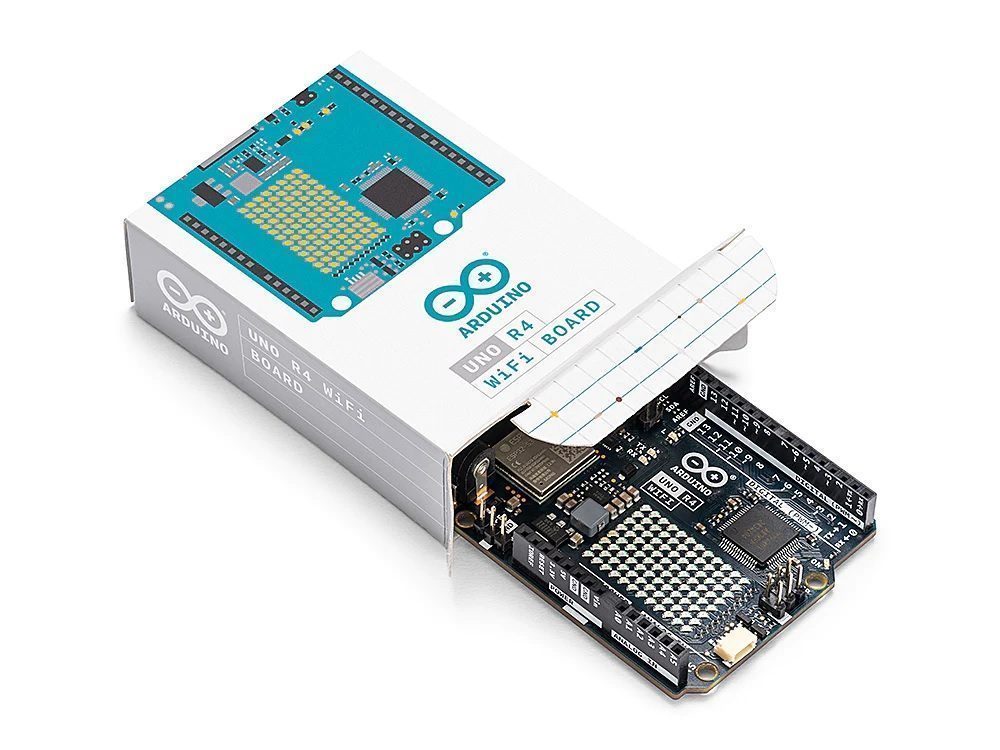

• 1 x Arduino UNO R4 WiFi

Useful Link :

• Arduino UNO R4 WiFi Documentation

Note:

• ESP header: the ESP32-S3 module on this board operates on 3.3 V. The ESP header located close to the USB-C® connector is 3.3V only and should not be connected to 5 V. This may damage your board.
• Qwiic connector: the Qwiic connector on this board is connected to a secondary I2C bus on this board, IIC0. This connector is 3.3 V only, connecting higher voltages may damage your board. To initialize this bus, use Wire1.begin() instead.
• Maximum current draw per pin: the UNO R4 series’ maximum current draw per GPIO is 8 mA, which is significantly lower than previous versions. Exceeding this limit may damage your pin / board.
